Overview

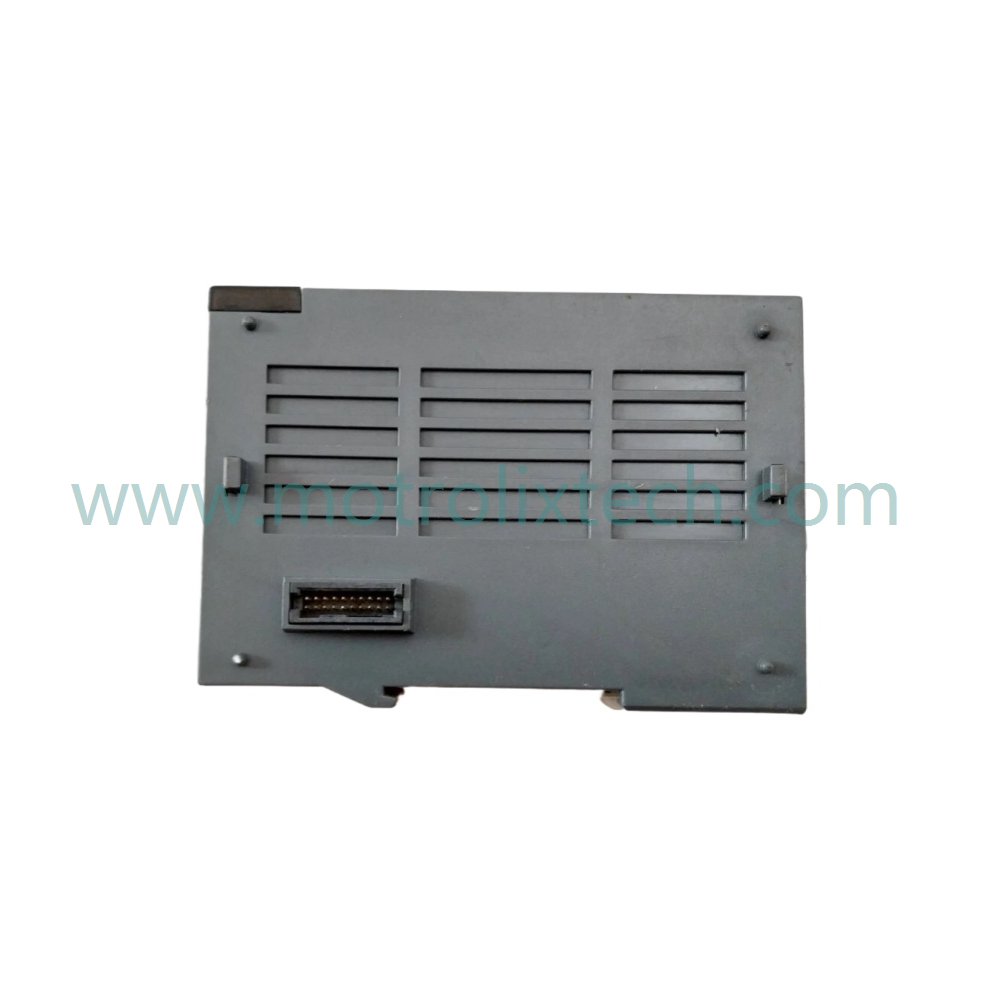

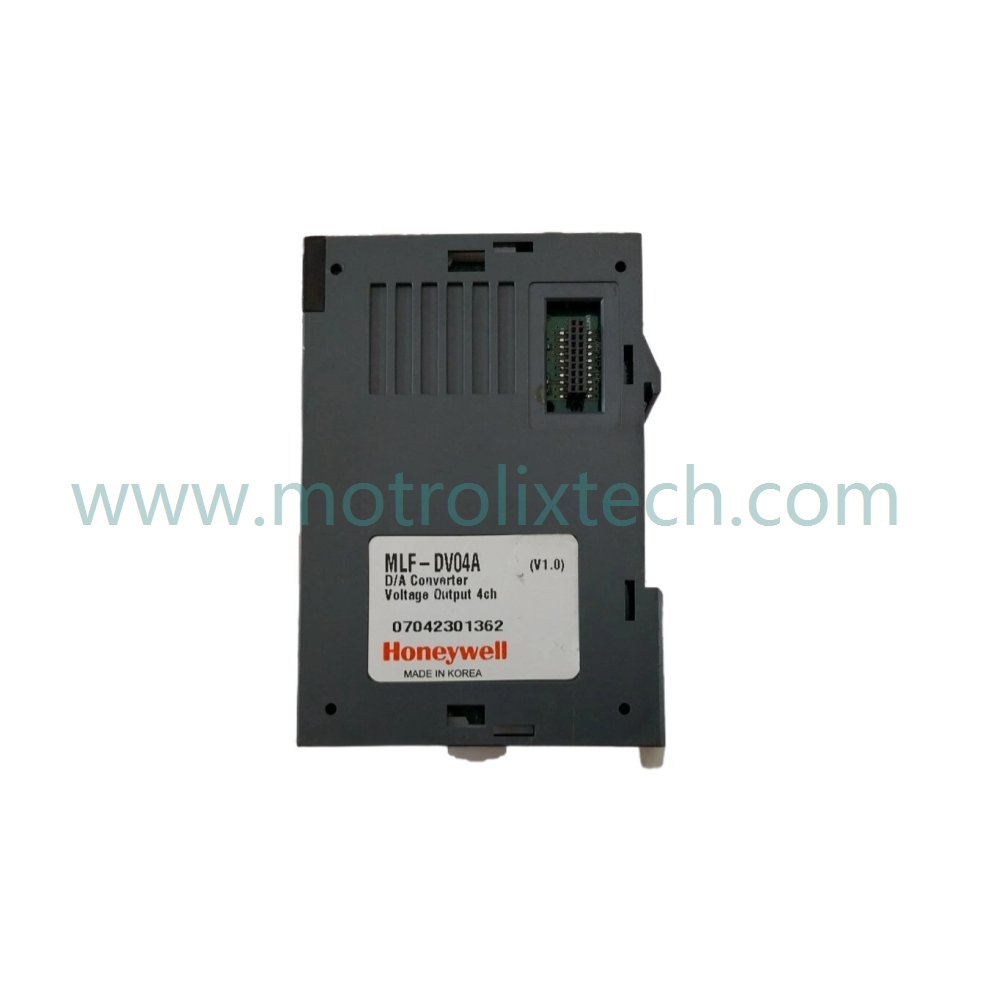

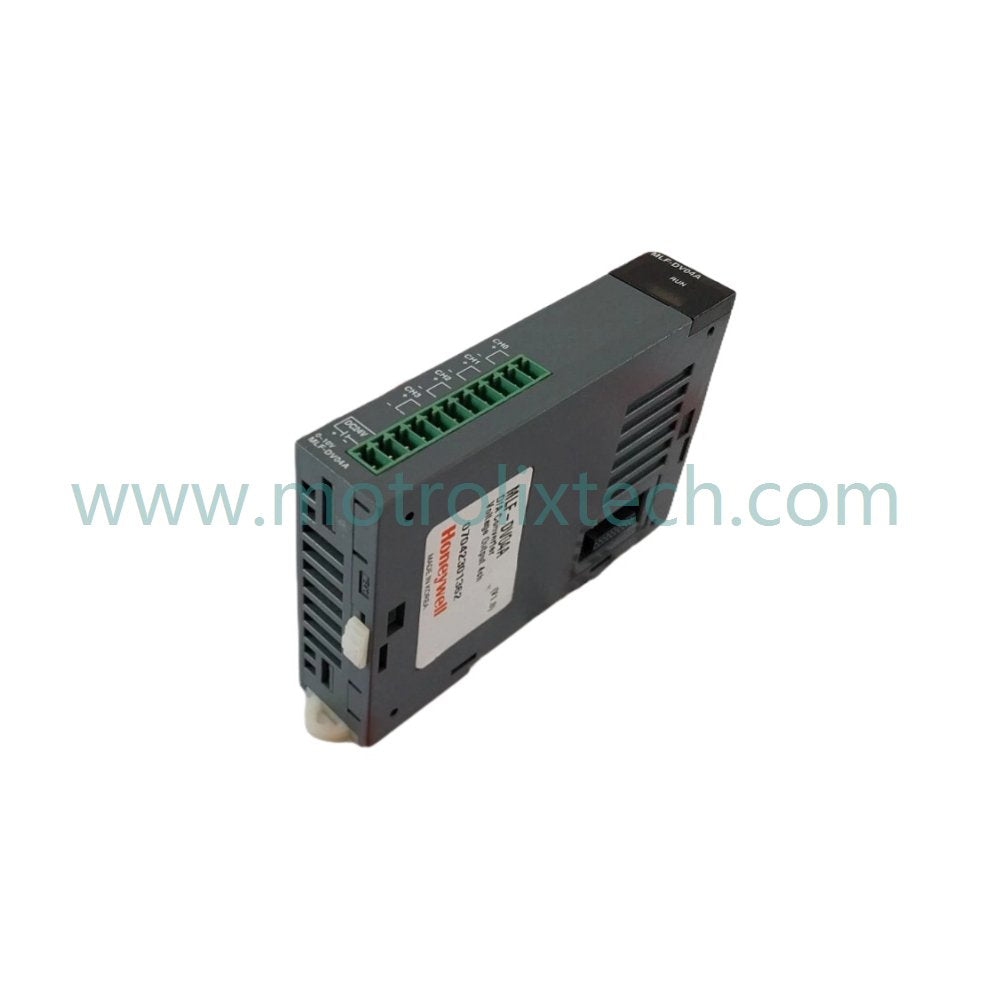

The Honeywell MLF-DV04A Analog Output Module is a high-performance, 4-channel module designed specifically for integration with Honeywell's MasterLogic-50 PLC systems. This module is ideal for providing precise DC voltage output signals, ranging from 0 to 10V, making it suitable for various industrial automation and control applications.
Functional Highlights
Key features of the Honeywell MLF-DV04A include:
-
Accurate Output Control: Each channel delivers precision analog control with a resolution of 2.5mV, enabling fine adjustments for sensitive processes.
-
Rapid Signal Updates: With a maximum conversion speed of 1.0 millisecond per channel, this module supports timely signal updates critical for real-time control applications.
-
Flexible Data Formats: Supports multiple data formats including unsigned values (0–4000), signed values (-2000–2000), and percentile representation (0–1000), catering to varied programming needs.
-
Robust Industrial Design: Built to endure harsh industrial conditions, ensuring reliable operation with an output accuracy of ±0.5%.
Key Benefits:
-
Space-Efficient Construction: Its compact design, weighing only 0.5 kg, optimizes panel space while delivering high performance.
-
Easy Configuration: The module is configured via Honeywell's Softmaster software, simplifying setup and integration with existing systems.
-
High Tolerance Levels: Offers maximum absolute input tolerance of DC ±15V, providing resilience against electrical noise and voltage fluctuations.
Technical Data
-
Model Number: MLF-DV04A
-
Module Type: Analog Output Module
-
Manufacturer: Honeywell
-
Condition: Brand New
-
Weight: 0.4 kg
-
Dimensions: 7 x 14 x 14.5 cm
-
HS CODE: 8537101190
-
Product Origin: USA
-
Lead Time: In Stock
-
Minimum Order Quantity (MOQ): 1
-
Number of Channels: 4
-
Output Range: 0 to 10V
-
Output Resolution: 1/4000 (2.5mV)
-
Conversion Speed: 1.0 ms per channel
-
Data Formats Supported: Unsigned (0-4000), Signed (-2000 to 2000), Percentile (0-1000)
-
Output Accuracy: ±0.5%
-
Input Tolerance: DC ±15V
Typical Applications
The Honeywell MLF-DV04A is suitable for:
- Advanced automation and process control applications requiring stable analog voltage outputs.
- Systems that demand high-speed control and precise signal generation for dynamic processes.
- Environments within manufacturing, water treatment, and energy sectors that require reliable performance under varying conditions.
Support & Maintenance
Honeywell offers comprehensive support for the MLF-DV04A module. Our expert team can assist with installation, configuration, and technical support, ensuring optimal performance and reliability in your automation processes.
FAQ
-
What is the weight of the Honeywell MLF-DV04A module?
The weight is 0.4 kg.
-
What are the dimensions of this analog output module?
Its dimensions are 7 x 14 x 14.5 cm.
-
How many channels does the module have?
It features four channels for analog output.
-
What is the output voltage range?
The output voltage range is from 0 to 10V.
-
What is the maximum conversion speed of this module?
It has a maximum conversion speed of 1.0 millisecond per channel.
