Description

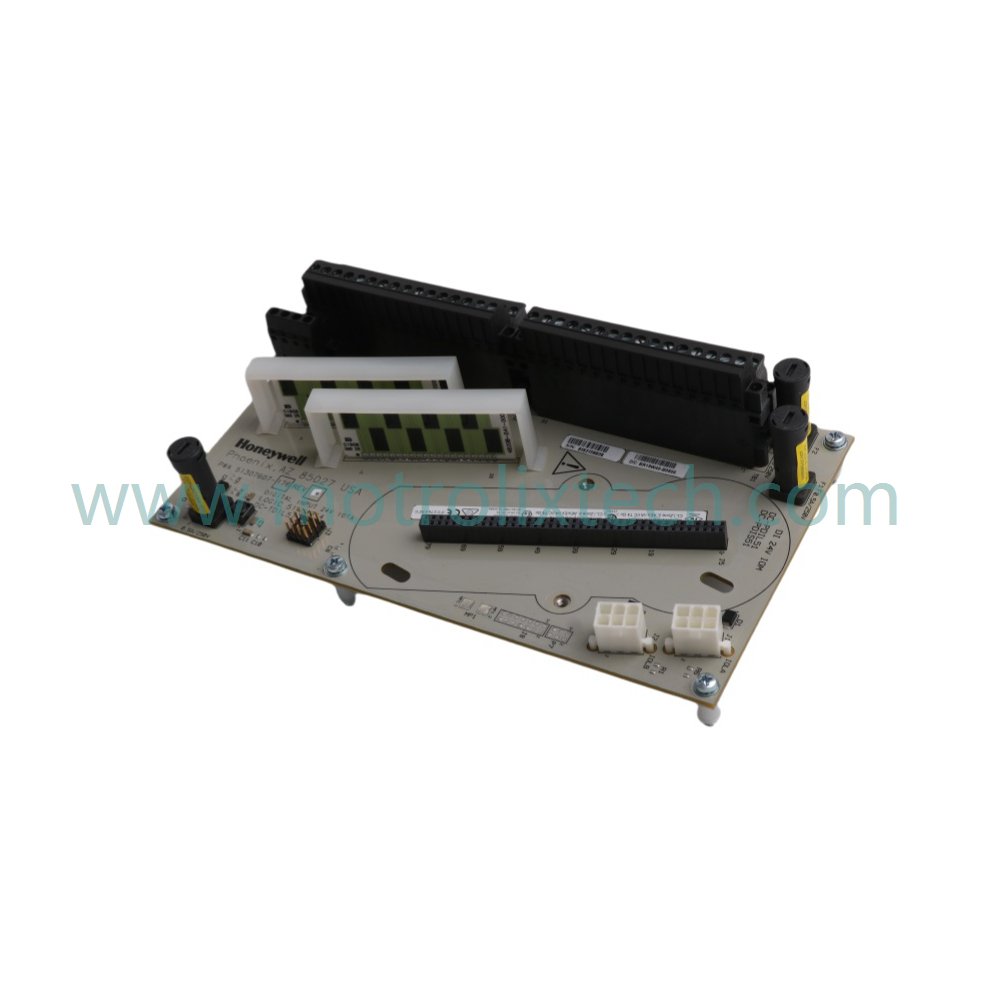

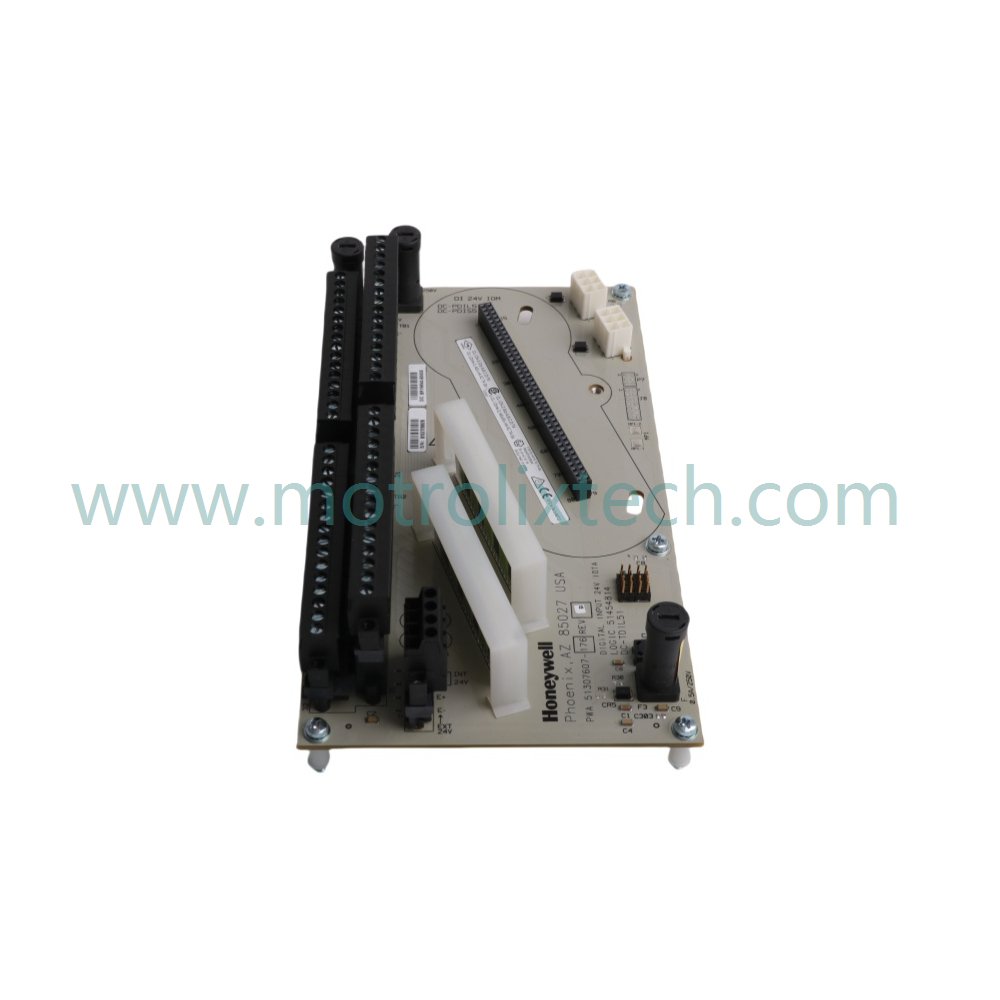

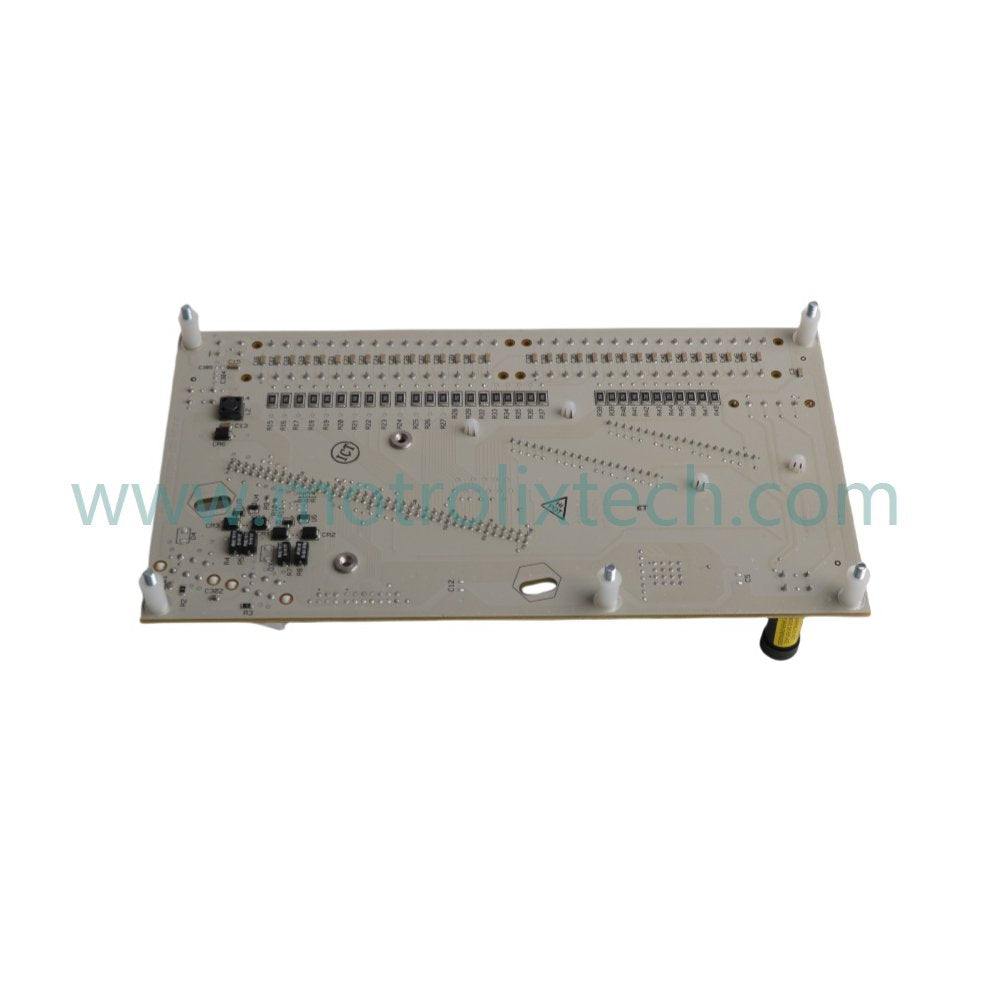

The Honeywell DC-TDIL61 Digital Input IOTA Redundant module is an advanced 32-channel device designed for demanding industrial automation applications. Ideal for use within Honeywell's Experion PKS Series C I/O system, it ensures accurate and reliable discrete signal monitoring while operating on 24V DC. With low power consumption and high isolation, this module enhances system performance in critical environments.
Functional Highlights
Key features of the Honeywell DC-TDIL61 include:
-
32 High-Density Input Channels: Each channel allows for efficient monitoring of digital signals, optimizing the use of cabinet space.
-
Robust Signal Integrity: The module features complete 1500 VAC isolation between DCS and field connections, ensuring maximum protection.
-
LED Status Indicators: Each channel is equipped with clear LED indicators for immediate diagnostics, enabling quick troubleshooting.
Key Benefits
-
Energy Efficient Design: Operating at just 1.32W, the DC-TDIL61 demonstrates impressive energy efficiency, consuming only 55mA at 24V DC.
-
Hot-Swappable Capability: The module can be replaced or maintained without shutting down the system, significantly enhancing plant uptime.
-
Wide Operating Temperature Range: This module excels in challenging environments, maintaining reliable performance from -20°C to +60°C.
Technical Data
-
Model Number: DC-TDIL61
-
Module Type: Digital Input IOTA Redundant
-
Manufacturer: Honeywell
-
Condition: Brand New
-
Weight: 0.38 kg
-
Dimensions: 29.4 cm x 12 cm x 17 cm
-
HS CODE: 8537101190
-
Product Origin: USA
-
Lead Time: In Stock
-
Minimum Order Quantity (MOQ): 1
-
Input Voltage: 24V DC
-
Number of Channels: 32
-
Current Consumption: 55 mA at 24V DC
-
Isolation Voltage: 1500 VAC
-
Connector Type: 37-pin DSUB connector
-
Mounting Type: DIN-rail
-
Environmental Protection: Built-in surge protection
Typical Applications
The Honeywell DC-TDIL61 is perfectly suited for:
- Oil and gas industries requiring robust signal monitoring and reliability.
- Power generation facilities needing redundant configurations to ensure system stability.
- Chemical processing plants where precise equipment status monitoring is critical for safety and efficiency.
Support & Maintenance
Honeywell provides full support for the DC-TDIL61 Digital Input IOTA Redundant module. Our expert team is available for assistance with installation, maintenance, and troubleshooting, ensuring optimal functionality in your industrial applications.
FAQ
-
What is the primary function of the Honeywell DC-TDIL61 module?
It serves as a digital input module for monitoring 32 discrete signals in industrial automation.
-
What type of isolation does this module provide?
The module offers 1500 VAC isolation between the DCS and field connections for enhanced safety.
-
Can this module be replaced without shutting down the system?
Yes, it features a hot-swappable design for maintenance without interruptions.
-
What is the operating temperature range?
The DC-TDIL61 operates reliably within -20°C to +60°C.
-
How is the module powered?
It operates on a 24V DC power supply and has low power consumption of just 1.32W.
