Overview

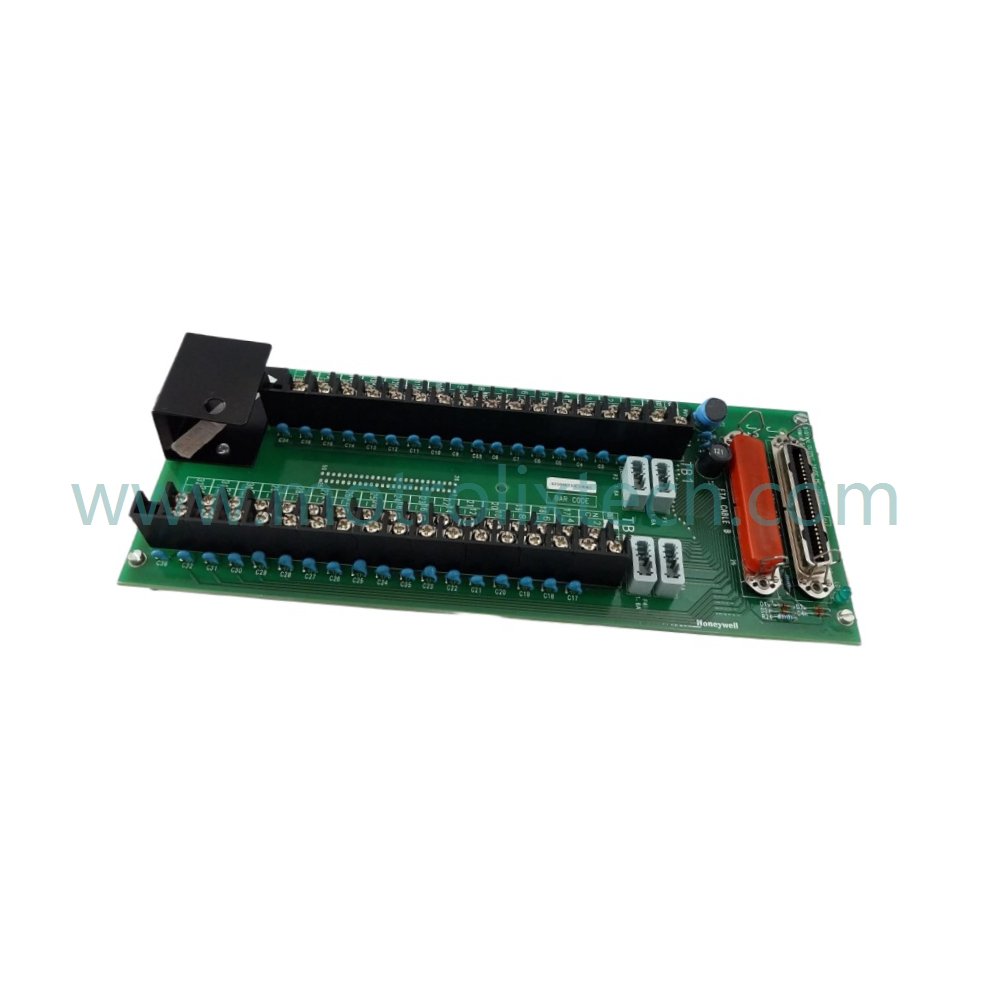

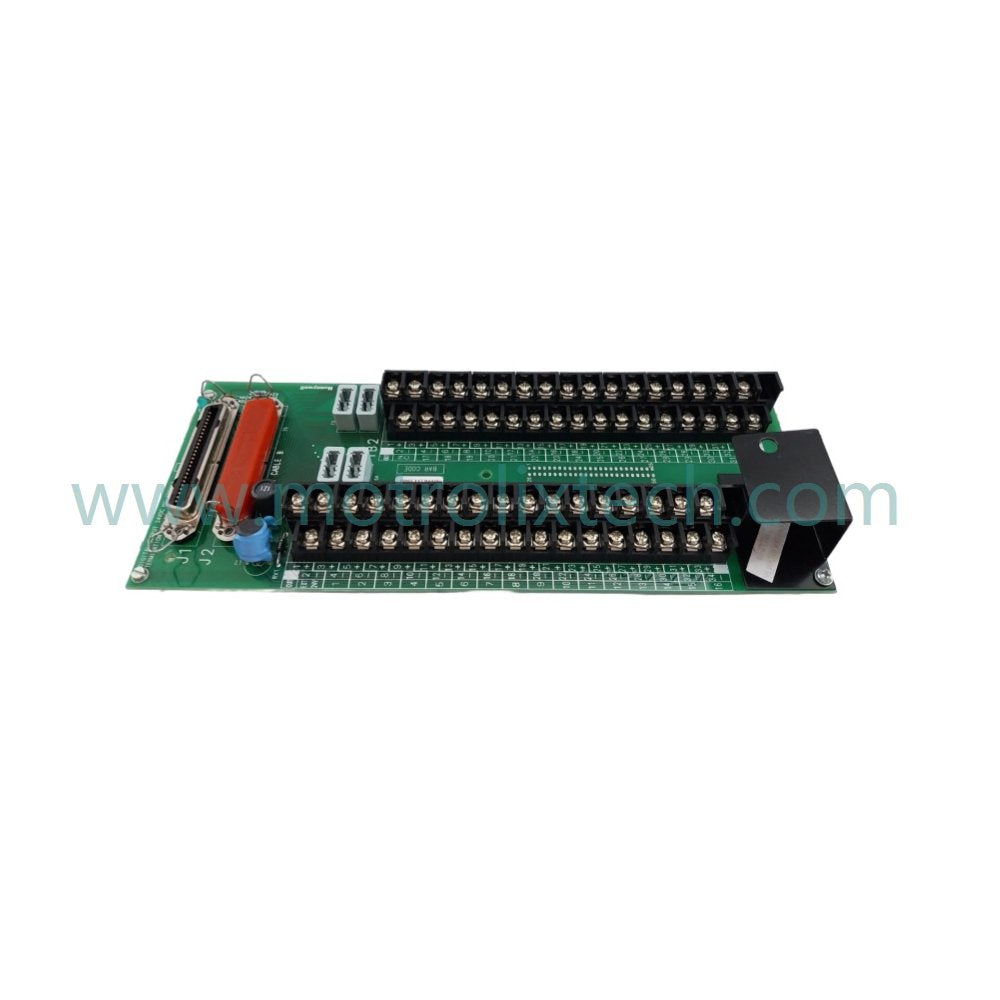

The Honeywell MC-TDOY62 51204156-175 Digital Output Card is an advanced solution for industrial automation, designed to provide reliable and precise control over various field devices such as actuators and valves. With a robust design and a high-density output structure, this module supports 32 open-collector output channels, making it ideal for diverse application requirements in manufacturing and process control.
Functional Highlights
Key features of the Honeywell MC-TDOY62 51204156-175 Digital Output Card include:
-
High Channel Density: Equipped with 32 output channels, it enhances flexibility in controlling multiple devices simultaneously.
-
Galvanic Isolation: Provides protection against voltage spikes and electrical noise, ensuring the safety of connected equipment.
-
Energy Efficiency: Maintains a low off-state leakage current of just 0.5 µA while ensuring swift operation with a maximum turn-on/turn-off time of 200 milliseconds.
-
Durable Design: Engineered to withstand industrial conditions, it operates efficiently within a load voltage range of 15–30 VDC, ensuring consistent performance.
Key Benefits
-
Compact and Lightweight: Weighing only 0.4 kg, the module easily integrates into existing control cabinets without consuming excessive space.
-
Responsive Control: The quick switching capability supports time-sensitive operations, making it suitable for various automation applications.
-
Versatile Applications: Ideal for manufacturing, process control, and machinery automation, enhancing system efficiency across diverse settings.
Technical Data
-
Model Number: MC-TDOY62 51204156-175
-
Module Type: Digital Output Card
-
Manufacturer: Honeywell
-
Condition: Brand New
-
Weight: 0.4 kg
-
Dimensions: 7 cm x 14 cm x 14.5 cm
-
HS CODE: 8537101190
-
Product Origin: USA
-
Lead Time: In Stock
-
Minimum Order Quantity (MOQ): 1
-
Output Channels: 32 Open-Collector Outputs
-
Load Voltage Range: 15–30 VDC
-
Galvanic Isolation: Up to 30 VAC or ±42.4 VDC
-
On-State Voltage (Max): 0.5 V at 0.5 A
-
Off-State Leakage Current: 0.5 µA
-
Turn-On/Turn-Off Time: Max 200 milliseconds
Typical Applications
The Honeywell MC-TDOY62 51204156-175 is suitable for:
- Controlling valves and actuators in manufacturing processes.
- Implementing efficient automation strategies in industrial settings.
- Enhancing performance in time-sensitive control applications in process control and machinery automation.
Support & Maintenance
Honeywell offers comprehensive support for the MC-TDOY62 51204156-175 Digital Output Card. Our knowledgeable team is available to assist with installation, configuration, and maintenance, ensuring optimal performance and operational efficiency.
FAQ
-
What is the primary function of the Honeywell MC-TDOY62 51204156-175?
It is designed to control actuators and valves within industrial automation environments.
-
How many output channels does this module have?
The module features 32 open-collector output channels for versatile control.
-
What is the load voltage range for this digital output card?
It operates efficiently within a voltage range of 15–30 VDC.
-
Does it provide protection against electrical noise?
Yes, it includes galvanic isolation to protect connected devices from voltage spikes and noise.
-
What are the dimensions of the product?
The Honeywell MC-TDOY62 51204156-175 measures 7 cm x 14 cm x 14.5 cm.
