Overview

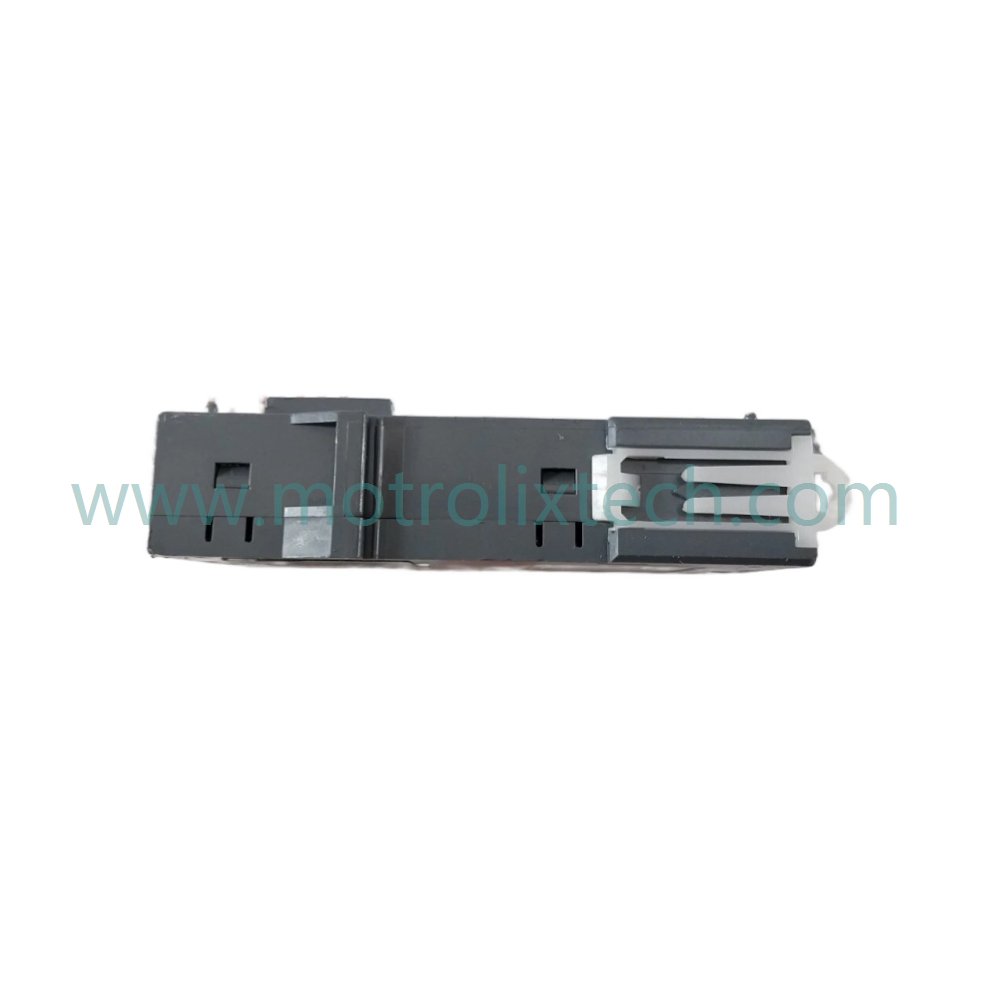

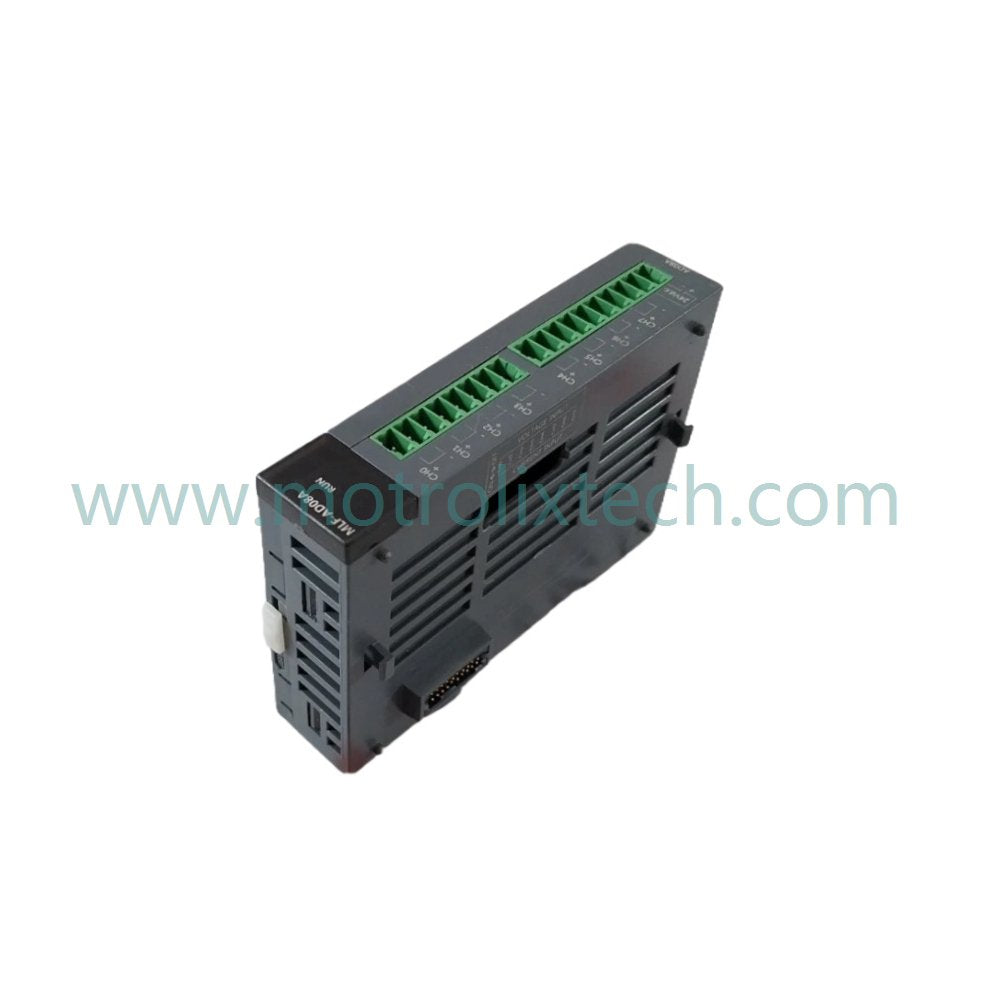

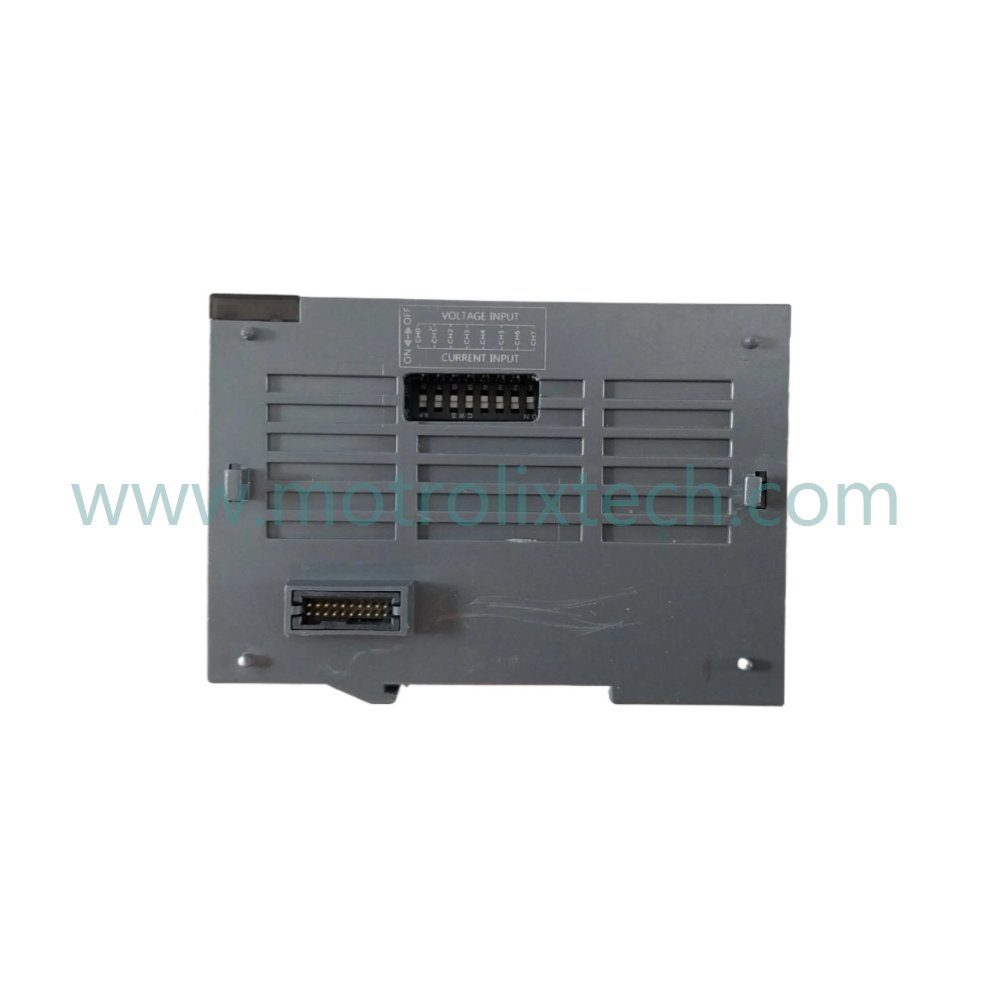

The Honeywell MLF-AD08A Analog Input Module is a high-performance, 8-channel module tailored for the MasterLogic-50 PLC series. It is designed to provide exceptional flexibility in industrial sensing and data acquisition tasks. This versatile module accepts various DC voltage and current signals, including common ranges such as 0-10V, ±10V, 4-20mA, and 0-20mA, making it highly adaptable for a wide variety of sensors and process variables.

Functional Highlights

Key features of the Honeywell MLF-AD08A include:

• High-Resolution Conversion: Each channel offers 12-bit resolution, converting analog signals into precise digital values for effective monitoring and control.
• Multiple Data Formats: Programmers can choose from unsigned (0-4000), signed (-2000 to 2000), engineering units, or percentile ranges (0-1000), providing flexibility for diverse applications.
• Input Flexibility: The module supports both voltage and current signals efficiently, enhancing its usability across different industrial environments.
• High Input Impedance: It features a minimum input impedance of 1MΩ for voltage signals and a standard 250Ω burden resistor for current loops, ensuring accurate signal measurement.

Key Benefits:

• Enhanced Signal Accuracy: The MLF-AD08A is engineered for minimal loading, providing dependable data in electrically noisy environments.
• Compact Design: Its compact form factor (7 x 14 x 14.5 cm) allows for high-density input channels in a single unit, optimizing space in control systems.
• Rugged Reliability: Designed for the rigors of industrial applications, it maintains performance and stability, crucial for process integrity.

Technical Data

• Model Number: MLF-AD08A
• Module Type: Analog Input Module
• Manufacturer: Honeywell
• Condition: Brand New
• Weight: 0.4 kg
• Dimensions: 7 x 14 x 14.5 cm
• HS CODE: 8537101190
• Product Origin: USA
• Lead Time: In Stock
• Minimum Order Quantity (MOQ): 1
• Channel Count: 8 channels
• Resolution: 12-bit
• Signal Types Supported: 0-10V, ±10V, 4-20mA, 0-20mA
• Input Impedance: 1MΩ min. for voltage signals

Typical Applications

The Honeywell MLF-AD08A Analog Input Module is ideal for:

• Industrial process control and automation systems where accurate sensor data is critical.
• Environments that require high-density data acquisition and precise monitoring.
• Applications in manufacturing, energy management, and environmental monitoring.

Support & Maintenance

Honeywell provides comprehensive support for the MLF-AD08A module. Our expert team is available for installation guidance, troubleshooting, and operational assistance to ensure your systems perform optimally.

FAQ

1. What is the weight of the Honeywell MLF-AD08A module?
   The weight is 0.4 kg.

2. What are the dimensions of this analog input module?
   Its dimensions are 7 x 14 x 14.5 cm.

3. How many channels does the MLF-AD08A support?
   It supports 8 channels of analog input.

4. What is the resolution of each channel?
   Each channel provides a resolution of 12 bits.

5. Is technical support available for the MLF-AD08A?
   Yes, Honeywell offers full technical support for this module.
