Overview

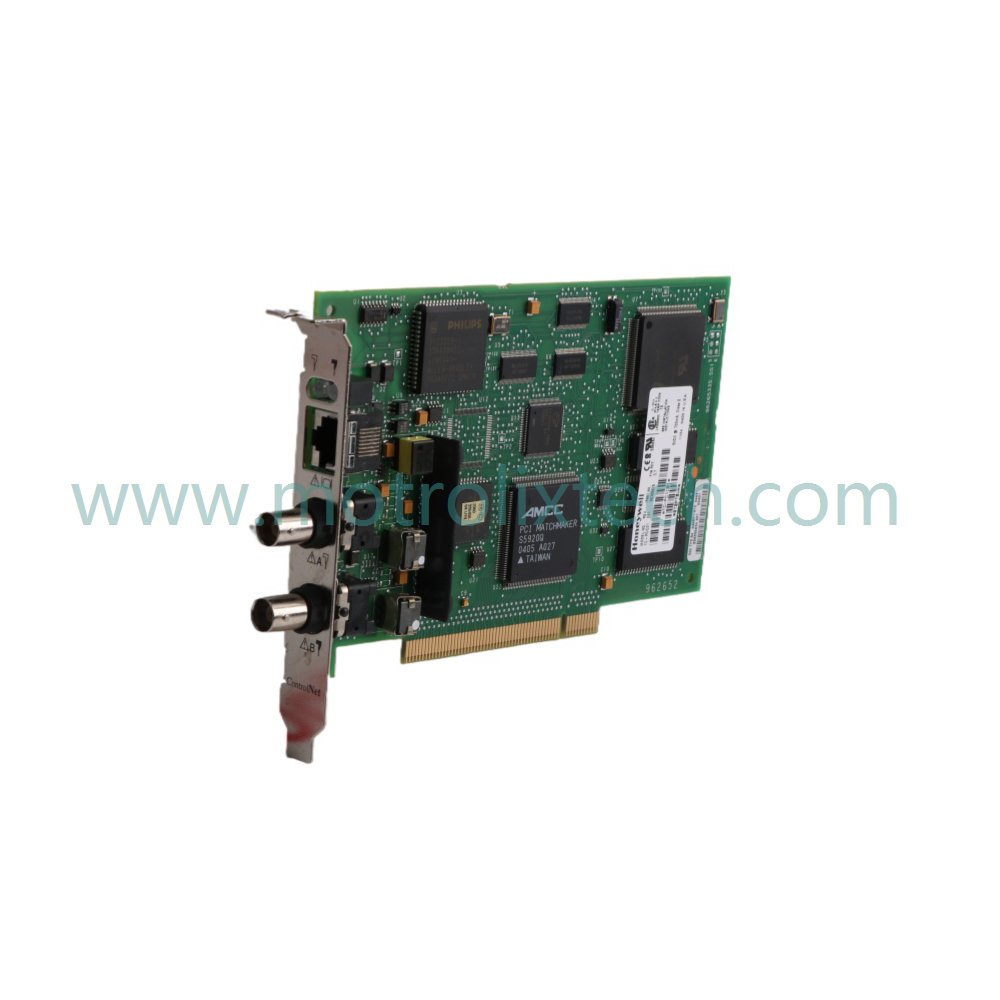

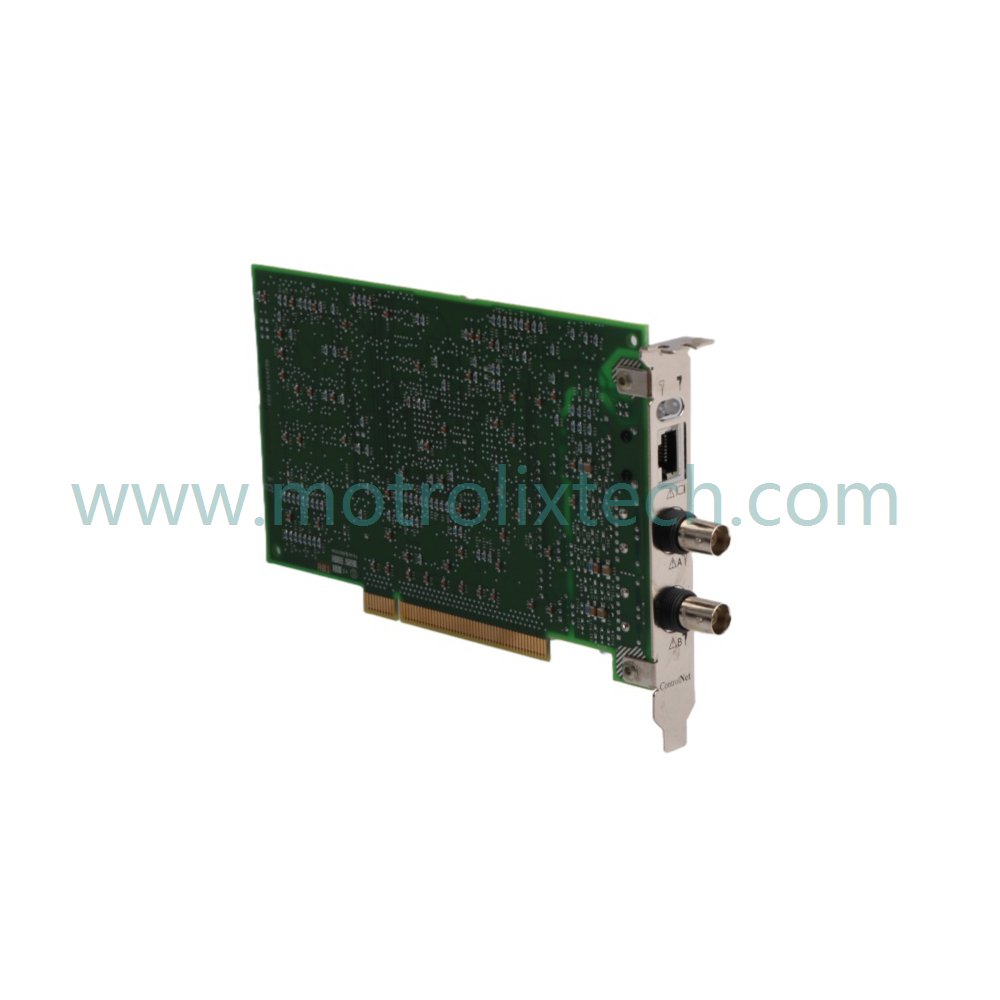

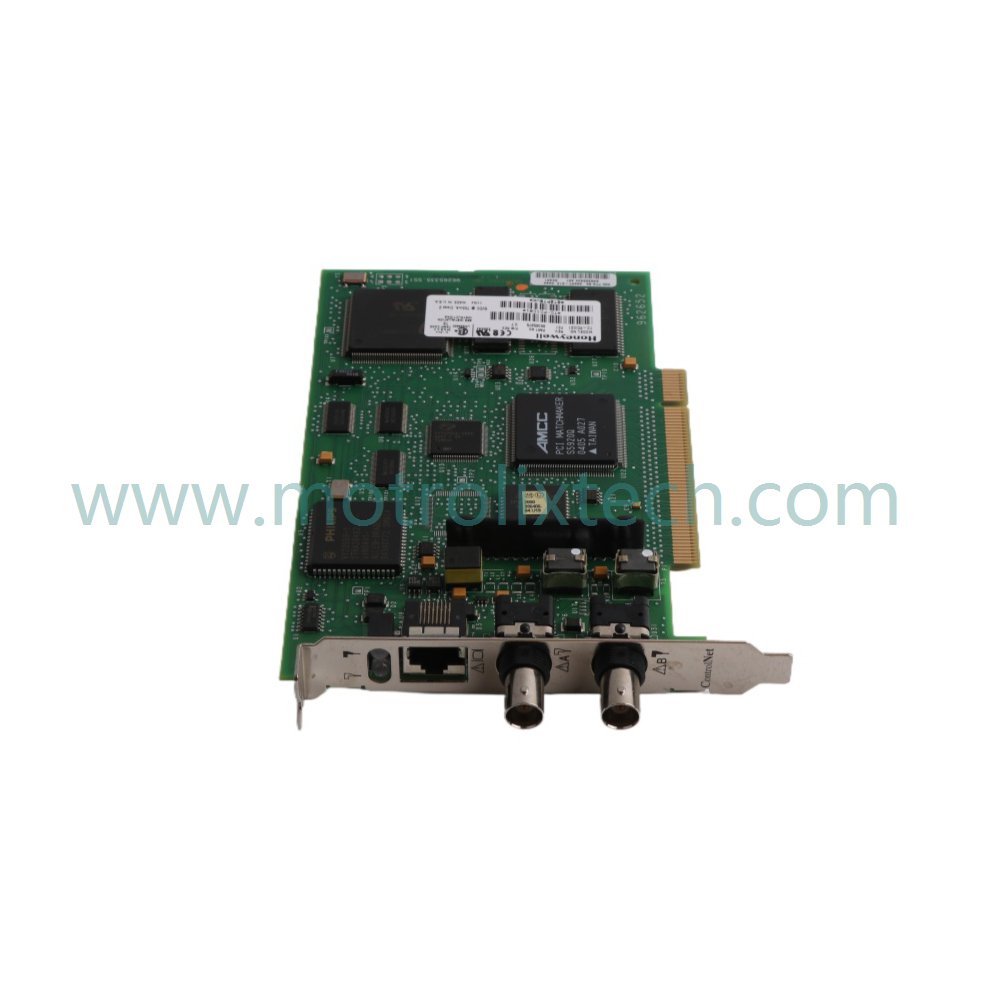

The Honeywell TC-PCIC01 PCI Bus is a specialized communication hardware component designed to serve as a Cnet Interface Module for personal computers. This module acts as a critical bridge, facilitating physical and data links between a personal computer and Honeywell's proprietary Cnet control network. By integrating this module, engineers and technicians can efficiently use standard PC hardware for essential tasks such as system configuration, real-time data monitoring, and historical data acquisition within the Honeywell automation ecosystem.
Functional Highlights
Key features of the Honeywell TC-PCIC01 include:
-
Compact Design: This PCI card is designed for installation within a standard desktop computer chassis, ensuring space-efficient integration.
-
Seamless Communication: Facilitates a reliable connection to the Cnet control network, enhancing data integrity and operational efficiency.
-
Low Power Consumption: Operates on a low-voltage power input of 5.25 VDC at 700 milliamps, promoting energy efficiency and safety.
-
Broad Compatibility: Engineered as a PCI card, it ensures compatibility with a wide range of industrial and commercial PC platforms from its time.
-
Legacy Support: Although discontinued, it remains crucial for organizations relying on legacy systems that demand this interface.
Key Benefits:
-
Enhanced Operational Workflow: By providing a reliable communication link, the TC-PCIC01 improves the operational workflow and accessibility of control systems.
-
Continuous Operation: Built to operate within desktop conditions, it supports long-term reliability for continuous operation in control rooms and engineering stations.
-
Safety Assurance: Classified as a Class 2 device, it meets safety requirements to minimize electrical hazards during operation.
Technical Data
-
Model Number: TC-PCIC01
-
Module Type: PCI Bus
-
Manufacturer: Honeywell
-
Condition: Brand New
-
Weight: 0.4 kg
-
Dimensions: 7 cm x 14 cm x 14.5 cm
-
HS CODE: 8537101190
-
Product Origin: USA
-
Lead Time: In Stock
-
Minimum Order Quantity (MOQ): 1
-
Power Supply Voltage: 5.25 VDC
-
Current Draw: 700 milliamps
-
Internal Designation: 96365671
Typical Applications
The Honeywell TC-PCIC01 PCI Bus module is suitable for:
- Legacy systems requiring reliable communication with Honeywell's Cnet network.
- Industrial automation environments where legacy hardware integration is necessary.
- Applications that benefit from standard PC hardware utilization for monitoring and data retrieval.
Support & Maintenance
Though the TC-PCIC01 has been discontinued by Honeywell, organizations still utilizing this module can rely on community support and secondary market sources for replacement parts. For long-term viability, consider transitioning to modern, supported communication solutions offered by Honeywell.
FAQ
-
What is the primary function of the TC-PCIC01 module?
It acts as a Cnet Interface Module, linking PCs to Honeywell's control network.
-
What is the power requirement for this module?
It requires a power supply of 5.25 VDC at 700 milliamps.
-
Is the TC-PCIC01 compatible with modern systems?
No, it is designed for legacy systems and may not be compatible with newer setups.
-
What are the dimensions of this PCI card?
The module measures 7 cm x 14 cm x 14.5 cm.
-
Where can I source replacement units for discontinued products?
Replacement modules can be found through secondary markets or consider upgrading to newer solutions.
