Overview

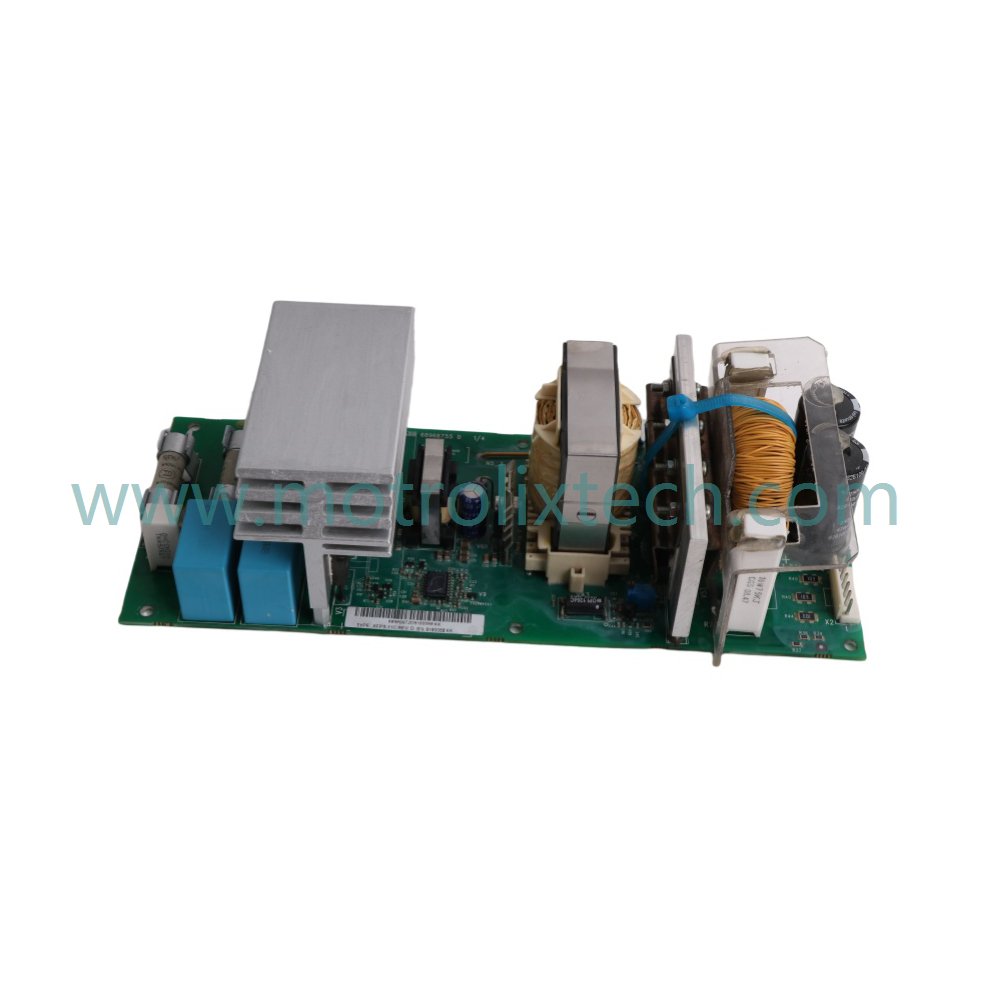

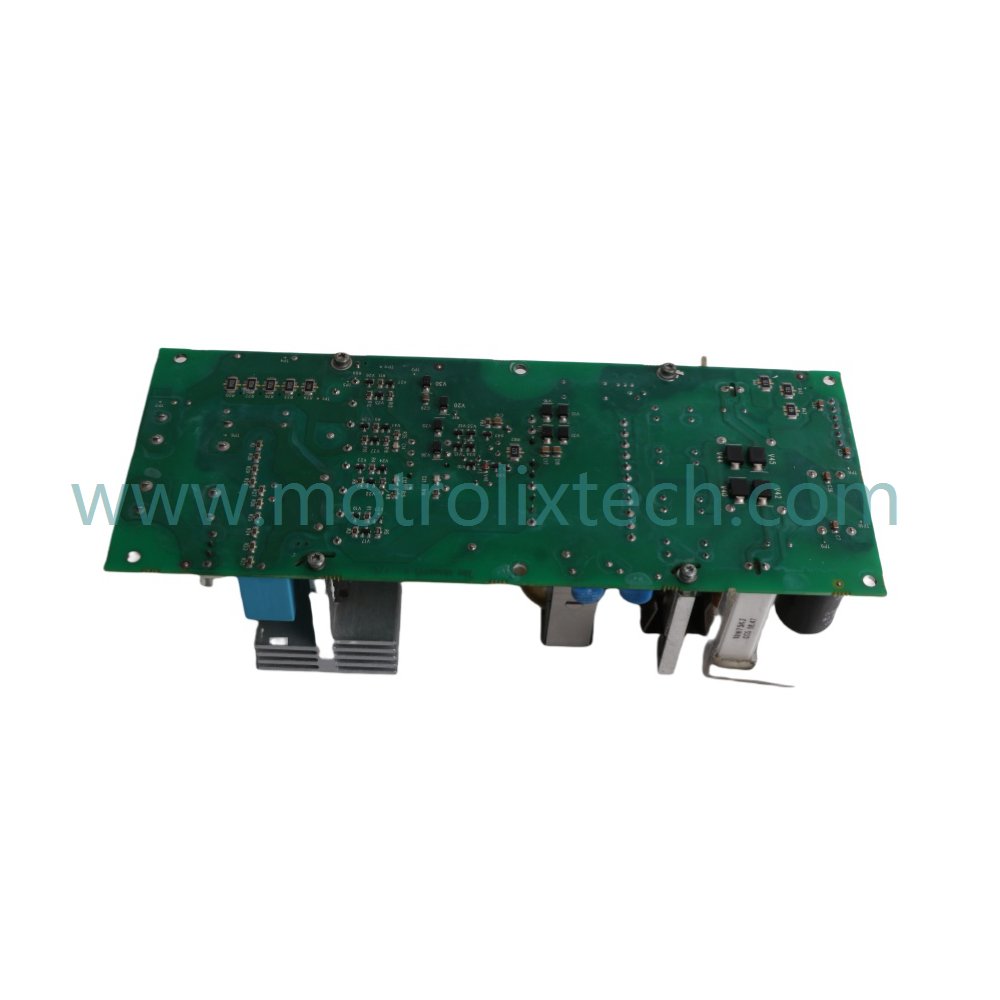

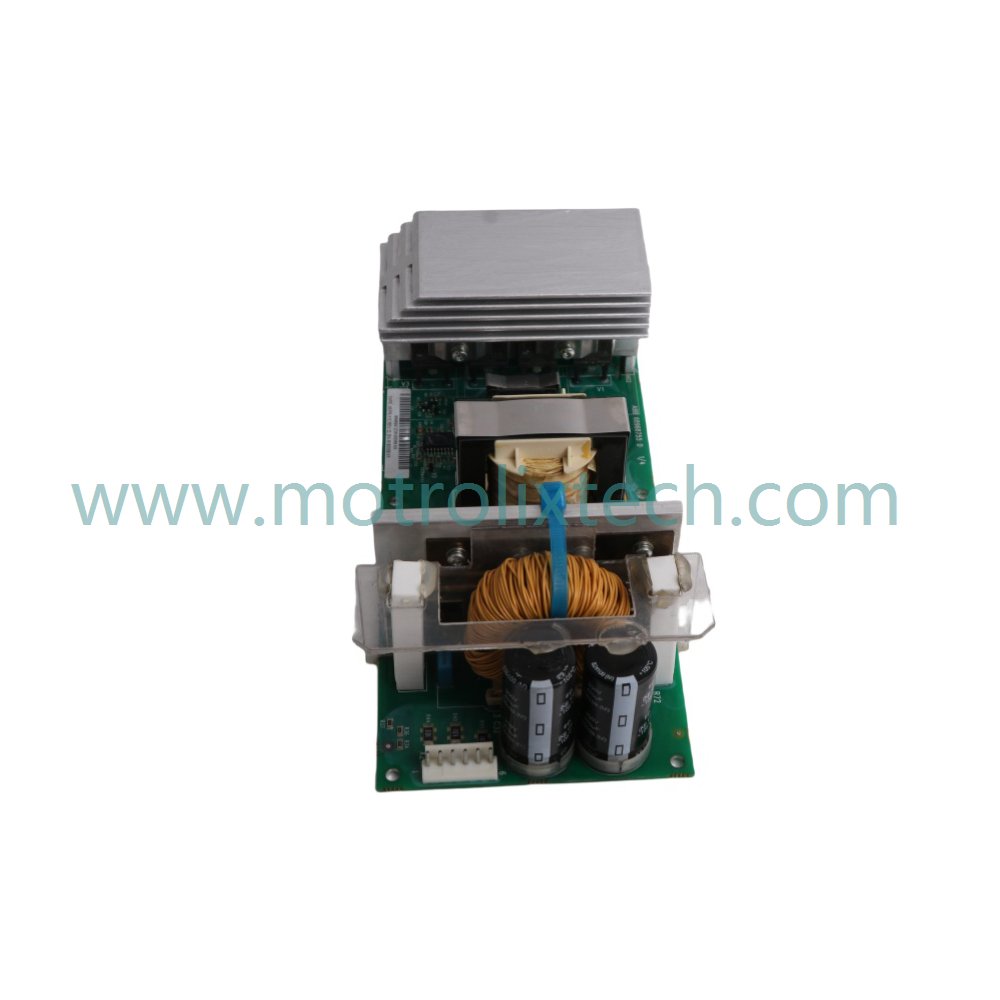

The ABB AFPS-11C 68969972 Power Supply Board is an essential component designed to provide reliable power in demanding industrial automation settings. Engineered with the expertise of ABB, this power supply board guarantees consistent voltage delivery along with enhanced reliability and efficiency. It meets the needs of various automation applications across multiple sectors.

Functional Highlights

This versatile power supply board supports both AC and DC inputs, accommodating an input voltage range of 85–264 V AC and 100–300 V DC. Such versatility makes it suitable for diverse power environments. It operates within a frequency range of 47–63 Hz and delivers a stable 24 V DC primary output with a typical power capacity of 50 W, making it ideal for supplying energy to automation controllers and sensitive control systems.

Moreover, the AFPS-11C boasts an impressive efficiency rating of over 85%, which helps in reducing energy consumption while minimizing heat generation. The board is built to perform reliably even under tough industrial conditions, with an operating temperature range from -25°C to +60°C and a storage temperature range of -40°C to +85°C. It also tolerates relative humidity levels from 5% to 95% (non-condensing), ensuring long-term durability.

The compact size of the AFPS-11C, measuring only 8.5 x 7.5 x 7.5 cm and weighing just 0.16 kg, makes it easy to install in tight spaces. This design ensures that engineers can easily integrate it into various control systems without consuming excessive space.

Technical Data

• Model Number: AFPS-11C 68969972
• Module Type: Power Supply Board
• Manufacturer: ABB
• Condition: Brand New
• Weight: 0.16 kg
• Dimensions: 8.5 x 7.5 x 7.5 cm
• HS CODE: 8537101190
• Product Origin: Sweden
• System Type: DCS
• Status: Active
• Input Voltage Range: 85–264 V AC, 100–300 V DC
• Frequency Range: 47–63 Hz
• Output Voltage: 24 V DC
• Typical Output Power: 50 W
• Efficiency: >85%
• Operating Temperature Range: -25°C to +60°C
• Storage Temperature Range: -40°C to +85°C
• Humidity Tolerance: 5% to 95%, non-condensing

Typical Applications

The ABB AFPS-11C 68969972 Power Supply Board is ideal for:

• Supplying reliable power to automation controllers in industrial settings
• Powering sensitive control systems that require stable and responsive voltage
• Integration into equipment operating under harsh environmental conditions
• Use in various applications where space is limited and efficiency is a priority

FAQ

1. What is the weight of the AFPS-11C Power Supply Board?
   The power supply board weighs 0.16 kg.

2. What are the dimensions of this power supply module?
   Its dimensions are 8.5 x 7.5 x 7.5 cm.

3. What is the input voltage range supported by the AFPS-11C?
   It accepts an input range of 85–264 V AC and 100–300 V DC.

4. What output voltage does the AFPS-11C provide?
   It provides a stable output voltage of 24 V DC.

5. What is the operating temperature range for the power supply board?
   The operating temperature range is from -25°C to +60°C.
