Overview

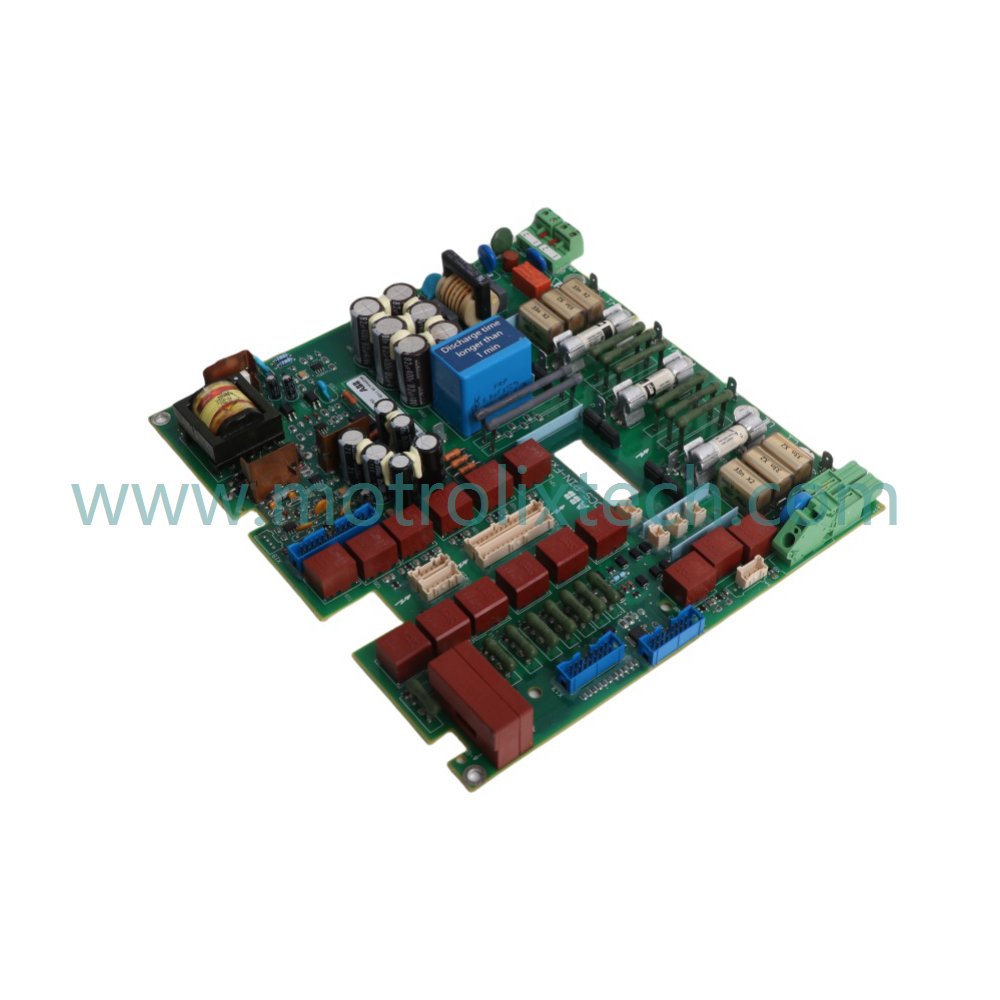

The ABB SDCS-PIN-4B 3ADT316300R1510 Power Supply Board is a precision-engineered interface designed for use in industrial automation and motor control systems. This module integrates a timing function, onboard transformer, and relay outputs, making it a reliable component for managing and distributing control signals within ABB drive systems. It serves as a direct replacement for the legacy model SDCS-PIN-4B, offering enhanced performance and compatibility.

Functional Highlights

The SDCS-PIN-4B provides high accuracy, low noise, and exceptional stability, essential for efficient motor control. Its operating temperature range spans from -40°C to +85°C, ensuring dependable performance in harsh industrial environments. The board is designed with an input voltage of 24V DC, and it can output voltages from 0 to 10V DC, accommodating output currents up to 20mA.

Moreover, beyond motor control applications, the SDCS-PIN-4B functions as a versatile power module. It can be directly mounted on a printed circuit board (PCB) to supply power to critical components such as ASICs, DSPs, microprocessors, memory units, FPGAs, and other analog or digital loads. This board is a key component of point-of-load (POL) or point-of-use power supply systems, which require stable and efficient power delivery.

Technical Data

• Model Number: SDCS-PIN-4B 3ADT316300R1510
• Module Type: Power Supply Board
• Manufacturer: ABB
• Condition: Brand New
• Weight: 0.35 kg
• Dimensions: 33.7 x 11.7 x 8.5 cm
• HS CODE: 8537101190
• Product Origin: Sweden
• Lead Time: In Stock
• Minimum Order Quantity (MOQ): 1
• Input Voltage: 24V DC
• Output Voltage: 0–10V DC
• Output Current: Up to 20mA
• Operating Temperature Range: -40°C to +85°C

Typical Applications

The ABB SDCS-PIN-4B Power Supply Board is ideal for:

• Industrial automation and motor control systems requiring reliable power management.
• Point-of-load power delivery for critical electronic components.
• Applications operating in extreme environmental conditions.

FAQ

1. What is the weight of the SDCS-PIN-4B Power Supply Board?
   The SDCS-PIN-4B weighs 0.35 kg.

2. What are the dimensions of the SDCS-PIN-4B?
   Its dimensions are 33.7 x 11.7 x 8.5 cm.

3. What is the input voltage for the SDCS-PIN-4B?
   It requires a 24V DC input voltage.

4. What output voltage levels does the SDCS-PIN-4B support?
   The board can output voltages from 0 to 10V DC.

5. What is the operating temperature range for the SDCS-PIN-4B?
   It operates effectively between -40°C to +85°C.
