Overview

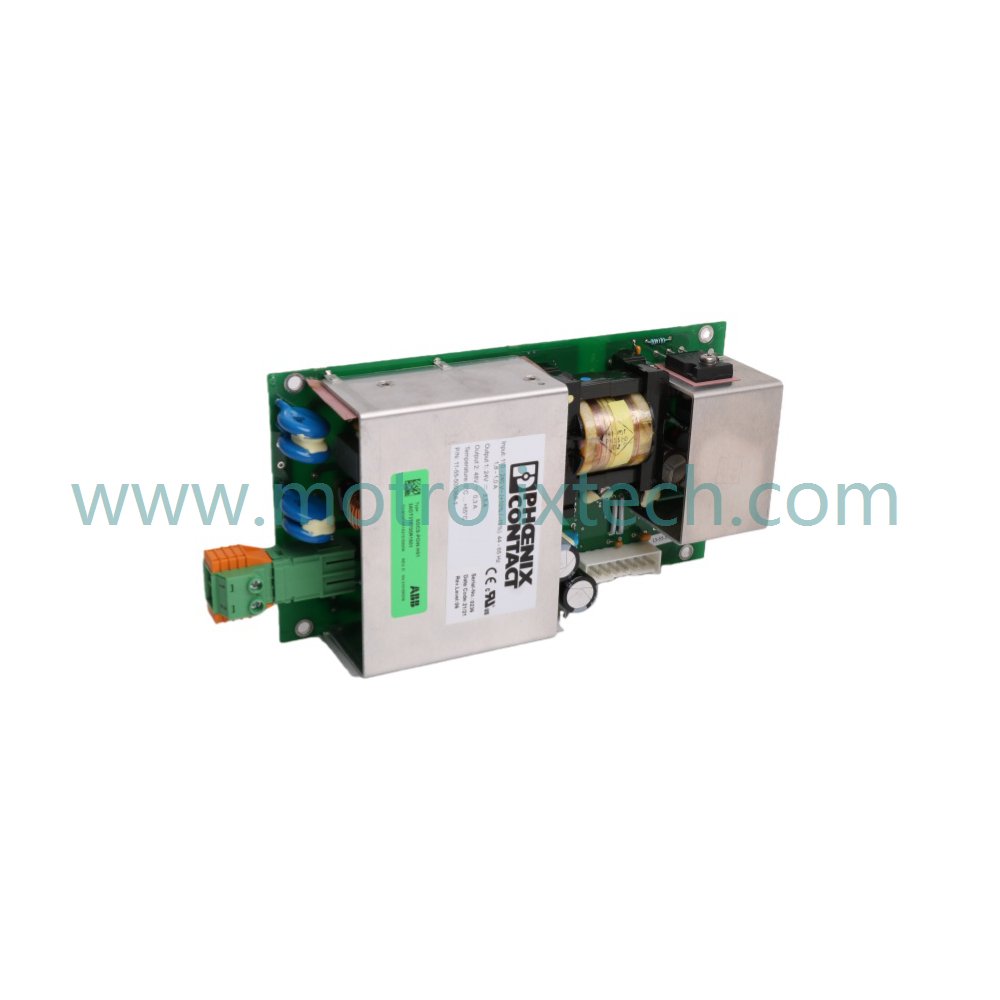

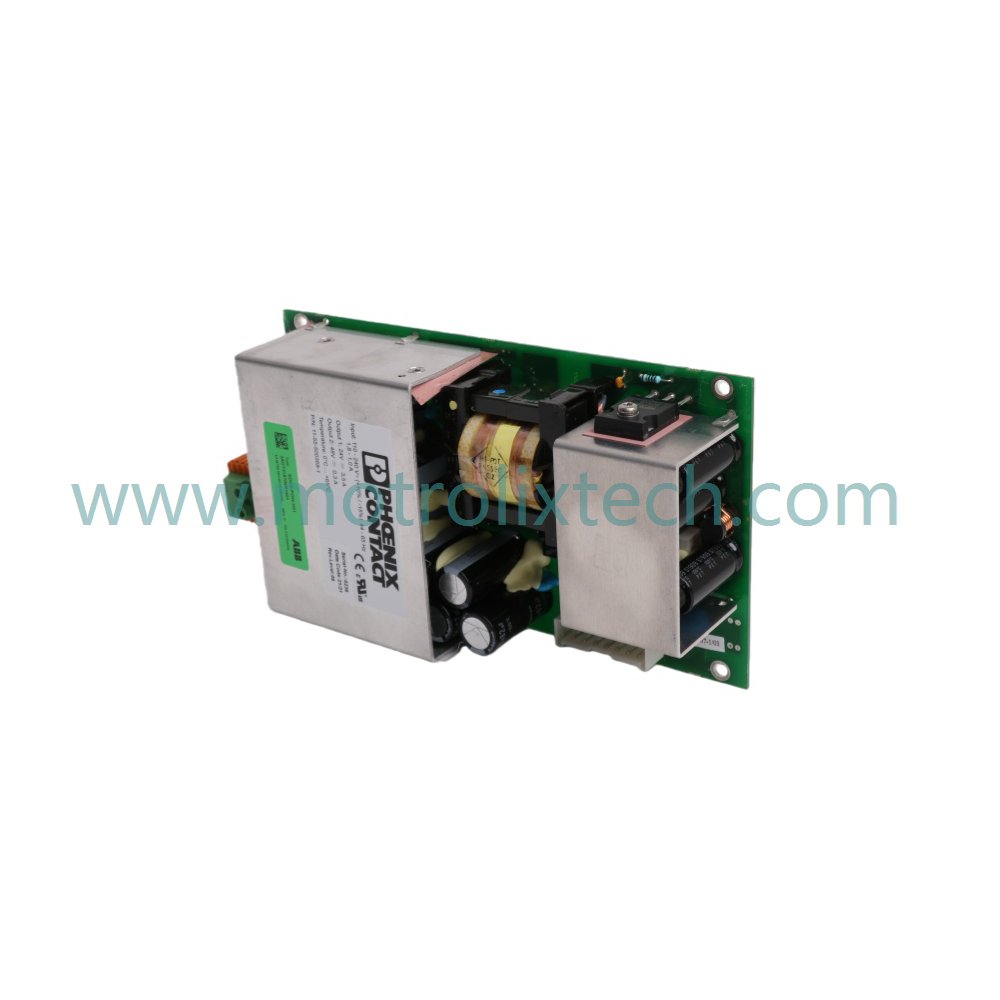

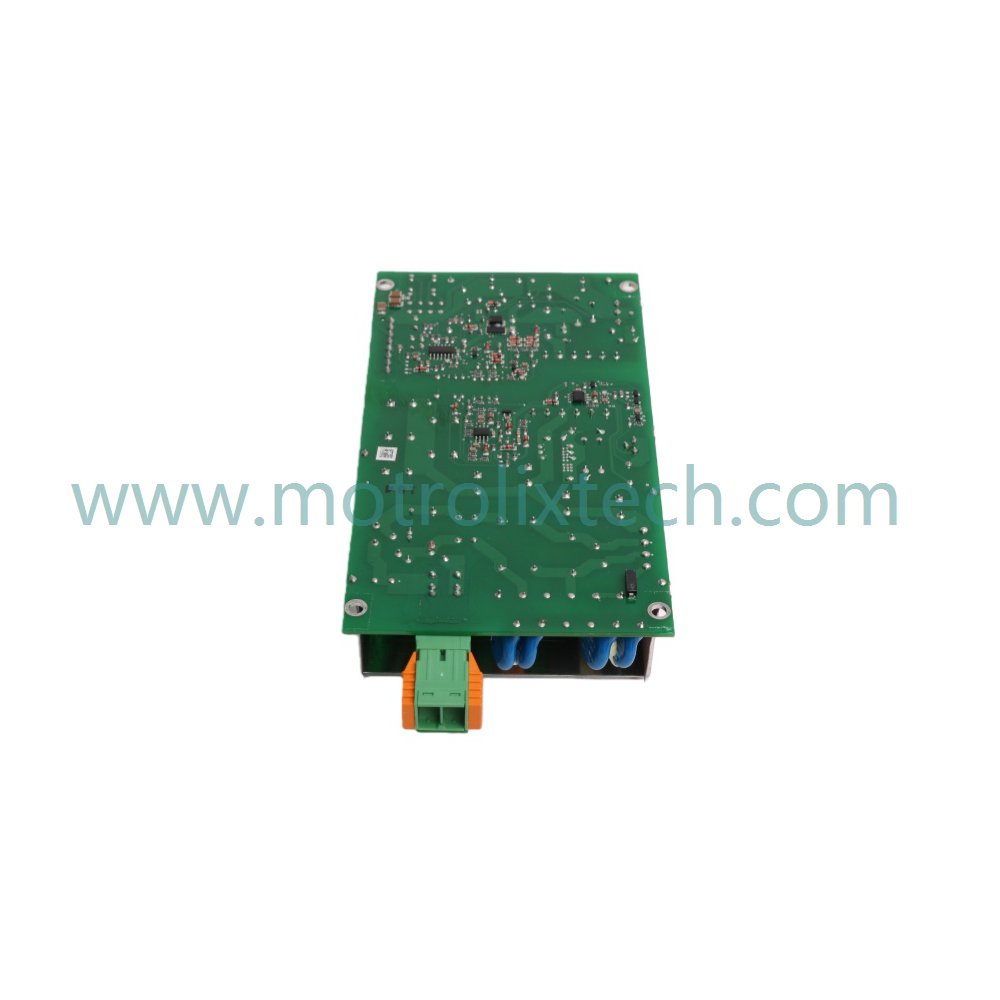

The ABB SDCS-POW-1 Power Supply Board is a critical component designed to serve as the primary power source for ABB's S800 I/O system. This robust module efficiently converts incoming power to a stable 24V DC output, essential for powering various I/O modules within the control architecture. The ABB SDCS-POW-1, also identified by part number 10012279, ensures uninterrupted power distribution while maintaining voltage stability in demanding industrial environments.

Functional Highlights

Engineered with precision power regulation circuitry, the SDCS-POW-1 delivers clean and consistent electrical power, effectively supporting both analog and digital I/O modules. The design incorporates comprehensive protection features, including overvoltage protection, short-circuit protection, and thermal overload protection. These features safeguard both the power supply board itself and the connected I/O modules, ensuring reliable performance and continuous system operation in critical applications.

Moreover, the integration of the SDCS-POW-1 within the S800 I/O rack establishes a centralized power management solution that simplifies system wiring and enhances overall reliability. This power supply board is highly compatible with the complete range of S800 I/O modules, ensuring seamless interoperability within ABB's control system ecosystem. Its rugged construction allows it to withstand electrical noise and vibrations commonly encountered in industrial settings.

In practical applications, the SDCS-POW-1 serves as the power backbone for distributed control systems across various industries, including oil and gas, power generation, and manufacturing. Its design focuses on operational safety and maintenance convenience, featuring clear status indicators for immediate fault identification. The proven reliability and technical excellence of the ABB SDCS-POW-1 make it an indispensable component for maintaining system stability and operational continuity in critical process automation applications.

Technical Data

• Model Number: SDCS-POW-1
• Module Type: Power Supply Board
• Manufacturer: ABB
• Condition: Brand New
• Weight: 1.22 kg
• Dimensions: 24 x 19 x 5.3 cm
• HS CODE: 8537101190
• Product Origin: Sweden
• Lead Time: In Stock
• Minimum Order Quantity (MOQ): 1
• Output Voltage: 24V DC
• Input Voltage Range: Designed for various input sources
• Output Current: Specifications available upon request
• Protection Features: Overvoltage, short-circuit, thermal overload

Typical Applications

The ABB SDCS-POW-1 Power Supply Board is suitable for:

• Industrial automation systems requiring reliable power management and distribution.
• Distributed control systems in oil and gas, power generation, and manufacturing industries.
• Environments where uninterrupted power distribution is essential.

FAQ

1. What is the weight of the SDCS-POW-1 Power Supply Board?
   The SDCS-POW-1 weighs 1.22 kg.

2. What are the dimensions of the SDCS-POW-1?
   Its dimensions are 24 x 19 x 5.3 cm.

3. What output voltage does the SDCS-POW-1 provide?
   It provides a stable output voltage of 24V DC.

4. What protection features are included in the SDCS-POW-1?
   The board includes overvoltage, short-circuit, and thermal overload protection.

5. What industries commonly use the SDCS-POW-1?
   It is widely used in oil and gas, power generation, and manufacturing sectors.
