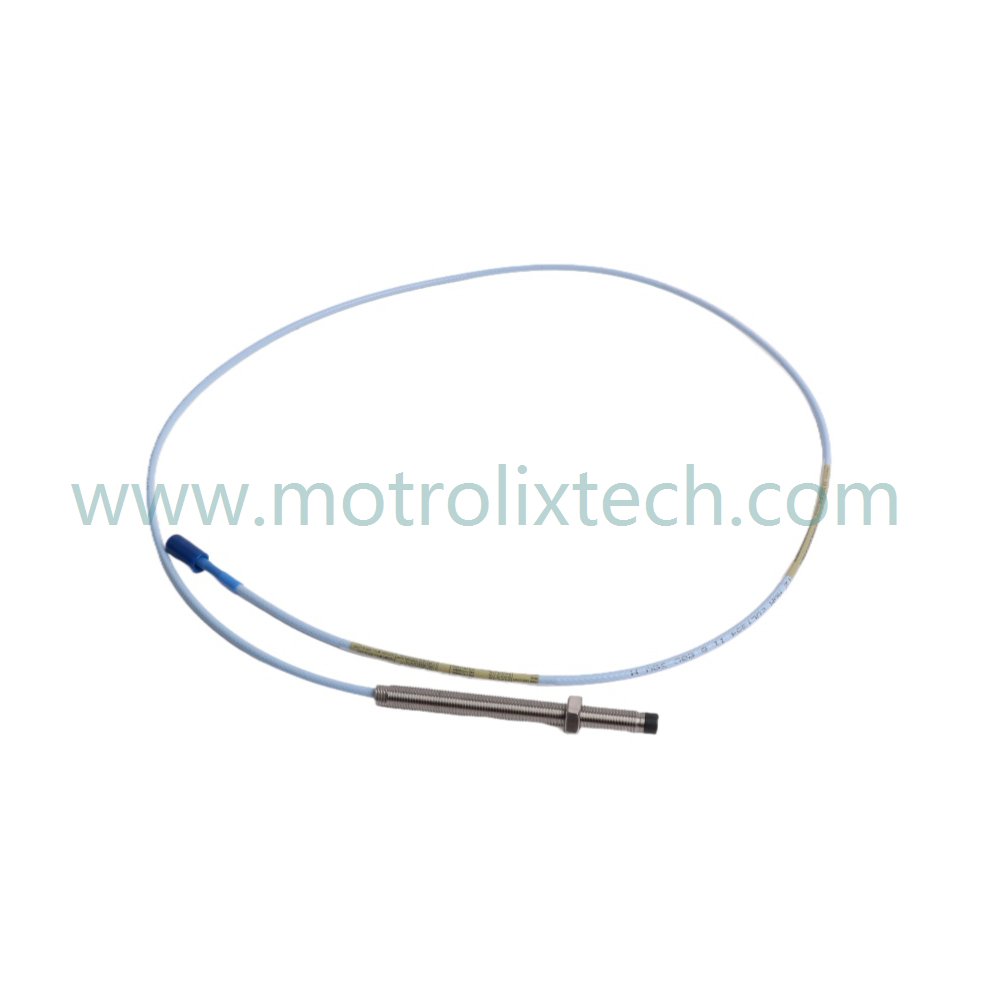

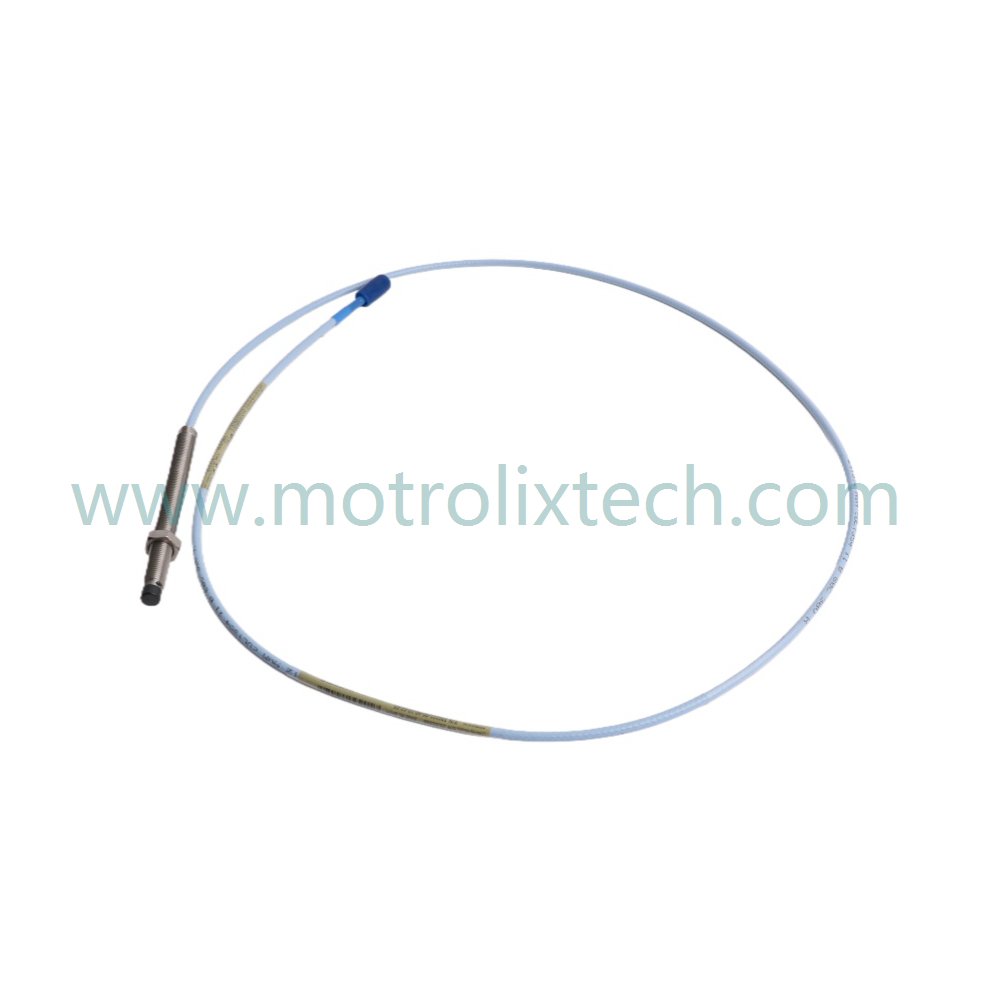

The Bently Nevada 330101-00-40-10-02-05 8 mm Probes are specifically engineered for high-precision displacement and vibration measurements essential for monitoring large rotating machinery, including turbines and reciprocating compressors. This probe excels in providing both static position and dynamic vibration measurements, making it an invaluable tool in demanding industrial environments where reliable performance is crucial.
Designed to deliver an output voltage directly proportional to proximity, this probe maintains exceptional accuracy across a wide temperature range. The 330101-00-40-10-02-05 features a robust 3/8-24 UNF threaded connection, a 1.0-meter CableLoc™ coated cable, and a miniature coaxial ClickLoc connector, ensuring secure installation and minimal maintenance. Additionally, with CSA, ATEX, and IECEx approvals, these probes meet rigorous safety standards, making them suitable for a variety of applications.
The model number 330101-00-40-10-02-05 can be broken down as follows:
330101: Indicates the specific model within the Bently Nevada 3300 series.
00: Represents standard features or configurations related to the probe.
40: Refers to the case length or specific design features of the probe.
10: Denotes the length of the unthreaded section.
02: Indicates additional design specifications or approvals.
05: Suggests a variant or additional features relevant to the probe.
| Parameter | Specification |
|---|---|
| Model Number | 330101-00-40-10-02-05 |
| Module Type | 8 mm Probes |
| Manufacturer | Bently Nevada |
| Condition | Brand New |
| Range of Product | 3300 XL Proximity Transducer System |
| Lead Time | In Stock |
| Weight | 0.55 kg |
| HS CODE | 8537101190 |
| Dimensions | 20.5 x 22.4 x 3.3 cm |
| Minimum Order Quantity (MOQ) | 1 |
| Product Origin | USA |
| System Compatibility | TSI |
| Discontinued | Active |
| Communication Service | Ethernet router |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Temperature Range | Wide operating range with high stability |
| Installation Thread Size | 3/8-24 UNF |
| Cable Length | 1.0 m (3.3 feet) |
For optimal performance of the Bently Nevada 330101-00-40-10-02-05 8 mm Probes, adhere to the following installation guidelines:
Secure Mounting: Ensure the probe is firmly attached to prevent movement and ensure accurate measurements.
Cable Management: Manage the 1.0-meter cable to avoid tight bends or kinks that could affect its performance.
Connector Check: Verify that the ClickLoc connector is secured properly to maintain a reliable connection and signal integrity.
Environmental Consideration: Ensure the installation complies with all relevant safety standards to protect against moisture and other environmental hazards.
The Bently Nevada 330101-00-40-10-02-05 8 mm Probes provide several advantages:
Durability: The probe is constructed with a protective armor and designed to withstand extreme conditions, ensuring reliability in hazardous environments.
High Sensitivity: With an average scale factor of 7.87 V/mm, this probe accurately captures both static and dynamic measurements, facilitating effective monitoring of critical machinery.
Simplified Maintenance: The probe’s modularity allows for full interchangeability with other 3300 XL components, eliminating the need for recalibration during part replacements.
Safety Certifications: Compliant with CSA, ATEX, and IECEx standards, this probe guarantees customer confidence in its safety and performance in demanding applications.
Q1: What industrial applications are suitable for the Bently Nevada 330101-00-40-10-02-05 Probe?
A1: This probe is well-suited for monitoring a variety of large rotating machinery, including turbines, compressors, and fluid-film bearing machines, providing essential data for condition monitoring.
Q2: How does the ClickLoc connector enhance installation processes?
A2: The ClickLoc connector offers a secure, tool-free connection, simplifying installation and reducing the possibility of disconnections during operation.
Q3: What range of temperatures can the probe operate effectively?
A3: While specific temperature ranges are not delineated, the probe is designed for a wide operating range, ensuring reliability in extreme industrial environments.
Q4: How does the sensitivity of the probe impact its performance?
A4: The sensitivity of 7.87 V/mm allows the probe to capture small displacement variations effectively, enhancing its ability to monitor critical machinery and prevent faults.
Q5: Is this probe compatible with existing Bently Nevada 3300 series components?
A5: Yes, the 330101-00-40-10-02-05 is designed for backward compatibility, supporting easy integration with older 3300 series probes and sensors without the need for recalibration.
