Product Overview:

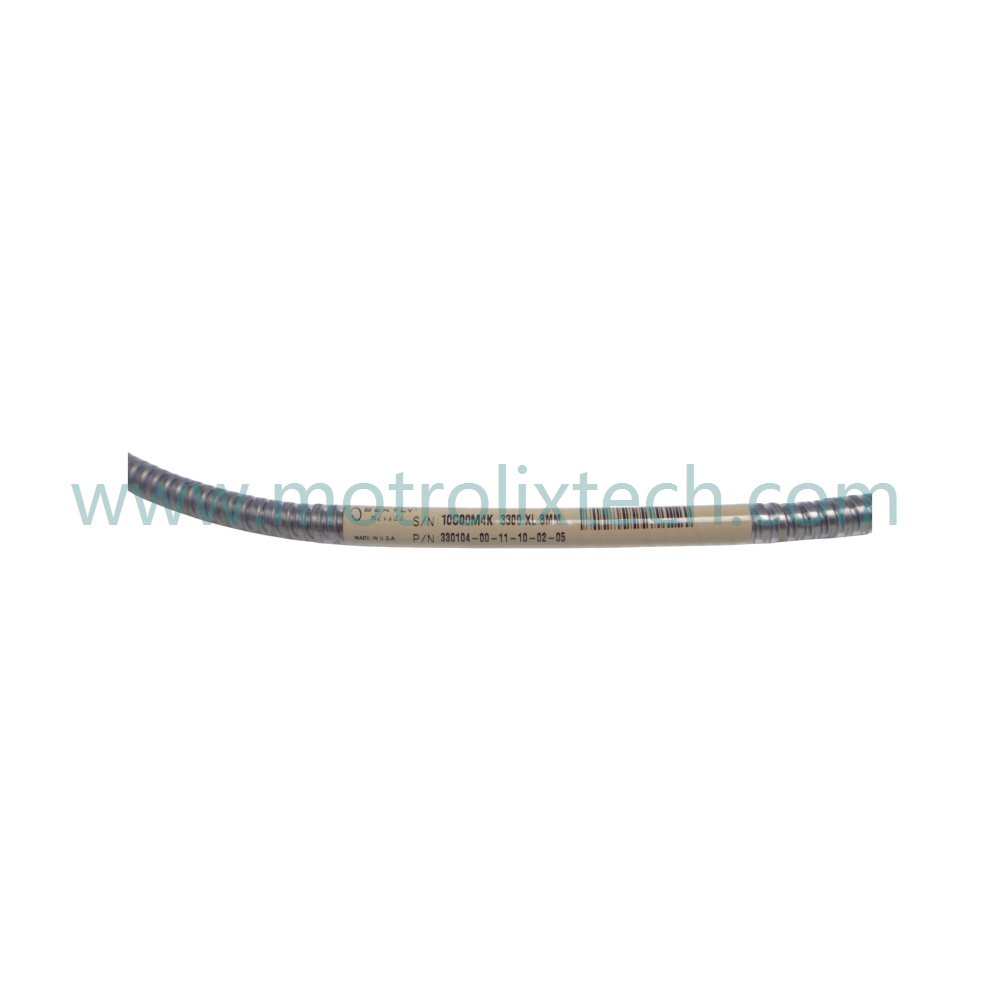

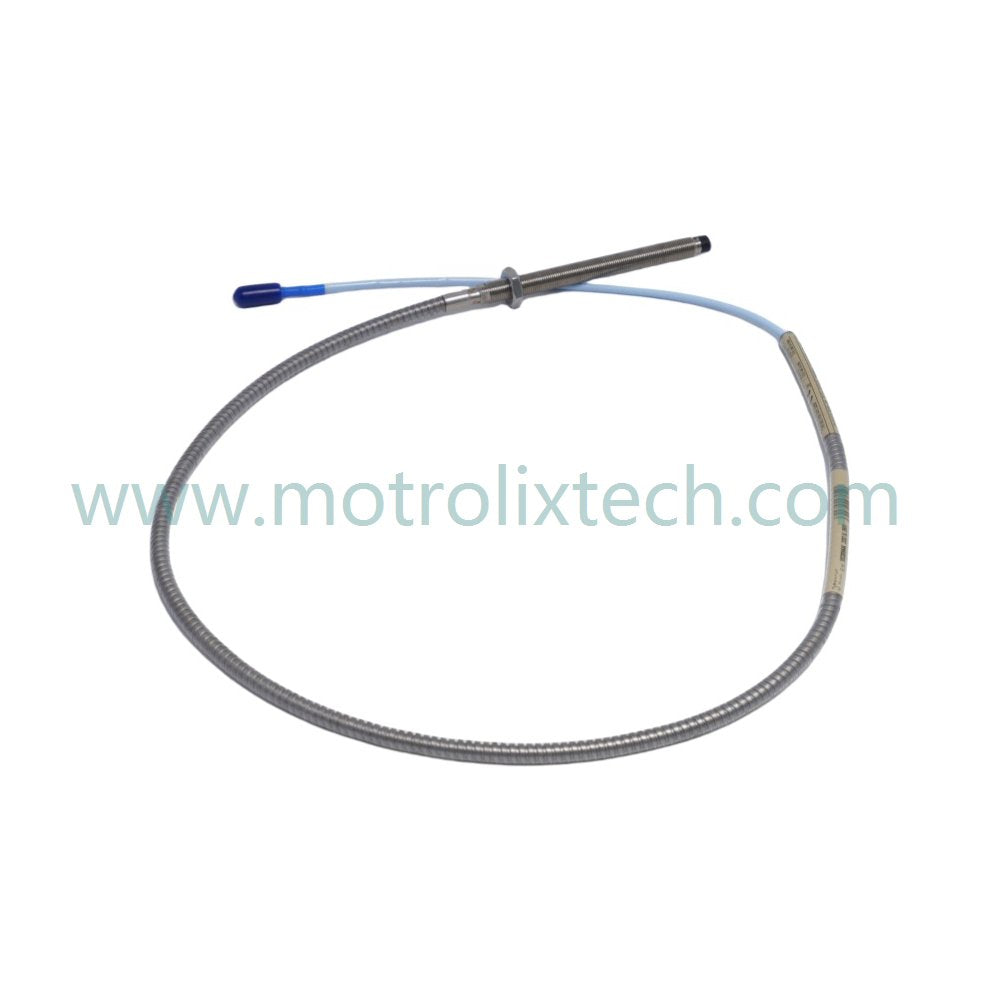

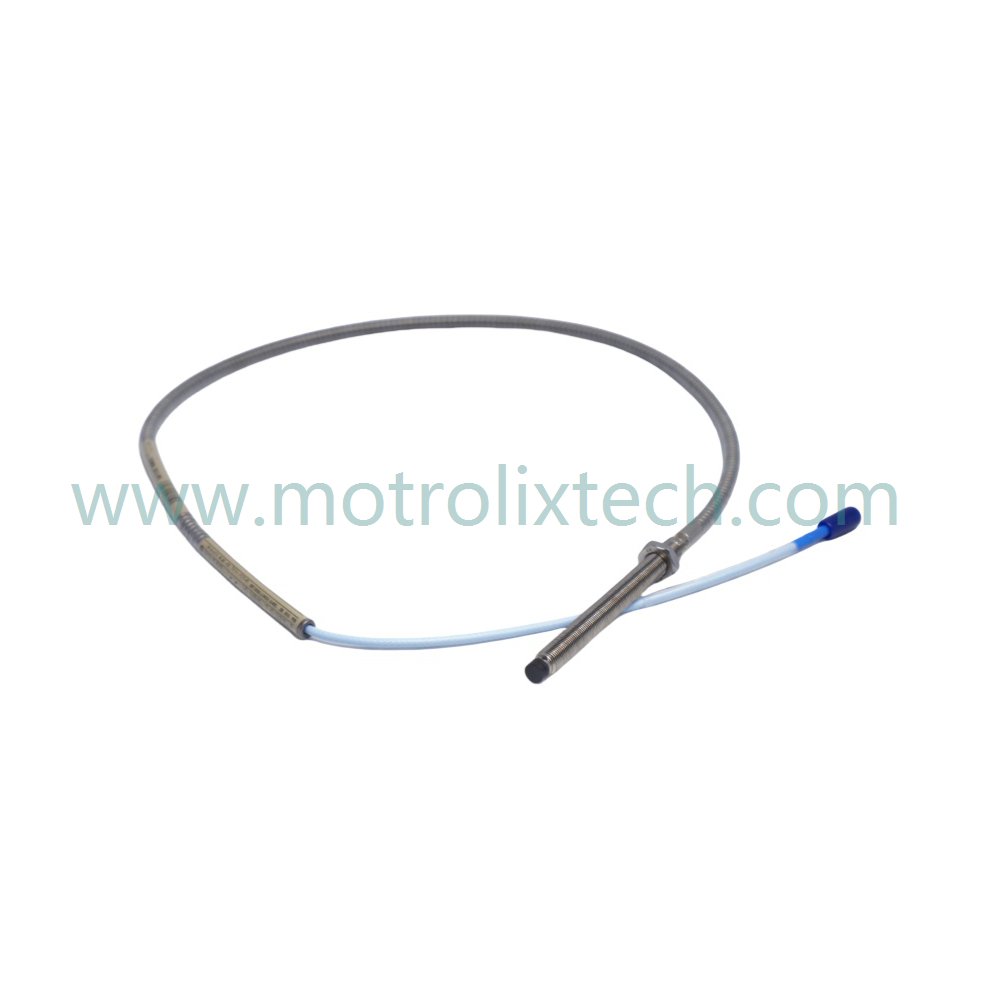

The Bently Nevada 330104-00-11-10-01-00 Sensor Probe is an advanced eddy current proximity probe system specifically designed for precision monitoring in critical industrial applications. As part of Baker Hughes' condition monitoring solutions, this probe provides reliable vibration and position measurements for turbines, compressors, and other high-speed rotating equipment, ensuring optimal performance and operational reliability.
Key features of the 330104-00-11-10-01-00 include an extended temperature range that operates effectively from -40°C to +177°C (-40°F to +350°F), enabling performance in diverse environments. With high accuracy achieved at ±1% linearity across a measurement range of 0.25 to 2.3 mm, this sensor maintains precise monitoring capabilities. Its rugged construction, made of 316 stainless steel and rated IP67 for environmental protection, ensures durability in harsh conditions. Additionally, the probe is certified for hazardous areas in compliance with ATEX/IECEx Zone 0 & 1 standards, making it suitable for use in explosive atmospheres.
The Bently Nevada 330104-00-11-10-01-00 integrates seamlessly within the 3300 Proximity Transducer System, providing 4-20mA and ±5V DC analog outputs for easy PLC/DCS integration. Advanced diagnostics enable early detection of bearing wear and shaft misalignment, enhancing maintenance strategies and ensuring reliability with a 5-year Mean Time Between Failures (MTBF) rating.
Engineers specify the Bently Nevada 330104-00-11-10-01-00 Sensor Probe for various applications, including power generation steam turbines, offshore oil & gas compressors, petrochemical critical pumps, and heavy industrial gearboxes. With its patented Temperature Compensation Technology and NIST-traceable calibration, this probe maintains measurement accuracy during rapid thermal transients, making it an excellent choice for API 670 compliant machinery protection systems.
Technical Specifications:
Model Number: 330104-00-11-10-01-00
Module Type: Sensor Probe
Weight: 0.08 kg
Dimensions: 2 x 1.5 x 58 cm
Lead Time: In Stock
HS CODE: 8537101190
Product Origin: USA
System: TSI
Communication Service: Ethernet Router
Temperature Range: -40°C to +177°C
Model Code Breakdown:The model number 330104-00-11-10-01-00 can be broken down as follows:
330104: Identifies the specific product family within the Bently Nevada series, particularly focused on sensor probes.
00: Represents the series iteration or design variant.
11-10-01-00: Provides additional details regarding technical specifications, features, and compliance aspects pertinent to the sensor's applications.
Installation Recommendations and Wiring Guide:To ensure optimal performance with the Bently Nevada 330104-00-11-10-01-00 Sensor Probe, consider the following installation guidelines:
Select Installation Location: Choose a location that allows for unobstructed measurement of the machinery’s vibration and position.
Secure Mounting: Use the appropriate mounting hardware, ensuring the probe is securely installed and aligned with the monitored surface for accurate readings.
Wiring Connections: Follow the manufacturer's wiring diagrams for connecting the probe to your monitoring system. Ensure all connections are tight and properly insulated to avoid interference.
Calibration and Testing: After installation, conduct a calibration and performance testing to confirm that the sensor operates effectively and provides accurate data readings.
Frequently Asked Questions (FAQ):
Q: What is the primary function of the Bently Nevada 330104-00-11-10-01-00?
A: It serves as a sensor probe for monitoring vibrations and position in critical industrial machinery.
Q: How much does the sensor probe weigh?
A: The sensor probe weighs approximately 0.08 kg.
Q: What are the dimensions of the 330104-00-11-10-01-00?
A: The dimensions are 2 x 1.5 x 58 cm.
Q: What is the operational temperature range for this probe?
A: It operates effectively from -40°C to +177°C.
Q: In what applications is this sensor probe typically used?
A: It is commonly used in power generation turbines, offshore compressors, and petrochemical pumps.
