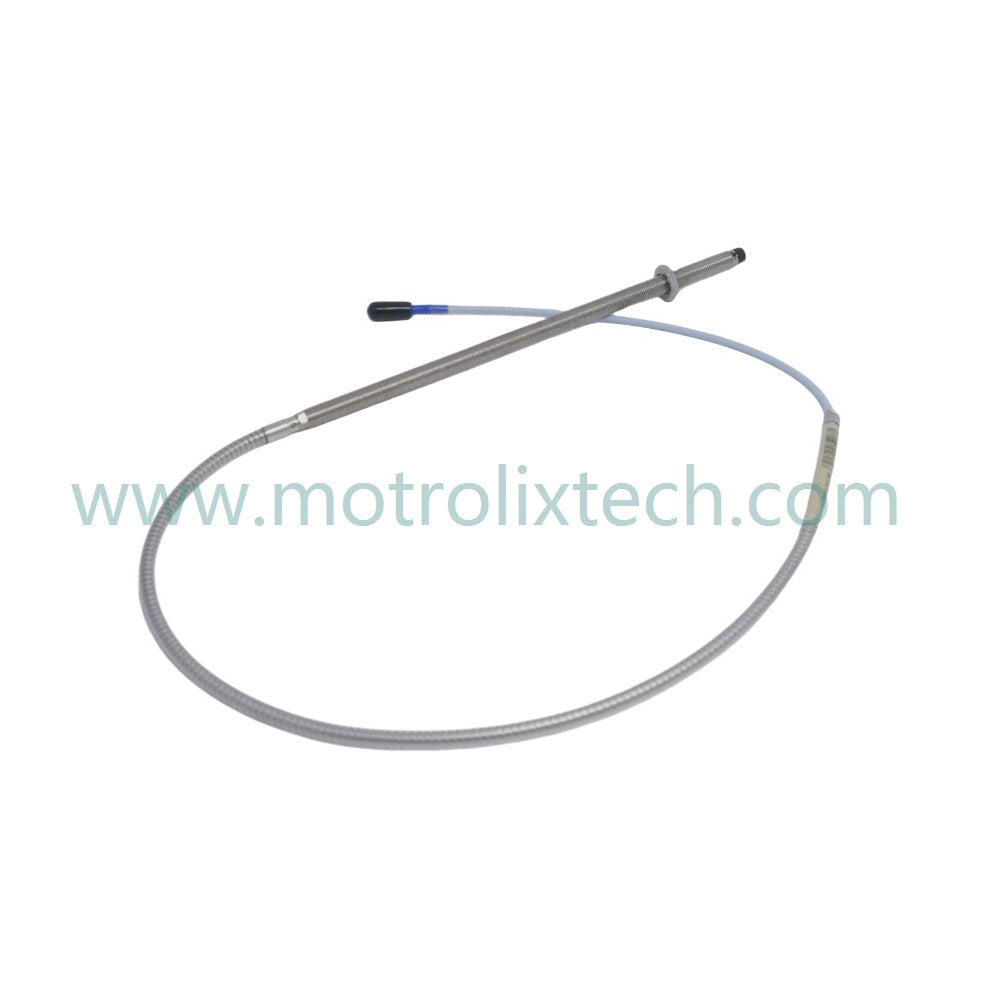

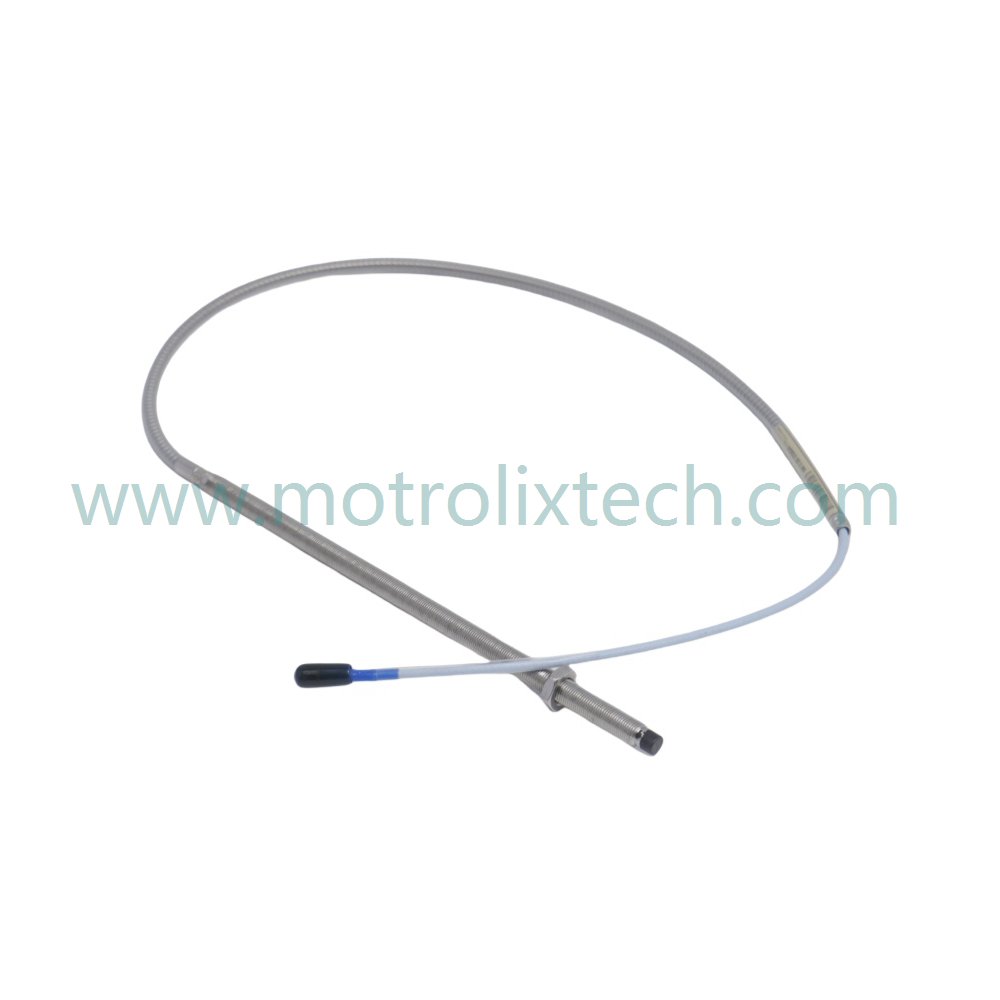

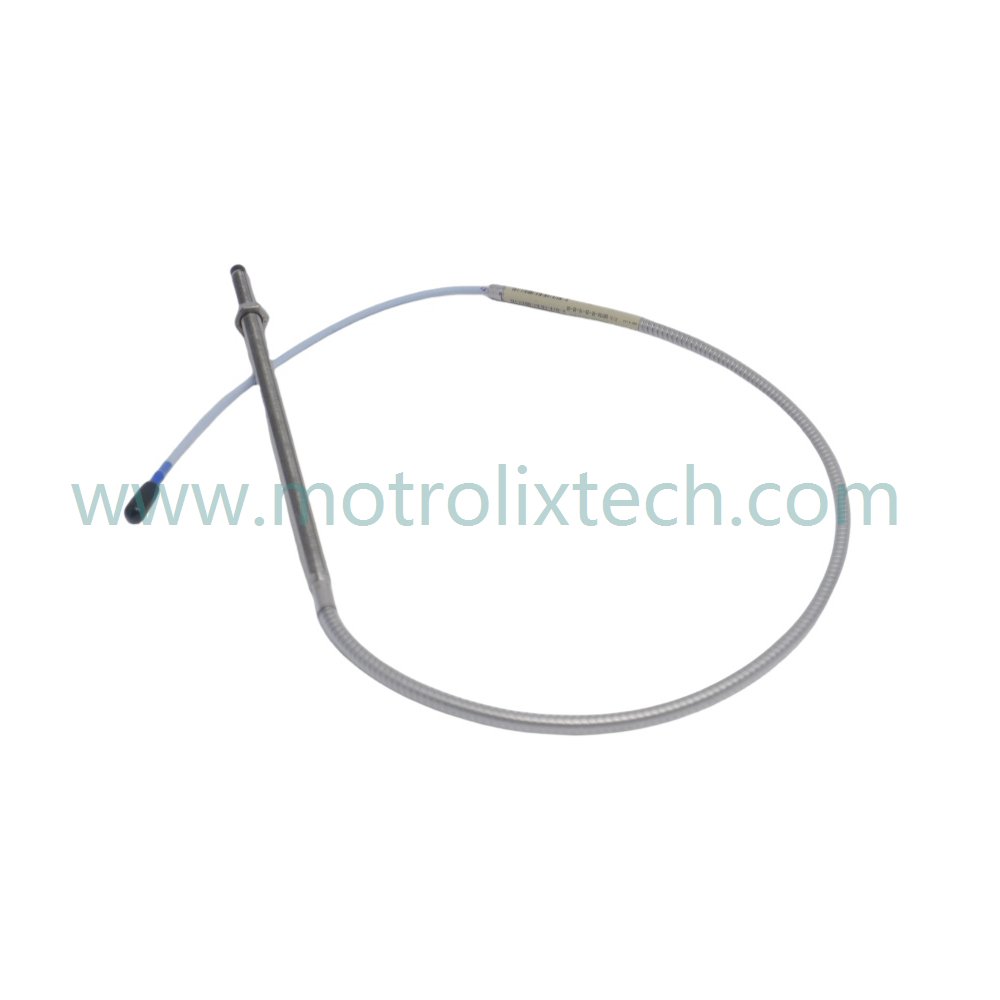

The Bently Nevada 330104-00-25-10-12-00 Proximity Probe is engineered for high-precision displacement and vibration measurements essential in monitoring large rotating machinery such as turbines and reciprocating compressors. This probe excels in demanding industrial environments, delivering accurate measurements and superior reliability, making it a crucial component in condition-based maintenance systems.
Designed with a robust M10 x 1 threaded connection and protective armor, this proximity probe ensures durability and seamless integration into various mechanical setups. Weighing only 0.14 kg and featuring a compact design with a total cable length of 1.0 meter (3.3 feet), the 330104-00-25-10-12-00 provides flexibility in installation while maintaining high performance standards throughout its operation.
The model number 330104-00-25-10-12-00 can be analyzed as follows:
330104: Indicates the specific part of the Bently Nevada 3300 Series.
00: Refers to standard features or configurations.
25: Represents the overall case length of 250 mm.
10: Denotes the unthreaded length of the probe.
12: Indicates specific design features related to the probe.
00: Often signifies a variant or range specification.
| Parameter | Specification |
|---|---|
| Model Number | 330104-00-25-10-12-00 |
| Module Type | Proximity Probes |
| Manufacturer | Bently Nevada |
| Condition | Brand New |
| Range of Product | 3300 XL Proximity Transducer System |
| Lead Time | In Stock |
| Weight | 0.14 kg |
| HS CODE | 8537101190 |
| Dimensions | 20.3 x 22 x 3.5 cm |
| Minimum Order Quantity (MOQ) | 1 |
| Product Origin | USA |
| System Compatibility | TSI |
| Discontinued | Active |
| Communication Service | Ethernet router |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Linear Range | 1.5 mm |
| Cable Length | 1.0 m (3.3 feet) |
| Material | Durable construction with protective armor |
To ensure optimal performance of the Bently Nevada 330104-00-25-10-12-00 Proximity Probe, follow these guidelines:
Secure Mounting: Ensure the probe is securely attached to prevent misalignment and ensure accurate readings.
Cable Management: Route the 1.0-meter cable to minimize bends and avoid stress points.
Connector Verification: After installation, ensure the ClickLoc connector is securely fastened to maintain signal integrity.
Environmental Protection: Confirm that the installation area provides suitable protection against dust and moisture to maintain performance reliability.
The Bently Nevada 330104-00-25-10-12-00 Proximity Probes provide numerous benefits for industrial applications:
Durability in Extreme Conditions: Designed with protective armor and compliant with API 670 standards, this probe operates effectively in harsh environments, ensuring longevity and reliability.
High Sensitivity: With an average scale factor of 7.87 V/mm, this probe captures small displacement variations, providing precise vibration measurements critical for predictive maintenance.
Modular Design: Its interchangeable design allows for easy integration and maintenance with other 3300 XL components without the need for recalibration.
Lightweight and Compact: The probe's low weight and compact dimensions make it easy to handle and install without sacrificing robustness.
Q1: What types of applications is the Bently Nevada 330104-00-25-10-12-00 Proximity Probe best suited for?
A1: This probe is ideal for monitoring large rotating machinery such as turbines, compressors, and pumps, providing essential data for condition monitoring.
Q2: How does the ClickLoc connector improve installation?
A2: The ClickLoc connector simplifies the installation process by ensuring a secure connection without the need for special tools, reducing the risk of disconnections.
Q3: What is the significance of the probe's sensitivity and scale factor?
A3: The sensitivity of 7.87 V/mm means the probe can detect small displacements effectively, enhancing its ability to monitor critical machinery and prevent faults.
Q4: How is this probe designed for durability in harsh environments?
A4: The probe features a robust M10 x 1 threaded design with protective armor to withstand extreme conditions, adhering to API standards for reliable operation.
Q5: Can this probe integrate with older Bently Nevada systems?
A5: Yes, the probe is designed to be modular and compatible with existing Bently Nevada 3300 series components, facilitating seamless integration and upgrades.
