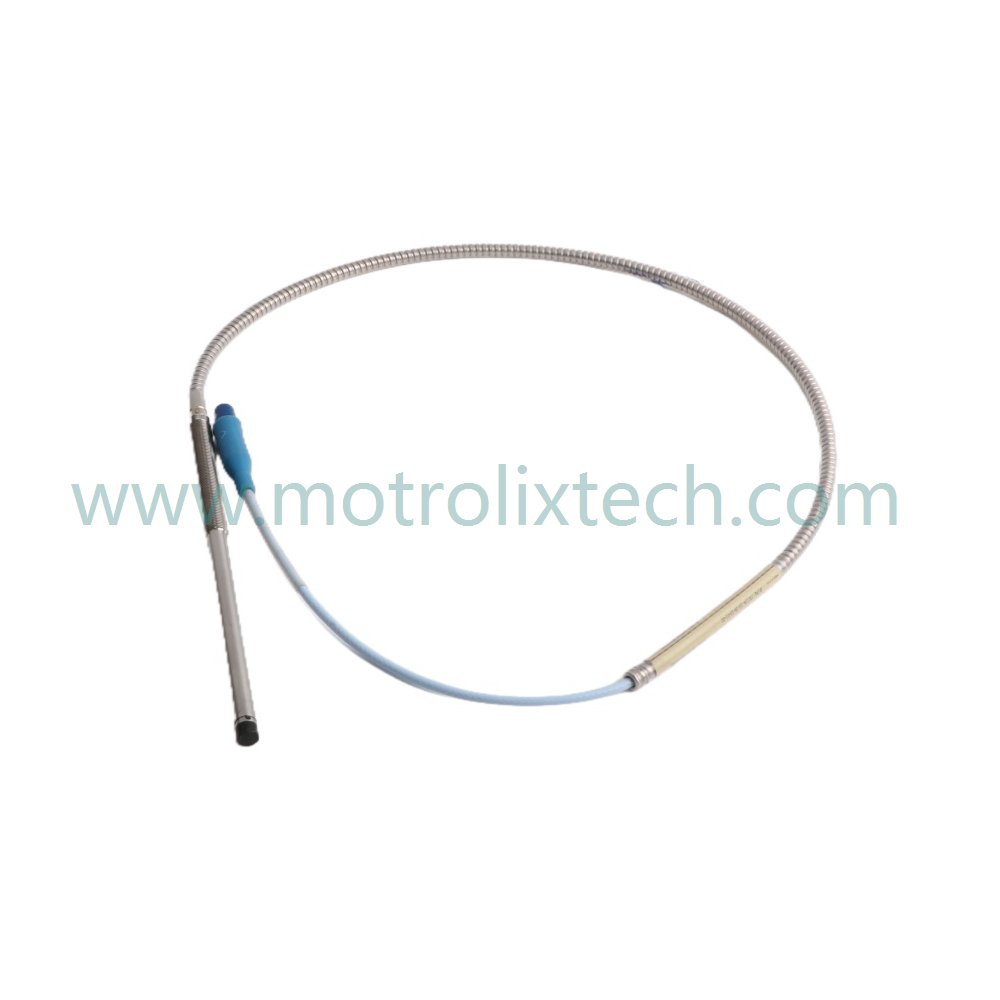

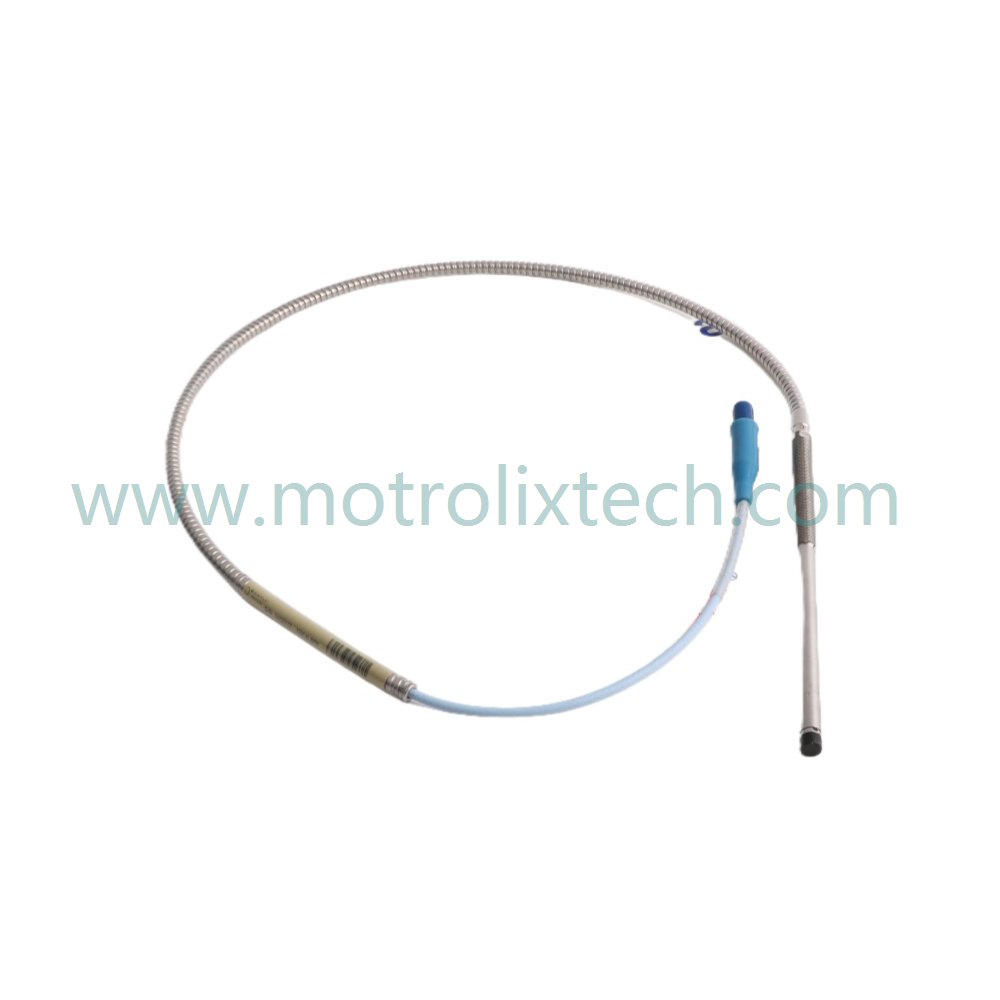

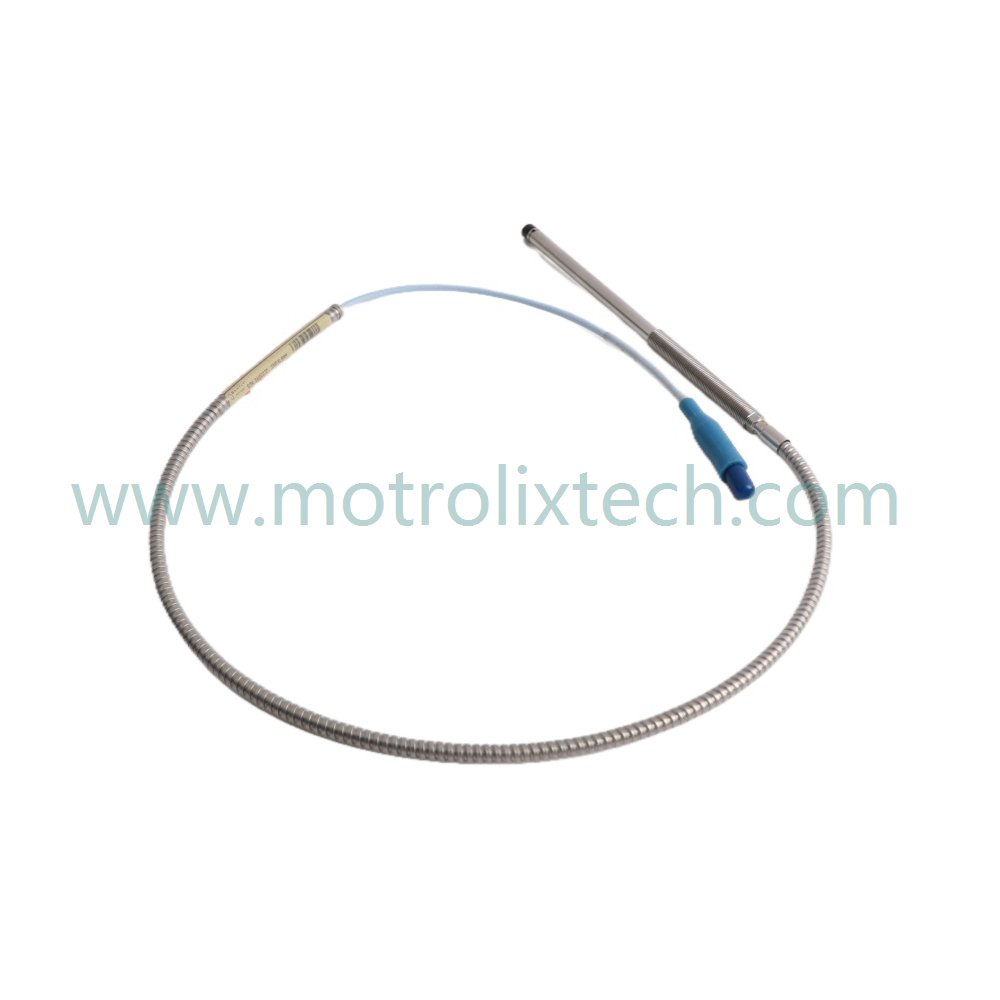

The Bently Nevada 330104-10-19-10-02-00 3300 XL 8 mm Proximity Probe is engineered for critical machinery monitoring in demanding industrial environments. This rugged, armored probe is ideal for monitoring large rotating equipment such as turbines and compressors. It features an M10x1 threaded design, ensuring robust installation while delivering precise vibration and position measurements.
The probe utilizes a 1.0 meter standard cable equipped with a miniature ClickLoc connector to facilitate secure signal transmission in high-vibration settings. Its design complies with API 670 standards, making it a reliable choice for protecting rotating equipment under various operational conditions.
The model number 330104-10-19-10-02-00 contains specific information about the probe’s features:
330104: Identifies the product line within Bently Nevada focused on high-performance proximity sensing.
10: Indicates a specific characteristic of the probe, such as an enhanced design feature.
19: Refers to the armored case length in millimeters.
10: Represents the unthreaded length in millimeters.
02: Denotes standard model specifications and compliance characteristics.
00: Indicates the configuration type for installation compatibility.
| Parameter | Specification |
|---|---|
| Model Number | 330104-10-19-10-02-00 |
| Module Type | 3300 XL 8 mm Proximity Probes |
| Manufacturer | Bently Nevada |
| Condition | Brand New |
| Range of Product | 3300 Series |
| Lead Time | In Stock |
| Weight | 0.14 kg |
| HS CODE | 8537101190 |
| Dimensions | 20.5 x 22.5 x 3.5 cm |
| Minimum Order Quantity (MOQ) | 1 |
| Product Origin | USA |
| System Compatibility | TSI |
| Discontinued | Active |
| Communication Service | Ethernet router |
| Operating Voltage | -24V DC |
| Operating Temperature Range | -40°C to +120°C |
| Certifications | CSA, ATEX, IECEx |
To optimize the performance of the Bently Nevada 330104-10-19-10-02-00 Proximity Probe, follow these installation recommendations:
Secure Mounting: Ensure the M10x1 threaded connection is firmly attached to guarantee accurate measurements without vibration interference.
Voltage Gap Settings: Properly configure the voltage to maintain accurate measurements between the probe tip and the observed surface.
Cable Management: Avoid sharp bends in the cable during installation to protect signal integrity and prevent potential damage.
Grounding Practices: Implement effective grounding techniques to reduce electromagnetic noise, which can affect measurement accuracy.
The Bently Nevada 330104-10-19-10-02-00 Proximity Probe offers numerous benefits for industrial applications:
Rugged Construction: Designed to withstand harsh conditions, the probe features an armored design that protects against physical damage and enhances durability.
Wide Operating Range: This probe operates efficiently in extreme temperatures, ranging from -40°C to +120°C, making it suitable for diverse industrial environments.
High Sensitivity: The probe delivers precise measurements, ensuring reliable data essential for effective machinery monitoring.
International Certifications: The probe carries multiple safety approvals, including CSA, ATEX, and IECEx, confirming its suitability for hazardous area applications.
Overall, the Bently Nevada 330104-10-19-10-02-00 Proximity Probe is a dependable solution for industrial vibration monitoring, providing essential protection for critical equipment in sectors such as power generation, oil and gas, and heavy manufacturing.
Q1: What types of applications is the Bently Nevada 330104-10-19-10-02-00 Probe designed for?
A1: This probe is ideal for monitoring vibration and position in large rotating machinery, including turbines, compressors, and generators.
Q2: How does this probe maintain measurement accuracy?
A2: The probe utilizes high-quality sensor technology and rugged construction to ensure consistent performance across a wide range of operating conditions.
Q3: Can the probe be integrated into existing systems easily?
A3: Yes, it is designed for compatibility with the Bently Nevada 3300 XL monitoring systems, facilitating easy installation and upgrades.
Q4: What are the key considerations during installation?
A4: Ensure secure mounting, maintain proper voltage settings, manage cable routing to avoid damage, and implement effective grounding practices for optimal performance.
Q5: Is the probe suitable for use in hazardous environments?
A5: Yes, it meets strict safety standards and is certified for use in hazardous areas, ensuring reliable operation in demanding industrial settings.
