Product Overview

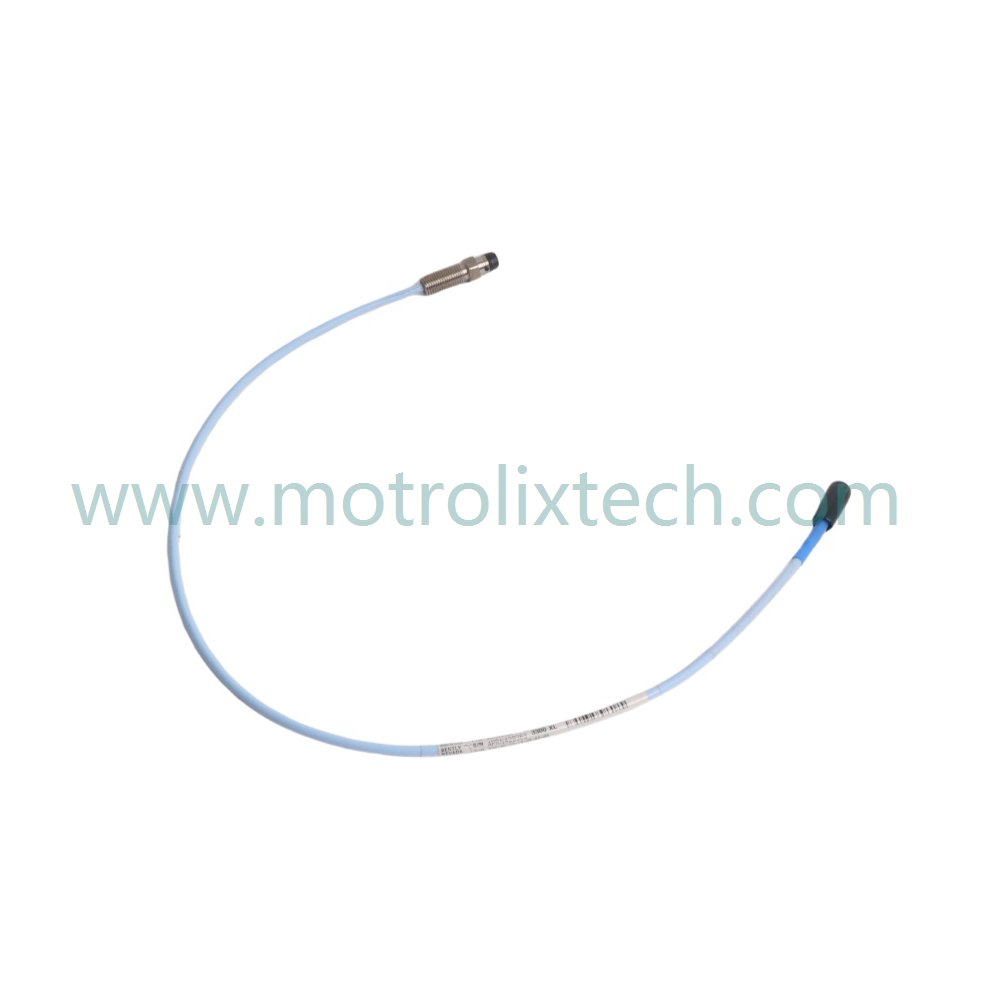

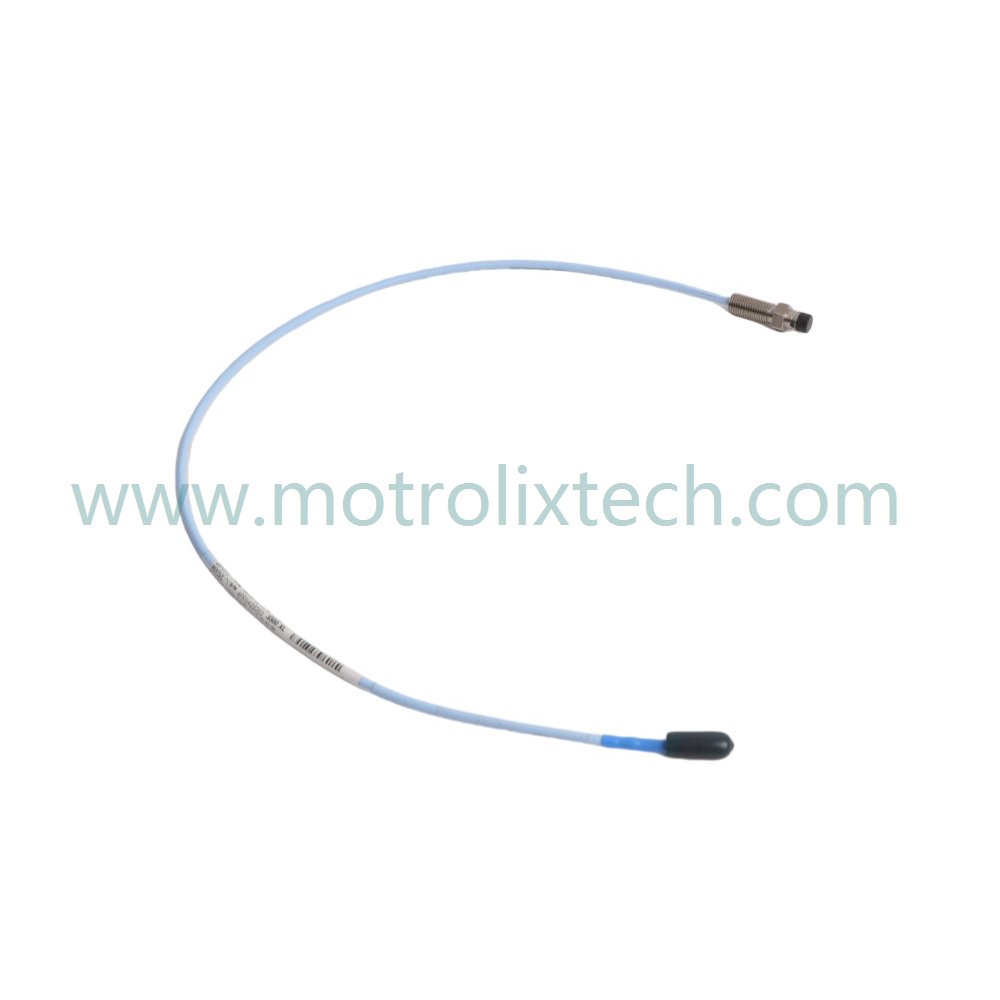

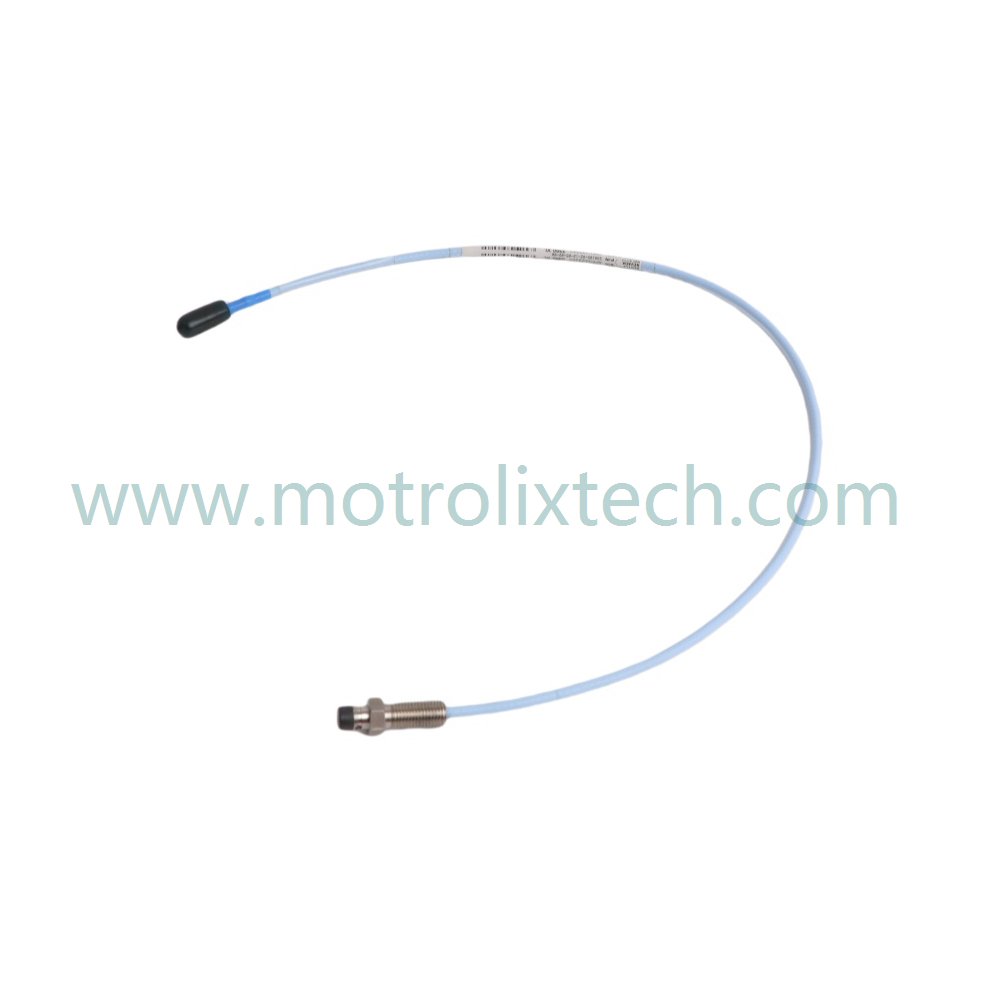

The Bently Nevada 330105-02-12-05-02-01 3300 XL 8 mm Reverse Mount Probe is engineered for extreme temperature environments, supporting operation up to 260°C (500°F). Designed to overcome thermal limits of conventional probes, it delivers reliable vibration and position monitoring for gas turbines, steam turbines, and other high-heat industrial equipment.

Technical Specifications

• Model Number: 330105-02-12-05-02-01

• Product Series: 3300 XL

• Module Type: 8 mm Reverse Mount Probe (Extended Temperature Range)

• Weight: 0.04 kg

• Dimensions: 58.5 × 1.5 × 1.5 cm

• Lead Time: In Stock – ready for fast shipping

• HS Code: 8537101190

• Product Origin: USA

• System Compatibility: Bently Nevada TSI / 3300 Proximity Transducer System

• Communication Service: Ethernet router compatible

• Operating Temperature: Up to 260°C (500°F) with ETR cable

• Cable Length: 12 inches (approx. 30.5 cm) high-temperature cable

• Connector: Miniature ClickLoc coaxial (3/8-24 UNF threaded)

• Applications: High-temperature machinery such as gas turbines, steam turbines, and industrial rotating equipment

Model Code Breakdown

• 330105: Base series for 3300 XL proximity probes with R mount

• -02: Hardware revision or variant

• -12: Sensor measurement parameters

• -05: Lead length (0.5 meter cable equivalent)

• -02: Connector type (ClickLoc coaxial)

• -01: Factory or regional customization

This code clarifies probe design, cable, and connection details for precise system matching.

Installation Recommendations & Wiring Guide

• Mounting: Secure the reverse mount probe following Bently Nevada guidelines ensuring proper shaft clearance and alignment.

• Cable Routing: Use the 12-inch high-temperature cable rated for up to 260°C; route carefully avoiding sharp bends or excessive vibration points.

• Connector Handling: Ensure ClickLoc connectors are fully engaged and gold-plated surfaces remain clean for optimal signal integrity.

• System Integration: Compatible with standard 3300 XL components; when mixed with ETR parts, ensure system calibration to ETR specs.

• Maintenance: Regular inspection advised for thermal cycling effects on cable and connector condition.

FAQ — Common Questions

Q: What makes this probe suitable for high-temperature environments?
A: Designed with extended temperature range components and a high-temp cable rated up to 260°C (500°F).

Q: Is this a genuine Bently Nevada product with immediate availability?
A: Yes, it is brand new, authentic, and in stock with fast shipping options.

Q: Can it be used with existing 3300 XL systems?
A: Yes, fully compatible, with system accuracy adjusted to ETR specs when mixed.

Q: What applications benefit most from this probe?
A: Gas turbines, steam turbines, and similar equipment exposed to extreme heat.

Q: How does the ClickLoc connector enhance performance?
A: Provides secure, vibration-resistant connection with gold plating for corrosion resistance.

For detailed installation and technical guidance, consult official Bently Nevada documentation or authorized service partners.
