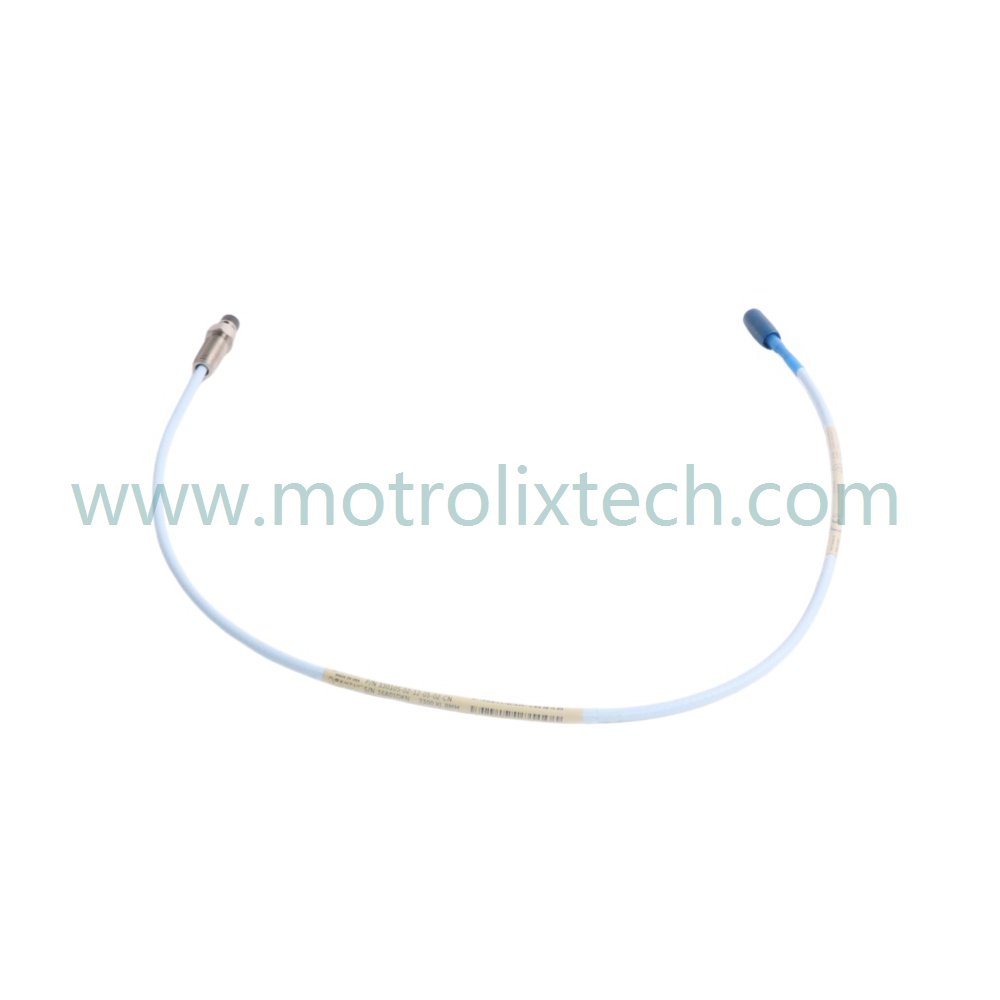

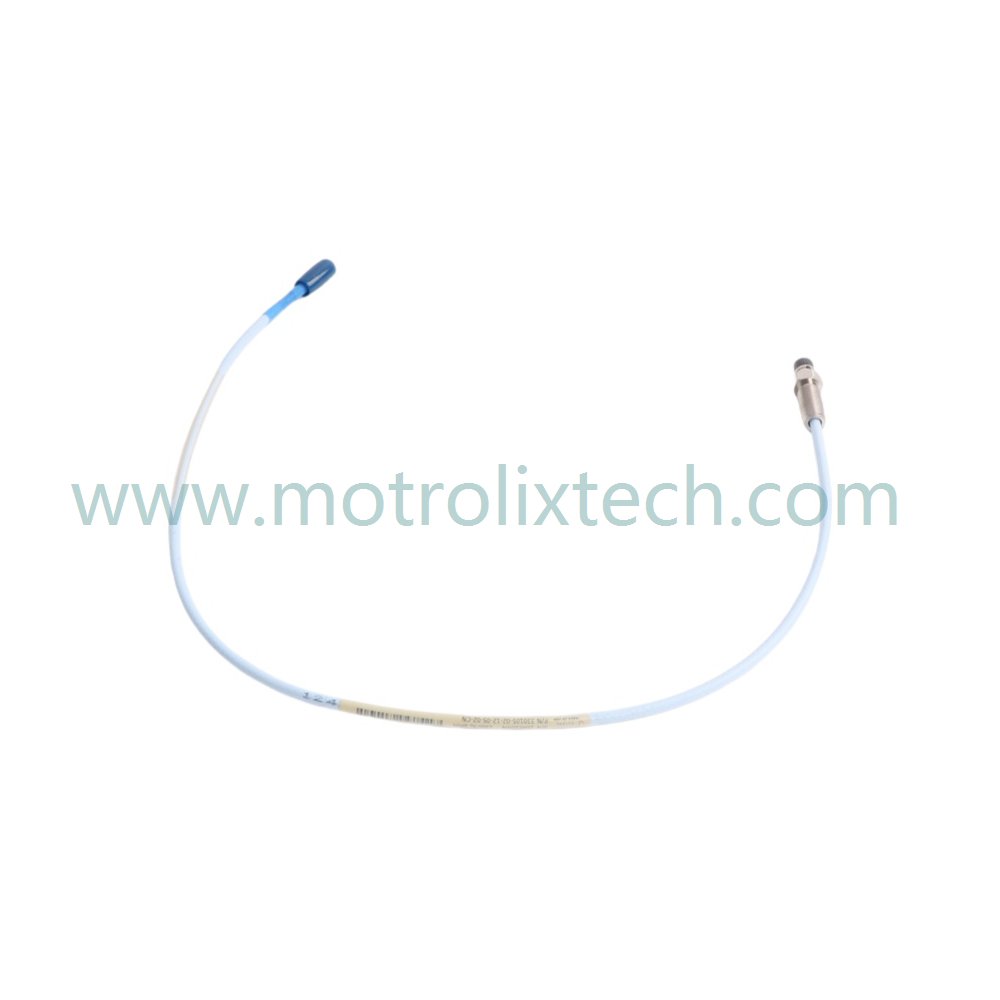

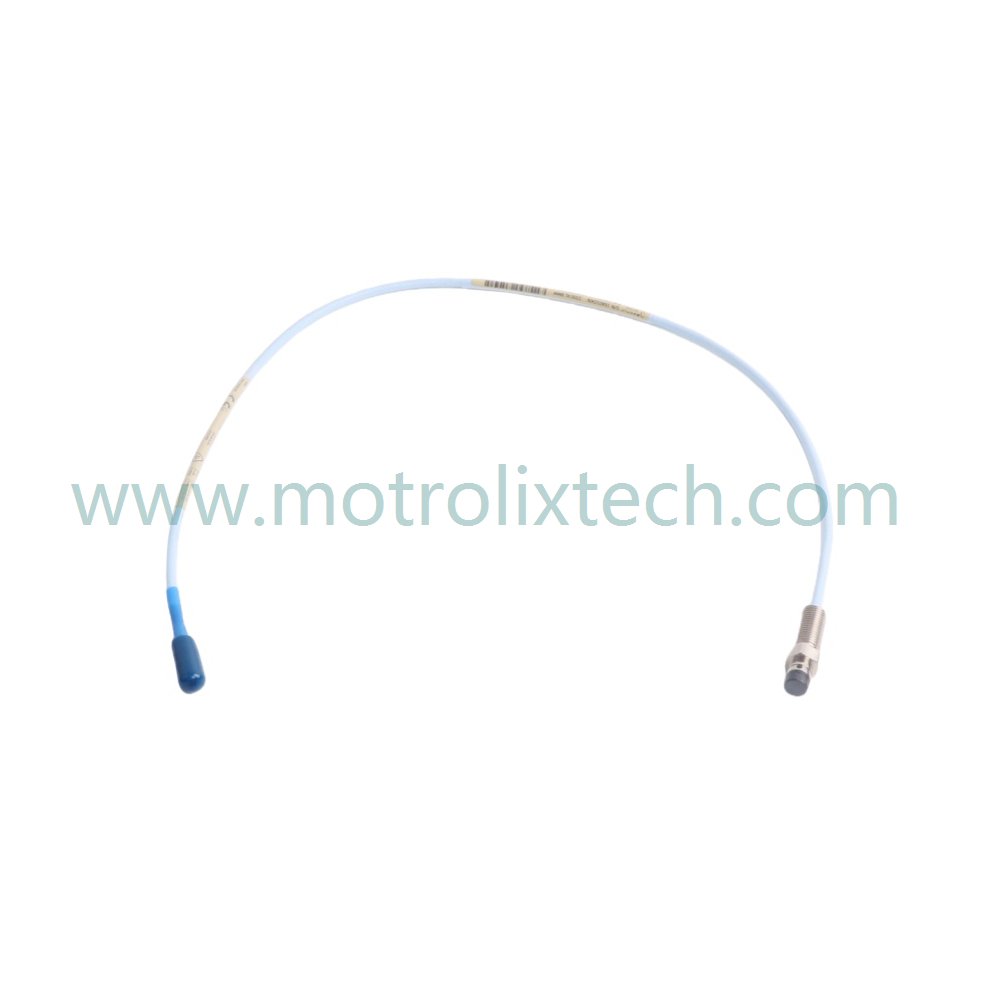

The Bently Nevada 330105-02-12-05-02-CN 3300 XL 8 mm Reverse Mount Probe is engineered for high-precision vibration monitoring in space-constrained industrial applications. This specialized probe employs a reverse mount configuration, making it ideal for challenging installations where traditional mounting methods are not feasible. With its robust design, this probe excels in providing accurate measurements for critical rotating machinery such as turbines and compressors.
Featuring 3/8-24 UNF threads and a compact 0.5-meter cable, the reverse mount probe offers flexible installation options without compromising on reliability. Its miniature ClickLoc coaxial connector ensures secure and vibration-resistant signal transmission, making it a dependable solution in demanding environments.
The model number 330105-02-12-05-02-CN conveys key specifications about its features:
330105: Indicates that this probe is part of Bently Nevada's prestigious 3300 series, specifically designed for 8 mm applications.
02: Refers to the category of the probe within this product series.
12: Denotes the cable length of 0.5 meters, providing flexibility for various installation scenarios.
05: Highlights specific design features tailored for reverse mounting applications.
02: Signifies compliance with industry standards for performance and reliability.
CN: Indicates the market for which this model is particularly targeted, often denoting a version suited for users in China.
| Parameter | Specification |
|---|---|
| Model Number | 330105-02-12-05-02-CN |
| Module Type | 3300 XL 8 mm Reverse Mount Probe |
| Manufacturer | Bently Nevada |
| Condition | Brand New |
| Range of Product | 3300 XL Proximity Transducer System |
| Lead Time | In Stock |
| Weight | 0.18 kg |
| HS CODE | 8537101190 |
| Dimensions | 20.5 x 22.4 x 3.3 cm |
| Minimum Order Quantity (MOQ) | 1 |
| Product Origin | USA |
| System Compatibility | TSI |
| Discontinued | Active |
| Communication Service | Ethernet router |
| Cable Length | 0.5 meters (approximately 1.64 feet) |
| Thread Type | 3/8-24 UNF |
To ensure optimal performance of the Bently Nevada 330105-02-12-05-02-CN Reverse Mount Probe, follow these detailed installation guidelines:
Mechanical Clearance: Ensure adequate space around the installation site to facilitate proper mounting and avoid interference with surrounding equipment.
Wiring Connections: Use the ClickLoc connector to securely attach the probe, ensuring all connections are tight to prevent signal loss from vibrations.
Bend Radius: Follow the specified guidelines for the minimum bend radius of the cable during installation to maintain signal integrity.
Environmental Considerations: Install the probe in areas with reduced exposure to moisture and extreme temperatures to prolong equipment life.
Consultation: For complex installations or troubleshooting, reach out to Bently Nevada’s technical support for guidance.
The Bently Nevada 330105-02-12-05-02-CN Reverse Mount Probe is designed for durability and reliability in extreme industrial conditions. Its compact design allows for installation in tight spaces without losing measurement accuracy, making it ideal for various OEM applications and retrofit installations.
This probe features enhanced resistance to radio frequency interference (RFI) and electromagnetic interference (EMI), ensuring stable operation even near variable frequency drives or high-power electrical equipment. This capability reduces the need for extra shielding, simplifying installation and lowering overall costs while maintaining high signal integrity.
Q1: What applications are best suited for the Bently Nevada 330105-02-12-05-02-CN Reverse Mount Probe?
A1: This probe is optimized for vibration monitoring in industrial applications where space is constrained, particularly suitable for use in turbines and reciprocating compressors.
Q2: How does the reverse mount design enhance installation options?
A2: The reverse mount design accommodates installations where traditional mounting methods are impractical, allowing for greater flexibility in various industrial environments.
Q3: What benefits does the ClickLoc connector provide?
A3: The ClickLoc connector ensures secure, vibration-resistant connections that mitigate the risk of signal loss and enhances overall system reliability.
Q4: Is the probe compatible with existing Bently Nevada systems?
A4: Yes, the probe is designed to integrate seamlessly with the 3300 XL Proximity Transducer System and is fully compatible with other Bently Nevada products.
Q5: What makes this probe a smart choice for retrofit installations?
A5: Its compact design, high precision, and robust construction make it ideal for retrofitting existing machinery, ensuring improved performance without requiring significant alterations to installation setups.
