Product Overview

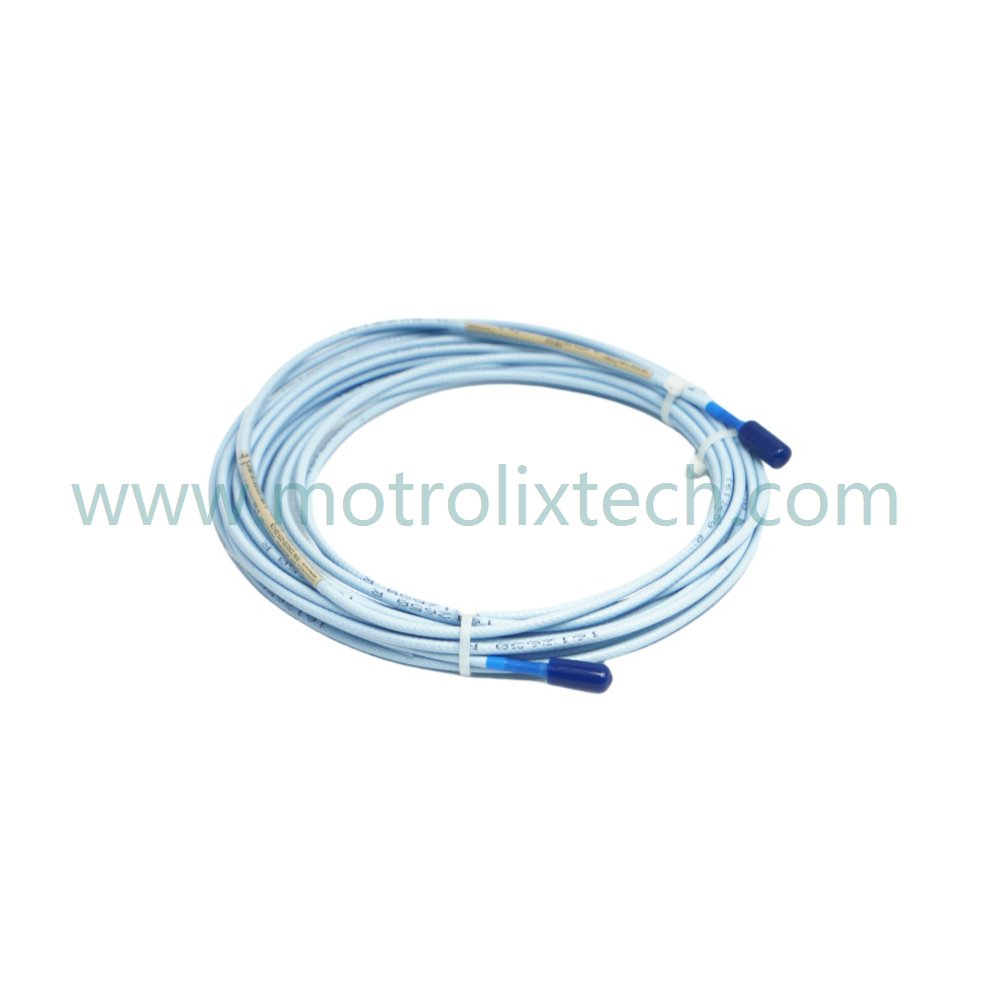

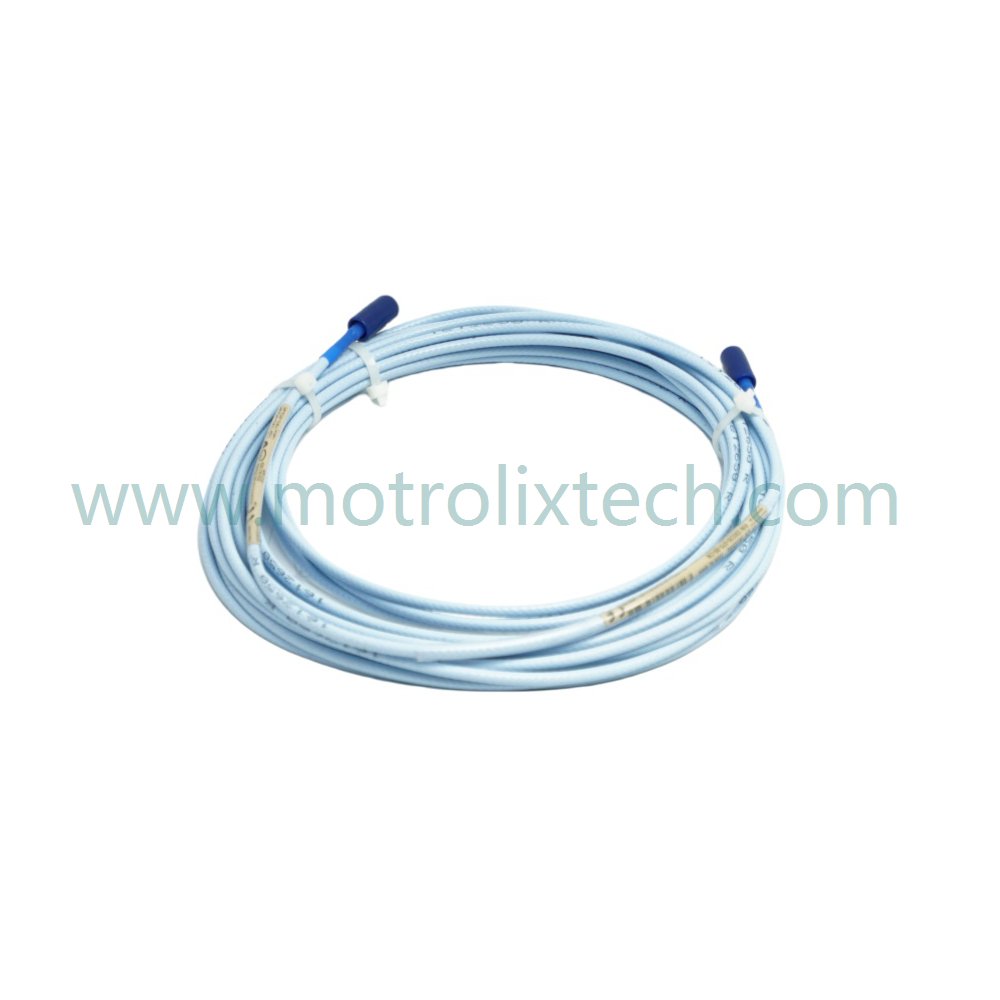

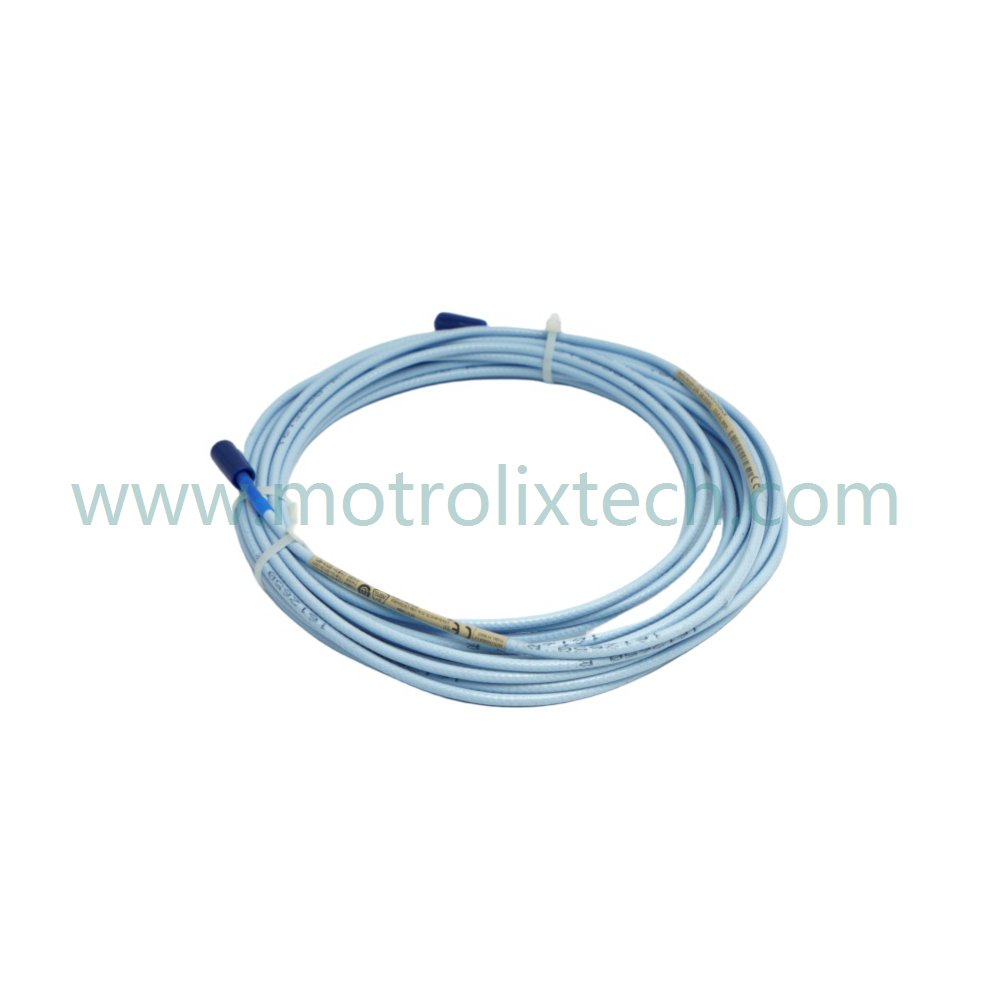

The Bently Nevada 330130-075-00-CN 3300 XL 8mm Probe Extension Cable is meticulously engineered to provide robust and reliable performance in demanding industrial applications. This extension cable is ideal for connecting 3300 XL 8mm Proximity Probes, ensuring precise signal transmission for effective machinery monitoring and control. Designed for enduring durability, the 330130-075-00-CN performs excellently in harsh environments, making it a crucial component for machinery health management systems.
Featuring a rugged DB9 connector, the cable guarantees seamless compatibility with major Programmable Logic Controllers (PLCs) and automation systems. This compatibility enhances overall system efficiency, streamlining operations amidst critical industrial processes. Able to withstand extreme temperatures from -40°C to +70°C, the advanced polyurethane insulation provides excellent electrical protection and exceptional resistance to chemicals and abrasions, ensuring consistent operation even in challenging conditions.
Technical Specifications
| Feature | Specification |
|---|---|
| Model Number | 330130-075-00-CN |
| Module Type | Extension Cable |
| Weight | 0.26 kg |
| Dimensions | 19.5 cm x 18.8 cm x 2.8 cm |
| Lead Time | In Stock |
| HS CODE | 8537101190 |
| Product Origin | USA |
| System Compatibility | TSI |
| Communication Service | Ethernet router |
Model Code Breakdown: 330130-075-00-CN
The model number 330130-075-00-CN reveals significant insights into the extension cable's specifications:
330130: Base model number indicating it is part of the Bently Nevada 3300 series for proximity probes.
075: Specifies the length of this particular extension cable, confirming it is designed for optimum connectivity and versatility.
00: Indicates that the cable is a standard version without specialized features.
CN: Denotes that this version is intended for use in specific applications, providing clear identification for system integration.
Installation & Wiring Guidelines
To ensure optimal performance and longevity of the Bently Nevada 330130-075-00-CN Extension Cable, adhere to the following installation guidelines:
Connection Setup: Securely connect the DB9 connector to the appropriate PLC or control system, ensuring tight connections to avoid signal loss.
Cable Routing: When installing the cable, plan an optimal routing path to minimize sharp bends and avoid exposure to mechanical stress. This will protect the integrity of the cable over time.
Cable Maintenance: Regularly inspect the cable for signs of wear, especially at connection points. Ensure the cable is free from chemical exposure that could degrade the insulation.
Testing: Conduct a system functionality test to confirm that signal transmission is reliable and that the system operates as expected after installation.
FAQ: Frequently Asked Questions
What is the main function of the Bently Nevada 330130-075-00-CN?
This extension cable serves as a connector for 3300 XL 8mm Proximity Probes to ensure efficient signal transmission in industrial monitoring systems.
How much does this extension cable weigh?
The cable weighs approximately 0.26 kg, making it easy to handle during installation.
What are the dimensions of the 330130-075-00-CN?
The dimensions are 19.5 cm x 18.8 cm x 2.8 cm, making it compact yet robust for various applications.
What temperature range does this cable support?
It operates reliably in temperatures ranging from -40°C to +70°C, suitable for tough industrial environments.
In which applications is the Bently Nevada 330130-075-00-CN commonly used?
It is typically used for machinery monitoring, control system integration, and applications where reliable signal transmission is critical.
