Overview

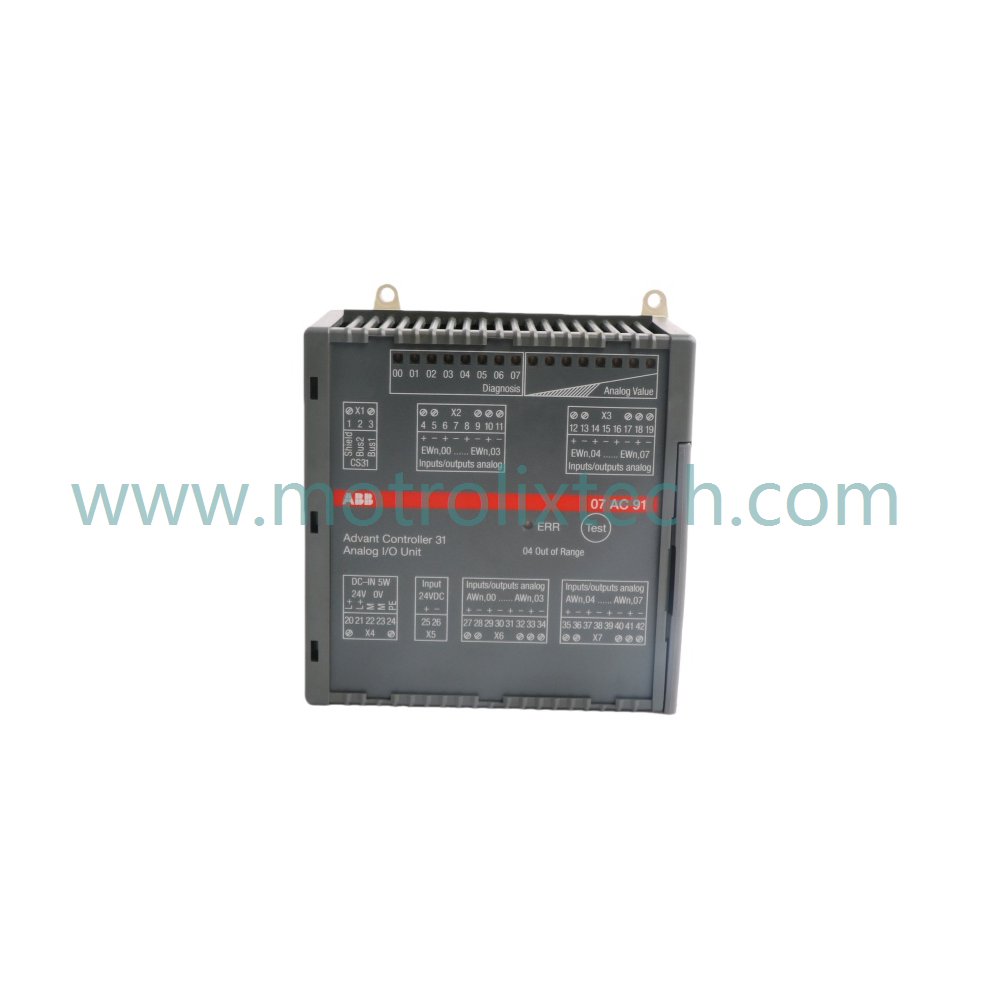

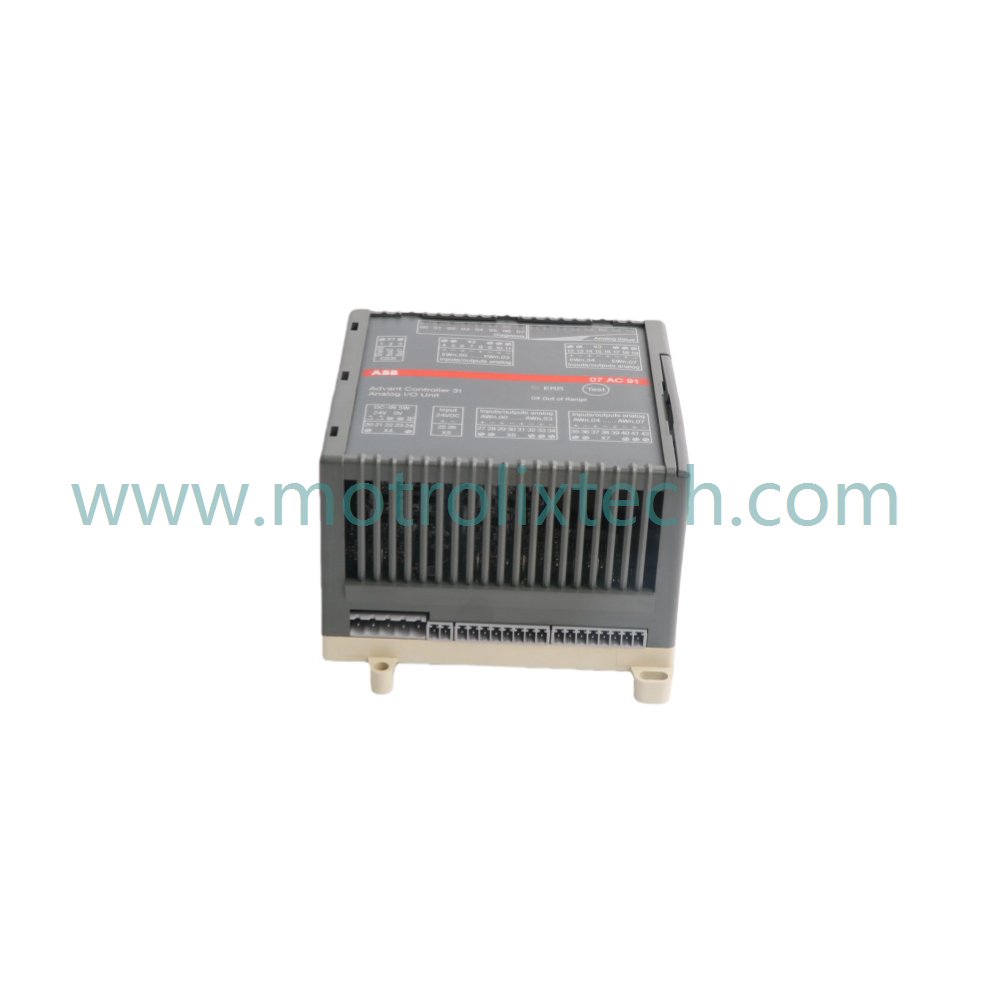

The ABB 07AC91 GJR5252300R0101 Analog I/O Module is a sophisticated and versatile component designed specifically for the Advant Controller 31 (AC31) system. As a remote I/O unit on the CS31 system bus, this module serves as a crucial interface for connecting a variety of analog field devices to the digital control system, enabling precise data acquisition and output management.

Functional Highlights

This analog I/O module provides 16 configurable analog channels that support both voltage and current signals, offering flexibility for various process measurement and control applications. The 07AC91 module can operate in dual modes, allowing configuration for either 12-bit resolution with eight inputs and eight outputs, or 8-bit resolution for all sixteen channels configurable in pairs. This adaptability ensures it meets diverse application requirements, from high-precision measurements to general control tasks.

Moreover, configuration is simplified through the use of DIL switches, making installation and setup procedures straightforward while guaranteeing reliable operation.

The electrical design features a 24 V DC operating voltage with electrical isolation between the CS31 system bus and the analog circuits. This design protects the control system from electrical disturbances, ensuring of signal integrity in noisy industrial environments. The module also includes comprehensive diagnostic capabilities for continuous monitoring, thus facilitating quick troubleshooting and maintenance.

Technical Data

• Model Number: 07AC91 GJR5252300R0101
• Module Type: Analog I/O Module
• Manufacturer: ABB
• Condition: Brand New
• Range of Product: ABB
• Weight: 1.22 kg
• Dimensions: 24 x 19 x 5.3 cm
• HS CODE: 8537101190
• System: DCS
• Status: Active
• Minimum Order Quantity: 1
• Product Origin: Sweden
• Communication Service: Ethernet router

Typical Applications

The ABB 07AC91 GJR5252300R0101 Analog I/O Module is suitable for a wide range of applications, including:

• Integration with Advant Controller systems for timely and accurate measurements
• Connecting analog sensors and actuators in process automation systems
• Applications that require robust signal processing capabilities
• Environments where reliable monitoring and control are critical
