Overview

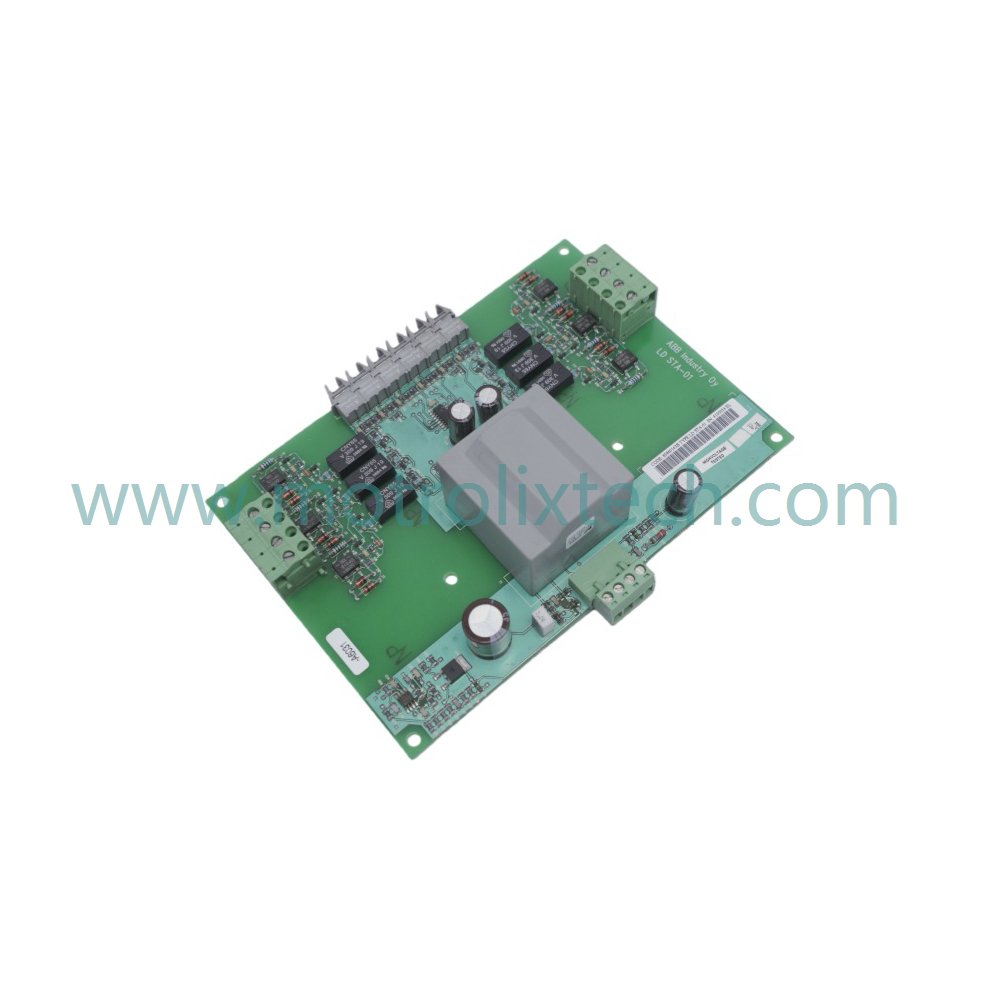

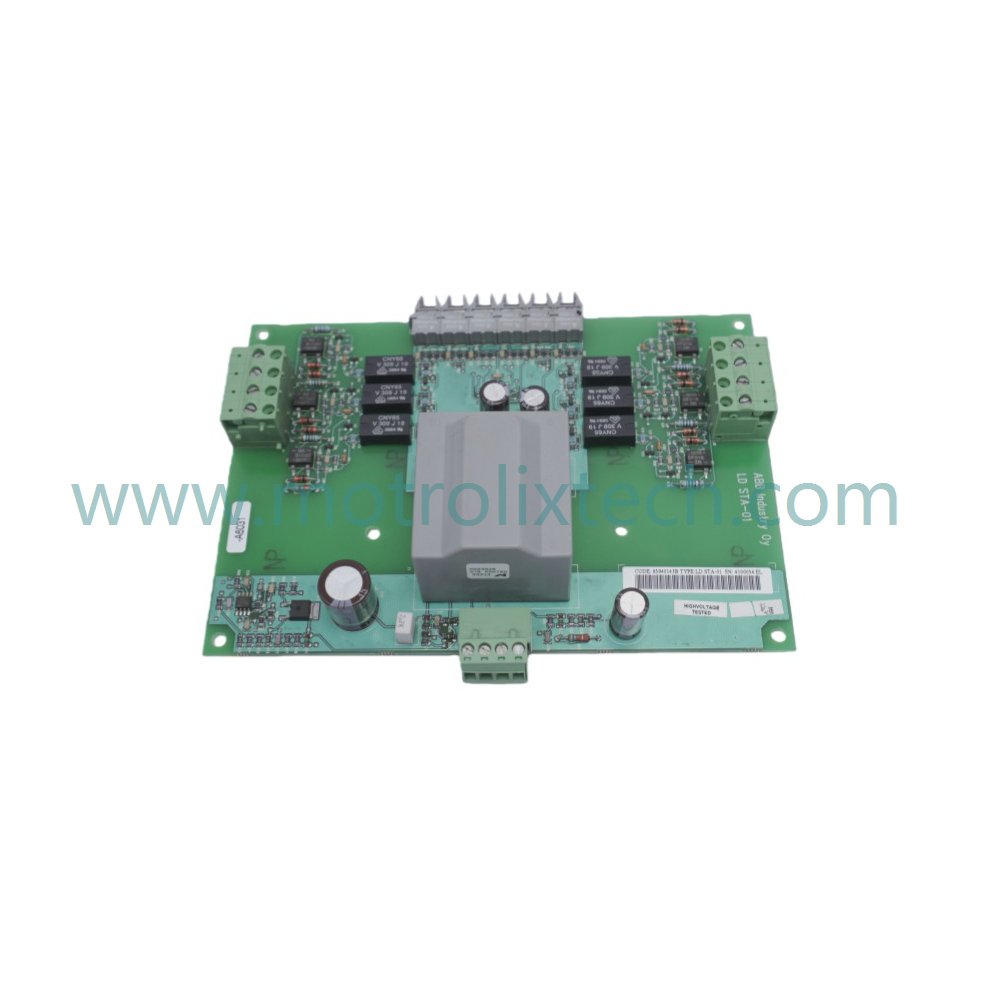

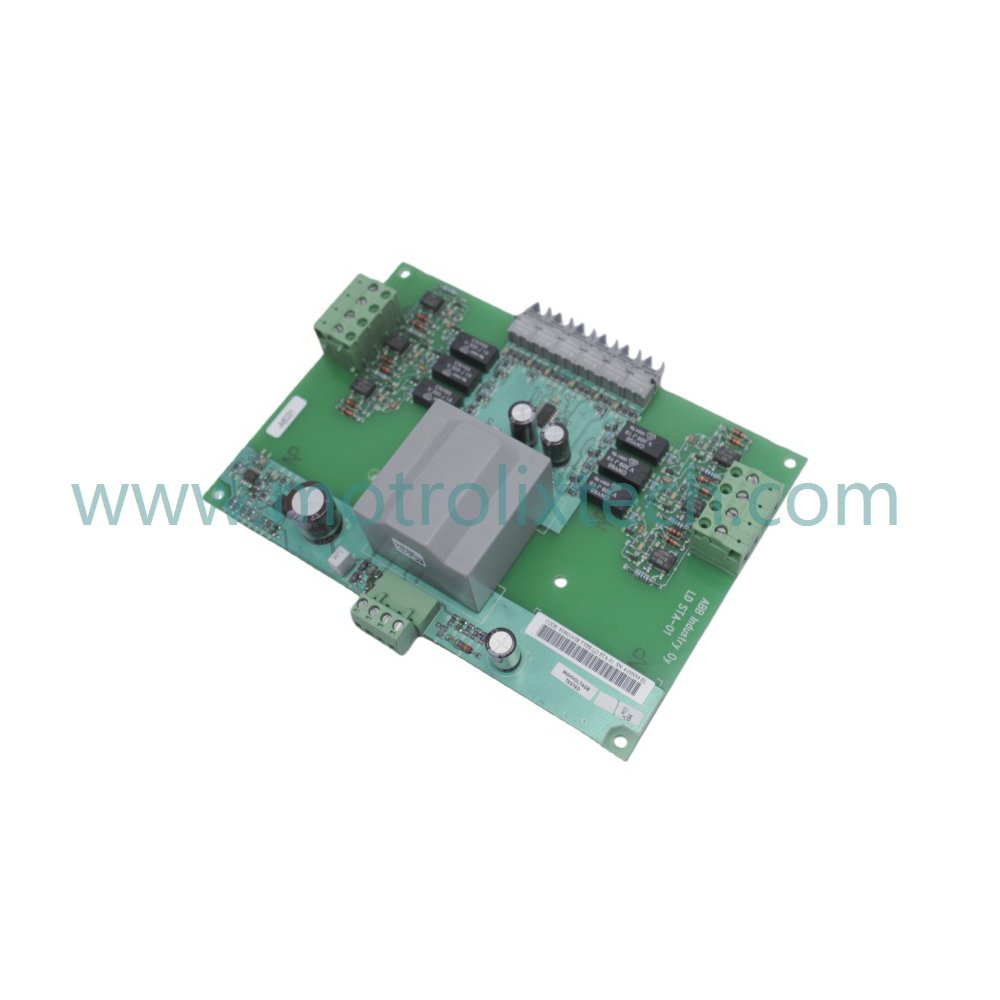

The ABB LDSTA-01 63940143B Analog Input Module is a specialized status monitoring board designed to provide critical operational data in industrial automation environments. This compact module integrates seamlessly into ABB's industrial control systems, offering 24V DC digital input channels with flexible sinking and sourcing configurations. Its robust construction ensures reliable performance across a wide operating temperature range of -25°C to +70°C.

Functional Highlights

Engineered for efficient power management, the LDSTA-01 operates on a 24V DC power supply, consuming between 3 to 8 watts. It features electrical isolation protection rated at 500-1500V AC, enhancing system safety. The module’s streamlined dimensions (24 x 19 x 5.3 cm) and lightweight design of 1.22 kg facilitate easy integration into control panels and equipment racks, which is crucial for installations constrained by physical space.

Moreover, the application versatility of the LDSTA-01 extends across various industrial sectors, contributing significantly to thyristor control systems and power management applications. Accurate status monitoring is vital for operational safety and equipment protection, making the LDSTA-01 a trusted component in many systems.

The module's installation requirements specify maintaining humidity levels between 5-95% non-condensing and ensuring storage temperatures between -40°C and +85°C when not in use. These specifications support reliable operation in diverse industrial conditions.

Technical Data

• Model Number: LDSTA-01 63940143B
• Module Type: Analog Input Module
• Manufacturer: ABB
• Condition: Brand New
• Weight: 1.22 kg
• Dimensions: 24 x 19 x 5.3 cm
• HS CODE: 8537101190
• Product Origin: Sweden
• Power Supply: 24V DC
• Power Consumption: 3-8 watts
• Protection Level: 500-1500V AC electrical isolation
• Operating Temperature Range: -25°C to +70°C
• Storage Temperature Range: -40°C to +85°C
• Humidity Range: 5-95% (non-condensing)

Typical Applications

The ABB LDSTA-01 63940143B Analog Input Module is suitable for:

• Thyristor control systems for enhanced power control.
• Power management applications requiring precise status monitoring.
• Industrial automation systems that benefit from reliable operational data.
• Integration into various control architectures across multiple sectors.

FAQ

1. What is the weight of the LDSTA-01 module?
   The module weighs 1.22 kg.

2. What are the dimensions of the LDSTA-01?
   Its dimensions are 24 x 19 x 5.3 cm.

3. What is the power consumption of the LDSTA-01?
   It consumes between 3 and 8 watts.

4. What is the operating temperature range for this module?
   It operates effectively from -25°C to +70°C.

5. What type of protection does the LDSTA-01 offer?
   It has electrical isolation protection rated at 500-1500V AC.
