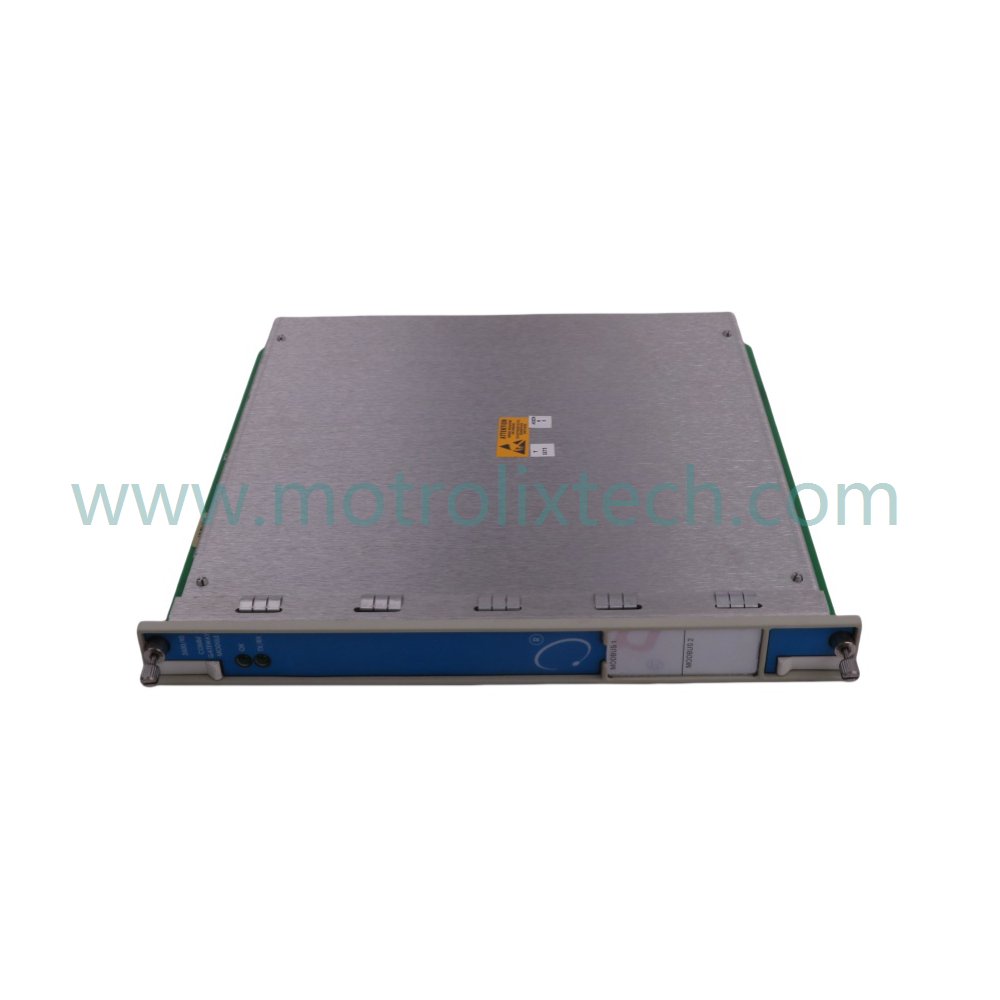

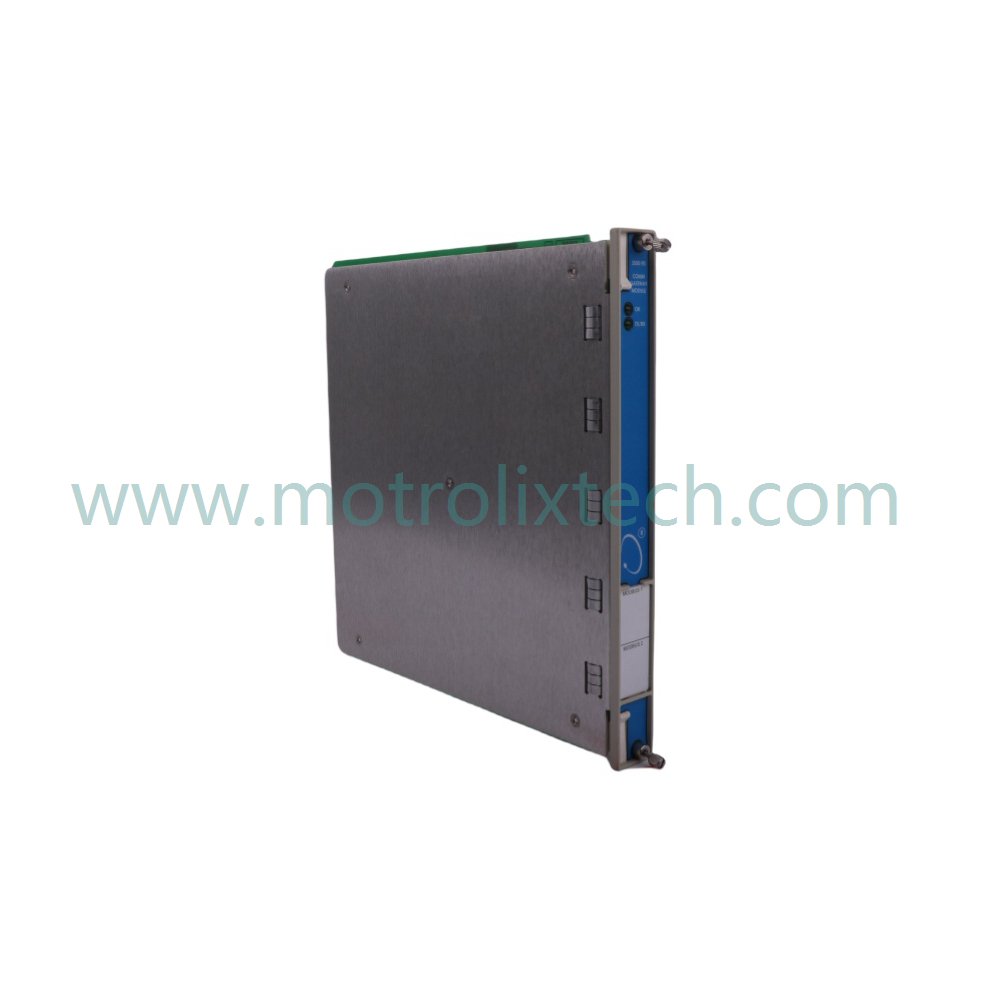

The Bently Nevada 3500/90 Communication Gateway Module is a critical component designed for industrial machinery protection systems. Its primary function is to provide reliable power to the entire 3500 monitoring platform, ensuring consistent performance even in demanding environments. Specifically engineered for continuous use in power plants and refineries, the 3500/90 plays an essential role in sustaining the functionality and reliability of vibration monitoring and protection modules, thereby enhancing operational safety and efficiency.

Technical Specifications

• Model Number: 3500/90

• Module Type: Communication Gateway Module

• Manufacturer: Bently Nevada

• Condition: Brand New

• Weight: 0.8 kg

• Dimensions: 2.6 cm x 25.3 cm x 24 cm

• HS CODE: 8537101190

• Product Origin: USA

• Lead Time: In Stock

• Minimum Order Quantity (MOQ): 1

• System Compatibility: TSI

Model Code Breakdown

The model number 3500/90 contains specific details about its functionality and design:

• 3500: Indicates that this module is part of the Bently Nevada 3500 series, known for its comprehensive monitoring solutions in industrial applications.

• 90: Specifies the function of the module as a communication gateway, crucial for facilitating communication and power distribution within the monitoring platform.

Installation Recommendations and Wiring Guide

To ensure optimal performance of the Bently Nevada 3500/90 Communication Gateway Module, the following guidelines should be observed:

1. Installation Location: Install the module in a clean, dry environment that is easily accessible for maintenance and monitoring. Ensure that it is securely mounted according to the manufacturer's specifications.

2. Wiring: Follow standard wiring practices to connect the module to the power supply and existing 3500 series components. Ensure all connections are secure to maintain stable performance.

3. Temperature Considerations: Since it operates efficiently in temperatures ranging from -30°C to +65°C, confirm that the environment does not exceed these limits for optimal functionality.

4. Hot-Swap Procedure: Utilize the hot-swappable design to replace faulty components without needing to shut down the system, ensuring uninterrupted monitoring operations.

FAQ

1. What does the 3500/90 Communication Gateway Module do?
   It provides stable power to the Bently Nevada 3500 monitoring platform, which is crucial for consistent machinery protection.

2. What is the acceptable input voltage range for this module?
   The 3500/90 operates within an input voltage range of 85-264 VAC.

3. Can the 3500/90 be used in extreme temperature conditions?
   Yes, it operates efficiently in temperatures from -30°C to +65°C, making it suitable for harsh industrial environments.

4. How does the hot-swappable design benefit users?
   It allows for easy replacement of components without shutting down the entire monitoring system, minimizing downtime.

5. Is the 3500/90 compatible with existing Bently Nevada systems?
   Absolutely, it integrates seamlessly with existing 3500 series components, making upgrades and new installations straightforward.
