Overview

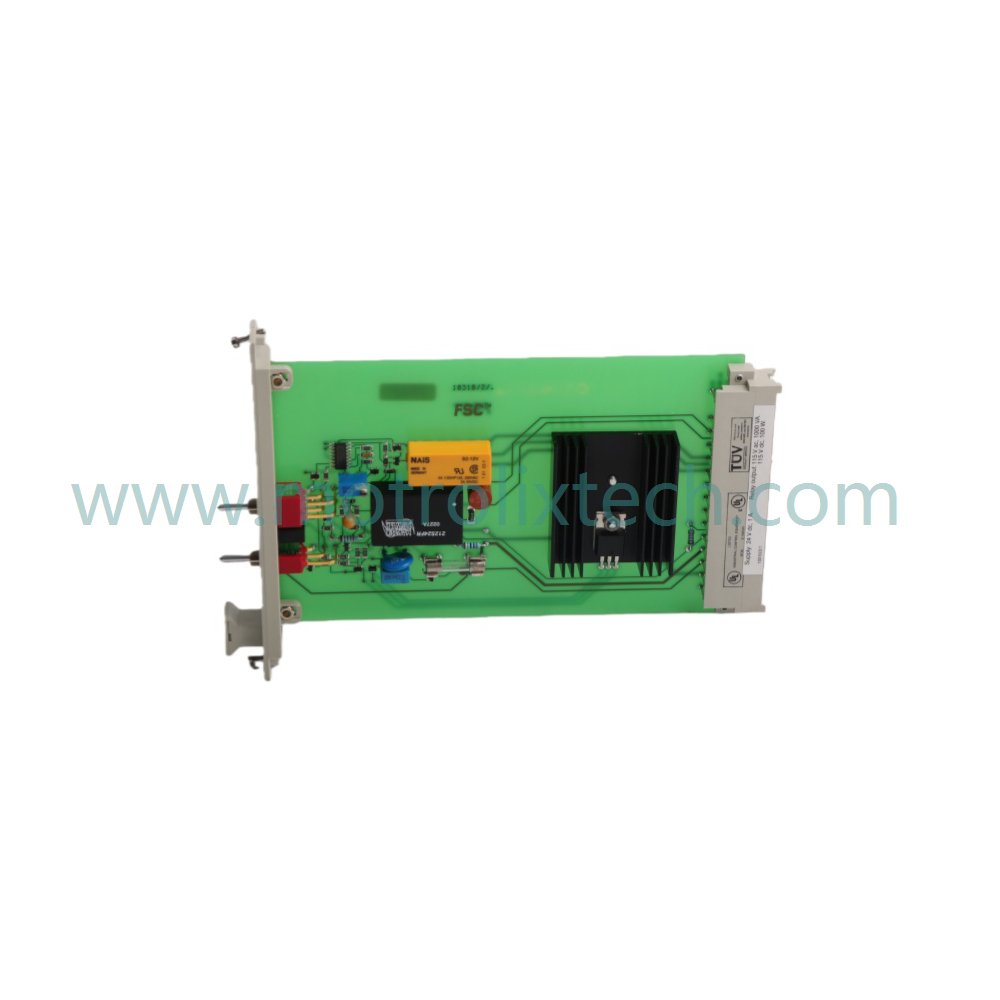

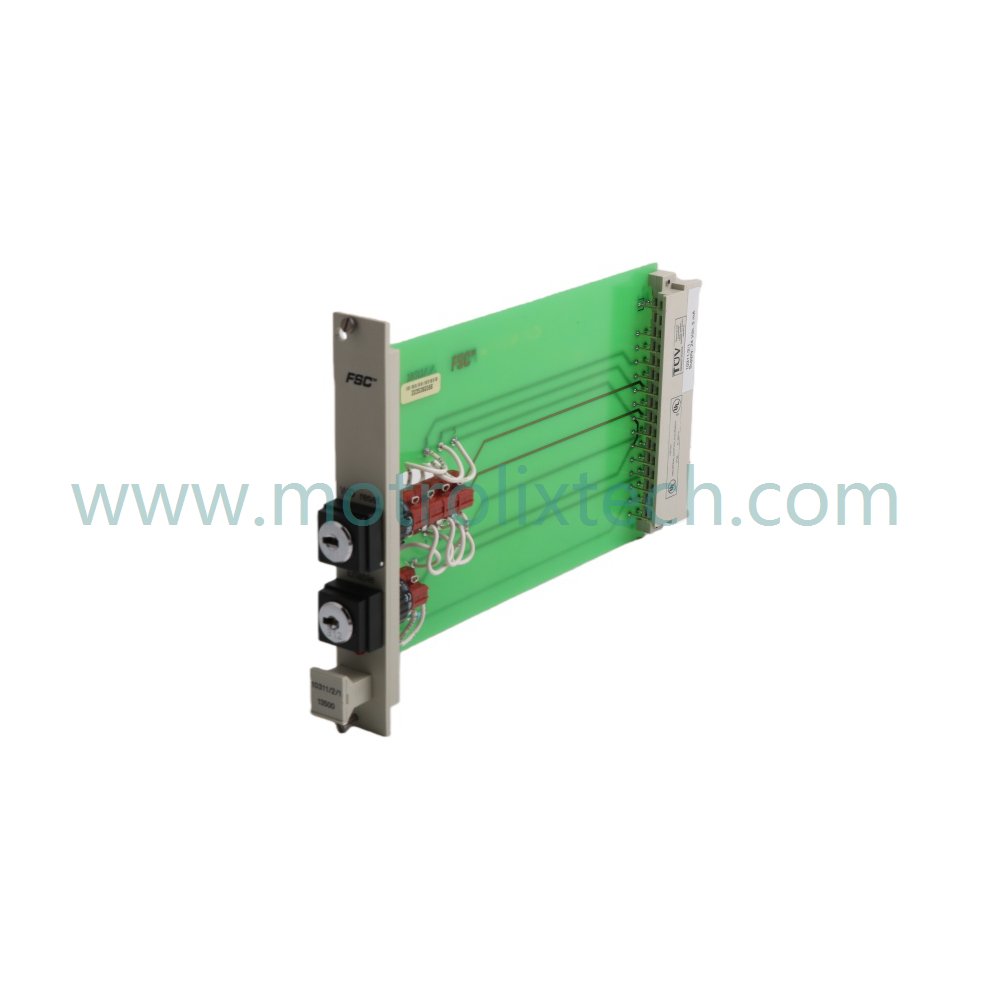

The Honeywell 10314/1/1 FSC Termination Module is a critical non-redundant I/O backplane module designed for the installation of Safety Manager I/O modules within a dedicated rack. This module forms the foundational physical and electrical structure necessary for effective communication between the installed I/O modules and the system's central processing unit. The performance of the 10314/1/1 is essential for the integrity of safety loop signal routing within the control system.

Functional Highlights

Key features and benefits of the Honeywell 10314/1/1 include:

• Robust Communication Structure: The module provides a horizontal bus structure that facilitates reliable communication among I/O modules and the central processing unit.
• Ten Connectors: Equipped with ten connectors (SCN-1 to SCN-10), allowing for secure mounting points of various I/O cards.
• Seamless Integration: The module integrates with the Horizontal Bus Driver via a flat cable, forming a stable communication pathway critical for time-sensitive safety functions.
• Specific Configuration Requirements: Requires jumper settings for operational parameters, ensuring optimal performance and signal integrity.

Key Benefits

• Deterministic Data Exchange: Ensures timely and accurate communication for safety functions, which is crucial in process safety applications.
• Stable Platform for I/O Modules: Serves as a reliable foundation for both digital and analog I/O modules, improving system reliability.
• Optimal Signal Integrity: Proper installation in designated slots maintains the integrity of safety-critical signals, which is vital for overall system architecture.

Technical Data

• Model Number: 10314/1/1
• Module Type: FSC Termination Module
• Manufacturer: Honeywell
• Condition: Brand New
• Weight: 0.4 kg
• Dimensions: 7 cm x 14 cm x 14.5 cm
• HS CODE: 8537101190
• Product Origin: USA
• Lead Time: In Stock
• Minimum Order Quantity (MOQ): 1

Typical Applications

The Honeywell 10314/1/1 is suitable for:

• Industrial control systems where safety management is essential.
• Process industries requiring a reliable backplane for safety I/O modules.
• Applications in manufacturing, oil and gas, and other sectors needing high reliability for safety-critical functions.

Support & Maintenance

Honeywell offers extensive support for the 10314/1/1 FSC Termination Module. Assistance with installation, configuration, and troubleshooting is available to ensure optimal performance in your safety management systems.

FAQ

1. What is the primary function of the Honeywell 10314/1/1 FSC Termination Module?
   It serves as a backplane module for connecting Safety Manager I/O modules within the control system.

2. How many connectors does the module have?
   The module features ten connectors, allowing for secure mounting of various I/O cards.

3. What type of communication does the module support?
   It provides a horizontal bus structure for reliable communication between the I/O modules and the central processing unit.

4. Is the 10314/1/1 suitable for high-reliability applications?
   Yes, its design ensures deterministic data exchange, which is crucial for safety-critical functions.

5. What kind of support does Honeywell provide for this module?
   Honeywell offers installation and technical support to help users achieve optimal system performance.
