Overview

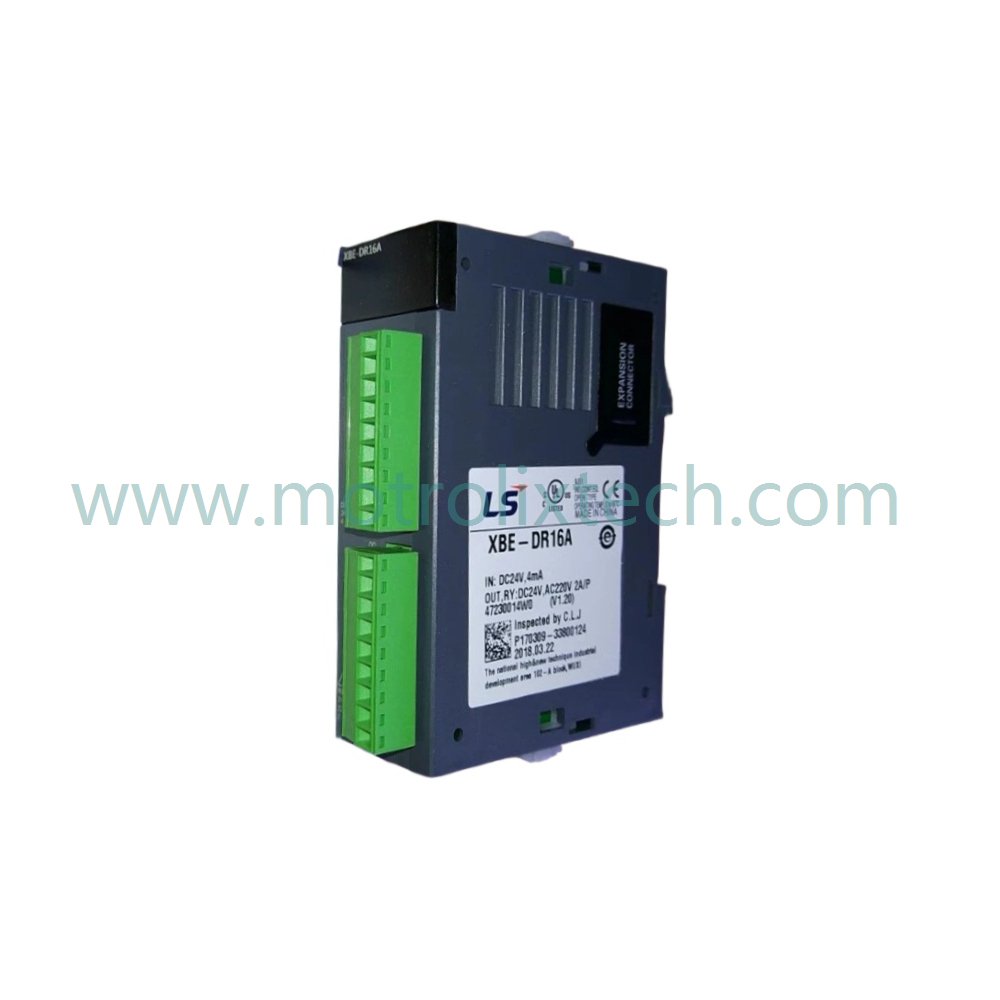

The Honeywell MLE-DR16A Digital Input Module is a compact and efficient digital I/O module designed for use with the MasterLogic-50 PLC system. This module combines both digital input and output functions, providing a versatile solution for a wide range of industrial automation tasks. With 8 digital inputs and 8 relay-based digital outputs, both operating at 24 VDC, the MLE-DR16A is ideal for various control and monitoring applications.

Functional Highlights

Key features of the MLE-DR16A include:

• High Reliability: Designed with photo coupler insulation, the module protects the system from electrical noise and enhances operational stability.
• Voltage Range: Rated input voltage is 24 VDC, with a current of 4 mA. The operational range extends from 20.4 VDC to 28.8 VDC.
• Defined Input Thresholds: The “On” state requires a minimum of 19 VDC at 3 mA, while the “Off” state is recognized at or below 6 VDC at 1 mA.
• Input Resistance: The module features an input resistance of 5.6 kΩ, ensuring stable performance and minimizing the risk of faulty signals.

Weighing just 0.4 kg, the MLE-DR16A is easy to install and integrates seamlessly with MasterLogic ML50 PLCs, allowing for scalable and flexible control systems. Its design is ideal for demanding industrial environments where precision and consistency are crucial, helping to minimize downtime and support efficient operations.

Key Benefits:

• Versatile digital I/O capabilities simplify integration into various control systems.
• Compact design allows for easy installation without compromising durability.
• Reliable operation minimizes system interruptions and enhances productivity.
• Supports efficient management of digital signals, contributing to greater operational efficiency.

Technical Data

• Model Number: MLE-DR16A
• Module Type: Digital Input Module
• Manufacturer: Honeywell
• Condition: Brand New
• Weight: 0.4 kg
• Dimensions: 7 x 14 x 14.5 cm
• HS CODE: 8537101190
• Product Origin: USA
• Lead Time: In Stock
• Minimum Order Quantity (MOQ): 1
• Input Voltage: DC 24V
• Input Current: 4 mA
• Operating Voltage Range: DC 20.4V to 28.8V
• Ripple Rate: Less than 5%
• Input Resistance: 5.6 kΩ

Typical Applications

The Honeywell MLE-DR16A is ideal for:

• Industrial automation systems requiring reliable digital I/O management.
• Implementation in MasterLogic ML50 PLC control systems.
• Control applications in manufacturing, process monitoring, and building automation.

Support & Maintenance

Honeywell provides comprehensive support for the MLE-DR16A Digital Input Module. Our dedicated team is available for installation, configuration, and troubleshooting to ensure optimal performance in your system.

FAQ

1. What is the weight of the Honeywell MLE-DR16A Digital Input Module?
   The weight is 0.4 kg.

2. What are the dimensions of this module?
   Its dimensions are 7 x 14 x 14.5 cm.

3. What input voltage does the MLE-DR16A require?
   It operates at a rated input voltage of 24 VDC.

4. How does the input threshold work for this module?
   The “On” state is recognized at 19 VDC or higher, while the “Off” state is at 6 VDC or lower.

5. Is technical support available for the MLE-DR16A?
   Yes, Honeywell offers full technical support for installation and maintenance.
